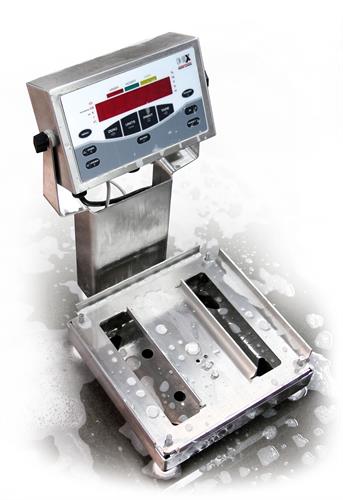

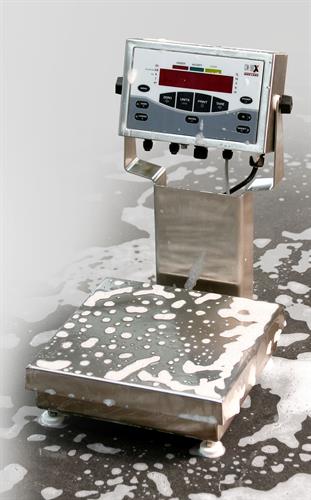

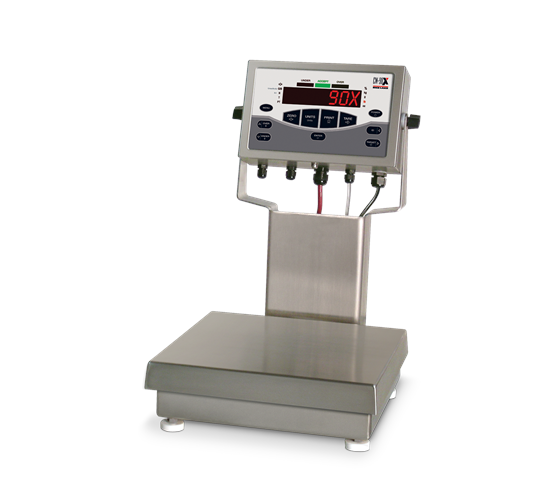

CW-90X Over/Under Washdown Checkweigher

$0.00

Choose Rice Lake’s CW-90X over/under washdown checkweigher for heavy washdown environments and HACCP requirements.

Download product PDF

Features

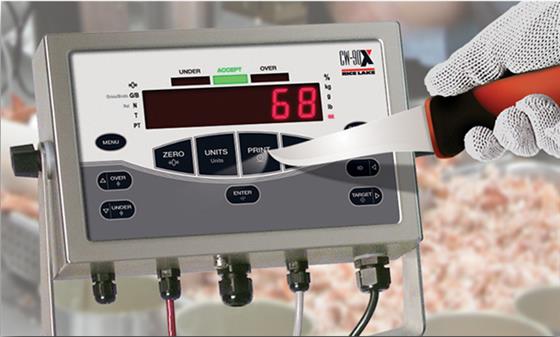

  • Piezo keypad consisting of ZERO, UNITS, PRINT, TARE, OVER, UNDER, ID, TARGET, ENTER, MENU, POWER

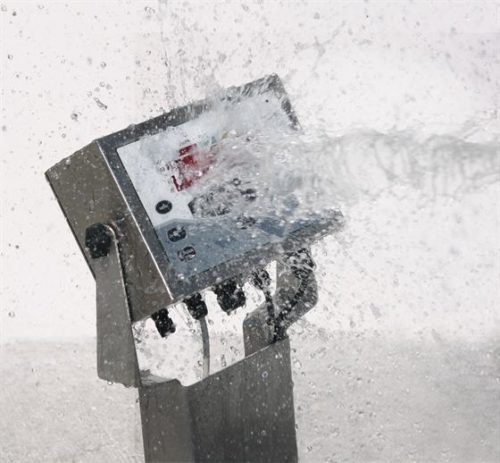

  • 304 stainless steel, IP69K rated indicator
  • PreVent? breather vent
  • Storage for up to 50 IDs
  • Unit of measure: kg, gm, lb, oz, lb/oz (lb/oz is not Legal for Trade)
  • High-intensity LED display
  • Battery backed time and date
  • Two full-duplex RS-232 serial ports
  • Configurable print formats
  • Audit trail tracking
  • Optional communications: Ethernet, USB or fiber-optic
  • Four configurable Digital I/O
  • Reflash memory to upgrade firmware
  • Auto print capability
Scale:
  • IP69K, stainless steel, hermetically sealed load cell
  • 304 stainless steel
  • Five point overload protection

Specifications

Power-AC:
Line voltages:
115/230 VAC
Frequency:
50/60 Hz

Power Consumption:
1.5 A at 115 VAC (8 W),
0.75 A at 230 VAC (8 W)

Measurement Rate:
960, 480, 240, 120, 60, 30, 15, 7.5 per second

System Linearity:
?0.01% full scale

Digital I/O:
Four channels on CPU board

Circuit Protection:
RFI, EMI, ESD protection

Display:
Large 0.8 in, 14-segment, six-digit high-intensity red
LED display

Status Annunciators:
Designators for %, kg, gm, lb, oz, center of zero, G/B, N, T, PT, neg, motion

Operating Temperature:
Legal: 14? F to 104? F (-10? C to 40? C)

Rating/Material:
IP69K, stainless steel

Display Resolution:
100,000 graduations maximum

Load Cell:
IP69K, stainless steel, hermetically sealed

Warranty:
Three-year limited warranty

Approvals:
Indicator:
NTEP CC 08-092, Class III/IIIL 10,000 d
Measurement Canada AM-5710, Class III 10,000 d
OIML R76/2006-GBI-10.02
TC GB-1385
TAC UK2900
UL and CUL listed
CE marked
Scale:
NTEP CC 95-072, Class III 5,000 d
Measurement Canada AM-5082, Class III 5,000 d
NSF

Options

196407 Ind OPT,Ethernet Interface CW90, CW90X List price: $400.00
108671 Ind Opt,Wireless LAN Card WiFi 802.11 A/B for CW90, CW90X, 720i, 820i, iQube2 List price: $570.00
93245 Ind Opt,USB Port for PC Connection, includes 1 meter Type A to mini-B cable List price: $175.00
95357 Cable,USB Type A To USB Mini-B 1 Meter Long List price: $10.00
171968 Cable,RS-232 5-Wire DB-9F to stripped and tinned leads List price: $35.00
96736 Ind Opt,Fiber-Optic Rx/Tx CW90, CW90X, 820i Internal Mount With Bus Power List price: $250.00
78026 Cable,Plastic Optical 100 ft. includes polishing kit List price: $140.00
80892 Cutter, Fiber Optic Disposable, .750 and 1.0mm single and duplex jacket Industrial Fiber Optics #IF-FC2 List price: $9.00
117358 CD,Software Pkg WVault Weighvault for CW90 Version List price: $250.00

Models

Part #?105963 Product DescriptionCKWGHER, CW90X 10×10 5 lb/2.5 kg with 12 inch column 115VAC SST
Part #?105965 Product DescriptionCKWGHER, CW90X 10×10 10 lb/5 kg with 12 inch column 115VAC S
Part #?105966 Product DescriptionCheckWeigher,CW90X 10×10 25 lb/10 kg with 12 inch column 115VAC SST
Part #?105967 Product DescriptionCheckWeigher,CW90X 12×12 25 lb/10 kg with 12 inch column 115VAC SST
Part #?105968 Product DescriptionCheckWeigher,CW90X 12×12 50 lb/25 kg with 12 inch column 115VAC SST
Part #?105969 Product DescriptionCKWGHER, CW90X 12×12 100 lb/50 kg with 12 inch column 115VAC SST
