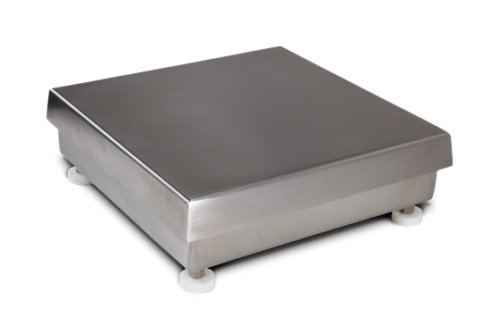

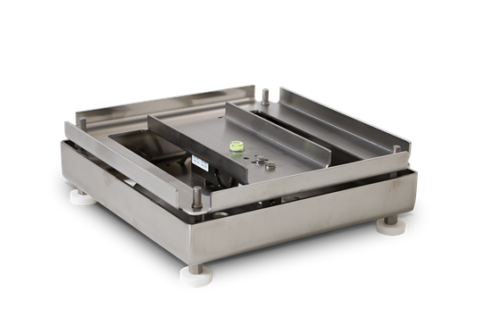

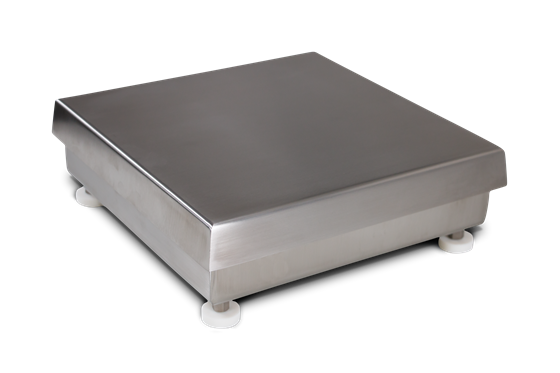

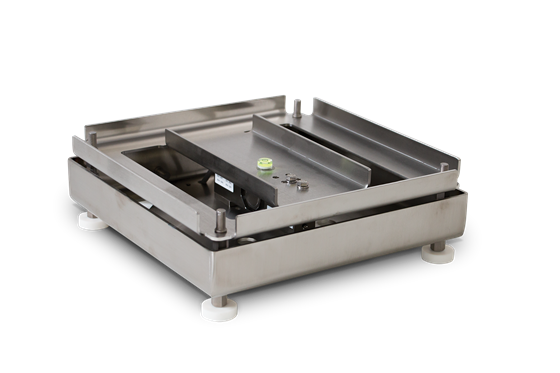

CW-90XB Light-capacity Bench Scale

$0.00

The CW-90XB is engineered according to sanitary design principles (SDP) by reducing areas that hide bacteria and pathogens, and with features that allow ease in extreme sanitation.

Download product PDF
Category:

Features

  • 304 stainless steel construction
  • Five-point overload protection
  • Specially designed adjustable support feet provide exceptional traction and will not scratch surfaces
  • IP69K, stainless steel hermetically sealed load cell

Specifications

Load Cell, NTEP Certified:
IP69K stainless steel and hermetically sealed

Output Impedance:
350 ?

Maximum Overload:
180 to 200% depending on capacity

Overload Protection:
Five-point, independently adjusted

Cable Length:
34 in or 10 ft

Compensated Temperature Range:
14? F to 104? F (-10? C to 40? C)

Warranty:
Three-year limited warranty (includes water ingress)

Approvals:
NTEP CC 95-072, Class III 5,000 d
Measurement Canada AM-5082, Class III 5,000
Load cell is FM approved

Options

112044 Column,12 Inch SST Kit OPT Benchmark, Benchmark (SL/HE), CW-80B, CW-90B, CW-90XB to IQ+210, CW-90I, CW-90XI, 480/482 Legen Series, 680 Synergy Series
112045 Column,18 Inch SST Kit OPT Benchmark, Benchmark (SL/HE), CW-80B, CW-90B, CW-90XB to IQ+210, CW-90I, CW-90XI, 480/482 Legen Series, 680 Synergy Series

Models

10 ft Cable

Part #?112600 Product DescriptionBench Scale ASSY,5lb CW90X 10×10 (Load Cell Cable Length Is 10ft)
Part #?112602 Product DescriptionBench Scale ASSY,10lb CW90X 10×10 (Load Cell Cable Length Is 10ft)
Part #?112604 Product DescriptionBench Scale ASSY,25lb CW90X 10×10 (Load Cell Cable Length Is 10ft)
Part #?112606 Product DescriptionBench Scale ASSY,25lb CW90X 12X12 (Load Cell Cable Length Is 10ft)
Part #?112608 Product DescriptionBench Scale ASSY,50lb CW90X 12×12 (Load Cell Cable Length Is 10ft)
Part #?112610 Product DescriptionBench Scale ASSY,100lb CW90X 12×12 (Load Cell Cable Length Is 10ft)

34 in Cable

Part #?106143 Product DescriptionBench Scale ASSY,5lb CW90X 10×10 (Load Cell Cable Length Is 34 In.)
Part #?106144 Product DescriptionBench Scale ASSY,10lb CW90X 10×10 (Load Cell Cable Length Is 34 In.)
Part #?106145 Product DescriptionBench Scale ASSY,25lb CW90X 10×10 (Load Cell Cable Length Is 34 In.)
Part #?106146 Product DescriptionBench Scale ASSY,25lb CW90X 12X12 (Load Cell Cable Length Is 34 In.) ?
Part #?106147 Product DescriptionBench Scale ASSY,50lb CW90X 12X12 (Load Cell Cable Length Is 34 In.)
Part #?106148 Product DescriptionBench Scale ASSY,100lb CW90X 12X12 (Load Cell Cable Length Is 34 In.)
