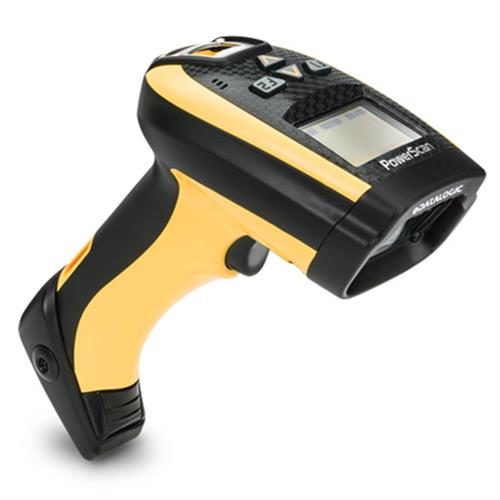

Datalogic PowerScan RF PM9300 Series Laser Scanner

$0.00

The Datalogic PowerScan RF PM9300 Series laser scanner is a multi-point operation allowing for multiple scanner communications to a single base station.

Download product PDF
Category:

Features

  • Scanner is IP65
  • Base station is IP64
  • Wireless operation
  • Operates up to 10 hours on a single charge
  • Datalogic Green spot for good read feedback
  • Polycarbonate molded with rubber
  • Multi-point operation allows for multiple scanner communications to a single?base station

Specifications

Dimensions:
Scanner: 8.4 x 4.5 x 2.8 in
(212 x 109 x 71 mm)
Base Station: 10.5 x 3.5 x 2.5 in
(266.7 x 88.9 x 63.5 mm)
(width is 4.2 in/106.68 mm including mounting knobs)

Weight:
Scanner: 14.2?oz (405.0?g)
Base Station: 16 oz (454 g)

Display:
LCD: 6?lines x 16 characters

Light Source:
VLD between 630-380 nm

Base Station:
US: 110 V?10%, 60 Hz

Communications:
Host: RS-232 with DB9 S, P/S and 12 ft cable.
KBW (keyboard wedge) with P/S and 6 M Din, coiled cable 12 ft.
USB, 12 ft coiled cable

Frequency Range:?(varies by country)
915 mHz

Operating Temperature:
-4?F to 122?F (-20?C to 50?C)

Storage Temperature:
-40?F to 158?F (-40?C to 70?C)

Ingress Protection Rating:
Scanner: IP65
Base station: IP64

Humidity:
0-90% non-condensing

Drop Resistance:
2 m

Battery Type:
Li-Ion 2150 mAh

Electrical:
Complies to C-CSA-US
(60950 Canada and USA)

Warranty:
Three-year limited warranty

Options

Part #104969 Product DescriptionCable,Wedge PM8300-910 Keyboard Wedge Cable, 6 Pin Mini-DIN, PS2 style
Part #108217 Product DescriptionCable,Scanner RS-232 PD7130 8 Foot 9 Pin Female Coiled External Power on Pin 9

Models

Part #?182778 Product DescriptionScanner,PowerScan PM9300 Wireless Scanner Model PM9300-910RB w/o Display, Battery, SR, 915mHZ, RS232 or Keyboard Wedge
Part #?182779 Product DescriptionBase Station,PowerScan PM9300, USB, RS-232/Keyboard Wedge, 110VAC BC9030-910
Part #?190963 Product DescriptionPower Supply,PM9300 12VDC, US Plug, PG12-10P35-US (Includes Power Cord 90ACC1886)
