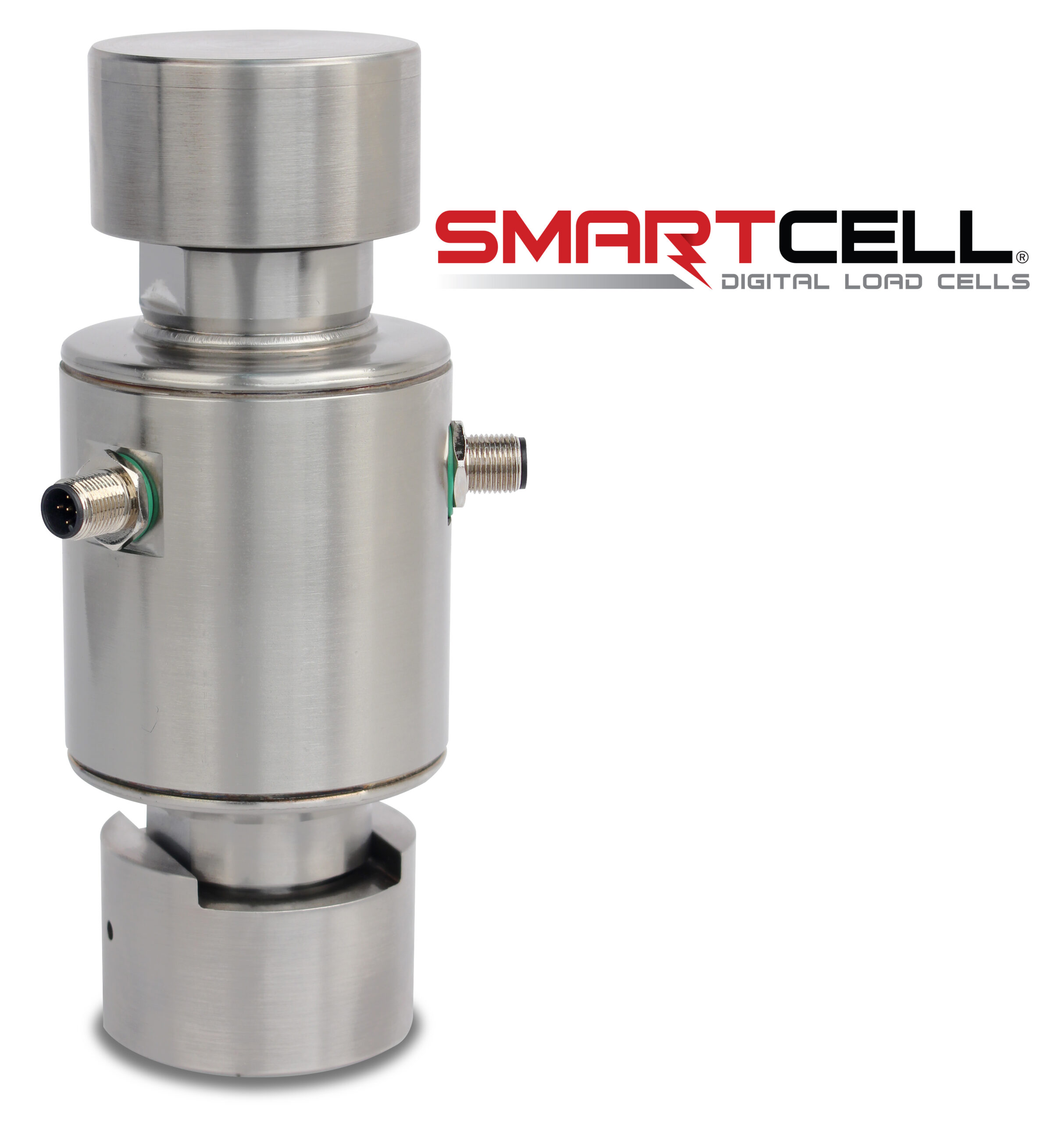

Cardinal Scale’s DC series SmartCell® stainless steel compression digital load cells daisy-chain together for ease of wiring and the cables connect automatically to the load cell. Internal load cell circuitry eliminates the need for a junction box. The OIML-certified DC series come in either 22,700 kg / 50,000 lb or 45,000 kg / 100,000 lb capacities and they include iSite remote diagnostic monitoring software with automatic text/e-mail alerts. The DC series feature SmartCal for easy calibration, anti-rotation, and extra robust upper and lower cups. The stainless steel IP69K-rated DC series may be interchangeable with Cardinal Scale’s SCA load cells for complete digital conversions on vehicle scales and tank/hopper scales. Sense leads are no longer required like in analog load cells since variations in systems voltage no longer affect the load cell.
22700 kg / 50000 lb and 45000 kg / 100000 lb Capacities
Anti-Rotation Mounting
Cables Connect Automatically to Load Cells
Daisy-Chain Cells Together for Ease of Wiring

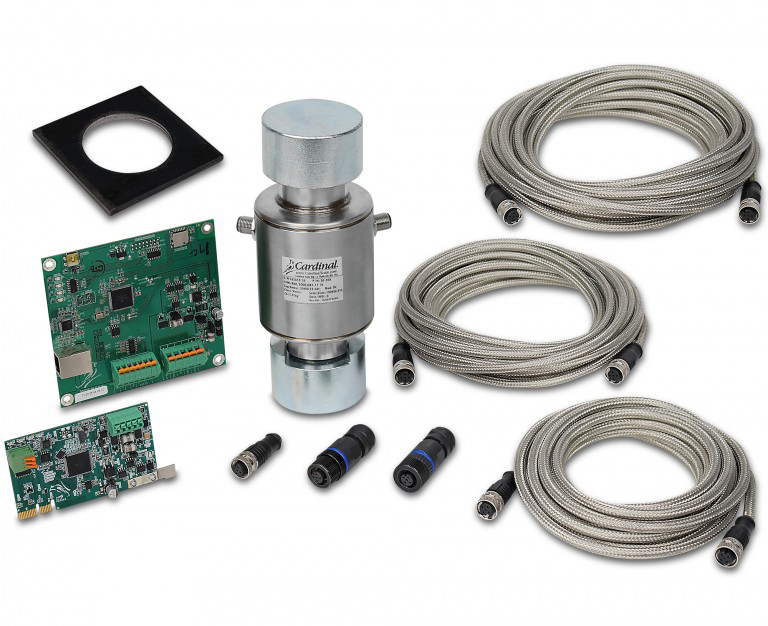

Everything Needed for a Vehicle Scale Minus the Weighbridge
Extra Robust Upper and Lower Cups

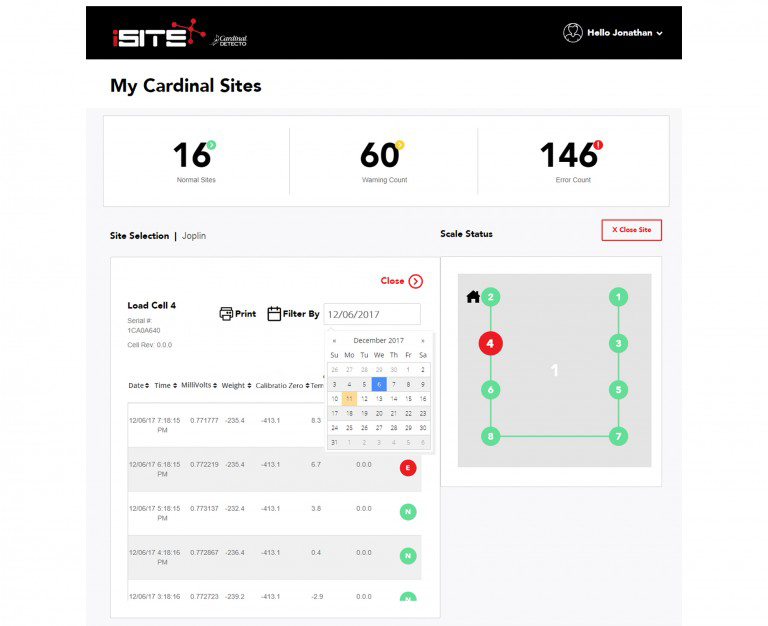

Includes iSite Remote Diagnostics Software with E-mail and Text Alerts
Interchangeable with Cardinal SCA Load Cells for Complete Digital Conversions
IoT-Enabled Digital Load Cells
IP69K Rated for High-Pressure and High-Temperature Washdown Applications
No Junction Box Necessary
Stainless Steel Load Cells
Specifications
Capacity (Model DC-50K): 22,700 kg / 50,000 lb Capacity (Model DC-100K): 45,000 kg / 100,000 lb Cell Type: Digital compression load cell Rated Output: Cardinal digital output Protection Class: IP69K Connectors: 5-Pin, M12 Male, A-Coding OIML Certification: R60/2000-GB1-17.18 Construction: Stainless Steel Includes: iSite remote diagnostic monitoring software with e-mail and text alerts Mounting: Extra robust upper and lower receiver cups Min. Dead Load: 0%Ln Service Load: 120%Ln Safe Load Limit: 200% Rated Capacity Accuracy Class: 4,000 n. OIML Total Error: < ±0.013%Sn Repeatability Error: < ±0.015%Sn Temperature Effect on Zero: < ±0.01%Sn/5 °C Temperature Effect on Sensitivity: < ±0.006 %Sn/5 °C Creep Error (30 Minutes): < ±0.012 %Sn Input Voltage Range: 12 V – 24 V Insulation Resistance: > 5000 MΩ Maximum Deflection: 0.6-1 mm Temperature Compensation: -10 to +40˚C Temperature Limits: -50 to +60˚C (OIML certified up to +40˚C)
Options
0146-B020-08
LOAD CELL LOCATING PLATE FOR XX-SCA CUPS
Call For Pricing
0330-0065-08
LOAD CELL INTERCONNECT CABLE, 15′ (4572mm) 22AWG
Call For Pricing
0330-0066-08
LOAD CELL INTERCONNECT CABLE, 27′ (8230mm) 22AWG
Call For Pricing
0330-0067-08
LOAD CELL END TERMINATOR
Call For Pricing
0330-0443-08
LOAD CELL INTERCONNECT CABLE, 37′
Call For Pricing
225-DLC
Option: 225 Digital Load Cell Interface Card
Call For Pricing
6610-1307
CONN 05 PIN CIRCULAR, M12 5 PIN FEMALE ASSEMBLY TYPE CONNECTOR WITH SOLDER TERMINAL
Call For Pricing
6610-1308
CONN 05 PIN CIRCULAR, M12 5 PIN FEMALE ASSEMBLY TYPE CONNECTOR WITH PUSH-LOCK SPRING CONNECTION
