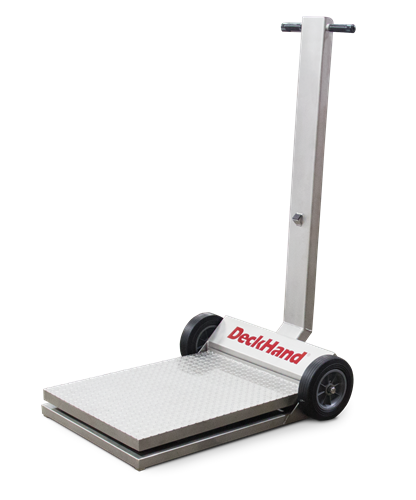

DeckHand? Portable Floor Scale Mild Or Stainless Steel

$0.00

  • Mild or stainless steel wheeled frame, base and mast
  • Diamond tread top plate, mild or stainless steel
  • 500 lb, 1,000 lb, 2,000 lb capacity
  • Large rubber wheels (not rated for IS) simplify movement on uneven floors
  • Two IP67 aluminum load cells
  • Standard indicator mount with integral handles for the 480/480 Plus, 482/482 Plus, 880/880 Plus, and 680 Synergy
Download product PDF
Category:

Features

? Mild or stainless steel frame, base and mast
? Diamond tread top plate, mild or stainless steel
? 500lb, 1,000lb, 2,000lb capacity
? Large rubber wheels (not rated for IS) simplify
movement on uneven floors
? Two IP67 Aluminum load cells
? Standard indicator mount with integral handles for
the IQ plus 590-DC, 480/480 Plus Legend,
and 482/482 Plus Legend

Specifications

End Load Capacity:??100% end loading
mV/V Output:??2mV/V
Cable Length:9 ft 10 in (3m)
Height:
Weighing platter: 4.5 in height when in weigh mode
Column Height:59 in
Warranty:
DeckHand weldment five years, load cells two years,
all other components one year
Approvals:
NTEP Certified, CC 98-004, Class III, 2,500 d
Measurement Canada approved, AM-5218

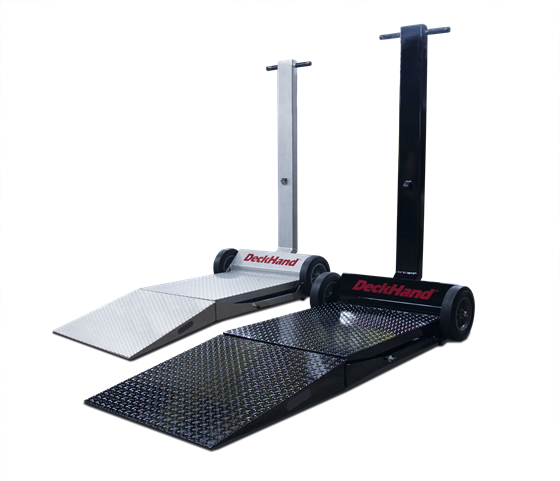

Options

Mild Steel Ramps

43376 Ramp ASSY,DECKHAND 38-3/4×25-1/2×4-3/8 500/1000lb. Steel Painted
43378 Ramp ASSY,DECKHAND 38-3/4×25-1/2×4-3/8 2000lb. Steel Painted

Stainless Steel Ramps

43377 Ramp ASSY,DECKHAND 38-3/4×25-1/2×4-3/8 500/1000lb. SST
43379 Ramp ASSY,DECKHAND 38-3/4×25-1/2×4-3/8 2000lb. SST

Models

Mild Steel

41293 Scale,Portable DECKHAND DH500 30-1/2×24-1/2×4-3/8 500lb 2.5M NTEP III 2.5 Steel Painted
41294 Scale,Portable DECKHAND DH1000 30-1/2×24-1/2×4-3/8 1000lb 2M NTEP III 2 Steel Painted
41295 Scale,Portable DECKHAND DH2000 30-1/2×24-1/2×4-1/2 2000lb 2M NTEP III 2 Steel Painted

Stainless Steel

41296 Scale,Portable DECKHAND DH500SS 30-1/2×24-1/2×4-3/8 500lb 2.5M NTEP III 2.5 SST
41297 Scale,Portable DECKHAND DH1000SS 30-1/2×24-1/2×4-3/8 1000lb 2M NTEP III 2 SST
41298 Scale,Portable DECKHAND DH2000SS 30-1/2×24-1/2×4-1/2 2000lb 2M NTEP III 2 SST
