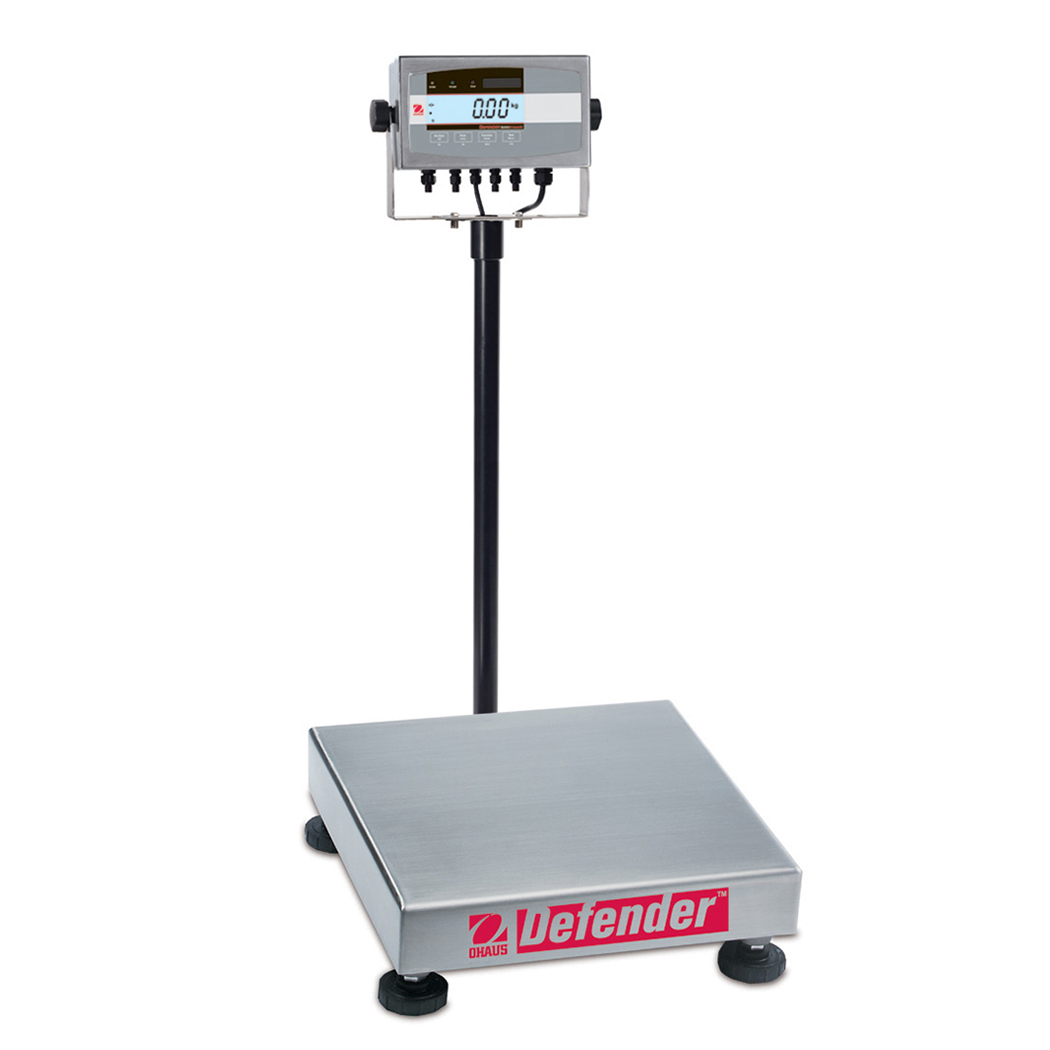

Defender 5000 Hybrid

$0.00

Multifunctional Stainless Steel Bench Scales for Standard Washdown Industrial Applications
  • Defender 5000 features software for parts counting, dynamic weighing, percent weighing, checkweighing, display hold for large containers and can meet traceability requirements.
  • Multiple connectivity capabilities include built-in RS232 bi-directional interface and external input as well as optional RS422/485, second RS232 and AC or DC relay.
  • The durable Defender 5000 has a stainless steel platform, form-and-weld frame, IP67 load cell, column and indicator bracket, as well as an indicator that is also 4X/IP66 rated.
Download product PDF
Categories: ,

Features

  • Applications? Weighing, Parts Counting, Percent Weighing, Checkweighing, Dynamic/Animal Weighing, Display Hold
  • Display? Backlit liquid crystal display (LCD), 3 color checkweighing LEDs
  • Operation? Power cord (included) or rechargeable battery (accessory sold separately)
  • Communication? Easy access communication port including RS232 (included) and 2nd RS232 or RS422/RS485 (accessories sold separately). GLP/GMP data output with real-time clock.
  • Construction? IP66 indicator with hinged front cover, IP67 stainless steel load cell, column, and mounting bracket, 304 grade stainless steel form-and-weld frame
  • Design Features? User-configurable resolution up to 15,000d/3,000e, 150% overload capacity protection, OIML Approved, NTEP Certified and Measurement Canada Approved

Options

AC Relay Kit? 80500720
DC Relay Kit? 80500727
RS422/485 Interface Kit? 80500731
Second RS232 Interface Kit? 80500733
Power Options
Rechargeable Battery Kit, T51P/T51XW? 80500729
Compact Dot Matrix Impact Printer? 80252042
Compact Thermal Printer? 80251992
OHAUS Collect Software 80500746
TAL Software WinWedge? 80850080
Paper for Printer, 80252042 (1 roll)? 80251932
Ribbon for Printer, 80252042? 80251933
RS232 Cable & Adapter, 80252042 Printer to T51XW? 80252574
RS232 Cable, PC 9 Pin to T51XW? 80500552
RS232 Cable, PC 25-pin to T51XW? 80500553

Models

  • Model #:? D51XW15HR1? Maximum Capacity? 30 lb (15 kg)? Readability? 0.002 lb (1 g)? Readability (Certified)? 0.01 lb (5 g)
  • Model #:? D51XW30HR1? Maximum Capacity? 60 lb (30 kg)? Readability? 0.005 lb (2 g)? Readability (Certified)? 0.02 lb (10 g)
  • Model #:? D51XW60HR1? Maximum Capacity? 150 lb (60 kg)? Readability? 0.01 lb (5 g)? Readability (Certified)? 0.05 lb (20 g)
  • Model #:? D51XW60HL2? Maximum Capacity? 150 lb (60 kg)? Readability? 0.01 lb (5 g)? Readability (Certified)? 0.05 lb (20 g)
  • Model #:? D51XW100HL2? Maximum Capacity? 250 lb (100 kg)? Readability? 0.02 lb (10 g)? Readability (Certified)? 0.1 lb (50 g)
  • Model #:? D51XW150HX2? Maximum Capacity? 300 lb (150 kg)? Readability? 0.02 lb (10 g)? Readability (Certified)? 0.1 lb (50 g)
  • Model #:? D51XW300HX2? Maximum Capacity? 600 lb (300 kg)? Readability? 0.05 lb (20 g)? Readability (Certified)? 0.2 lb (100 g)
