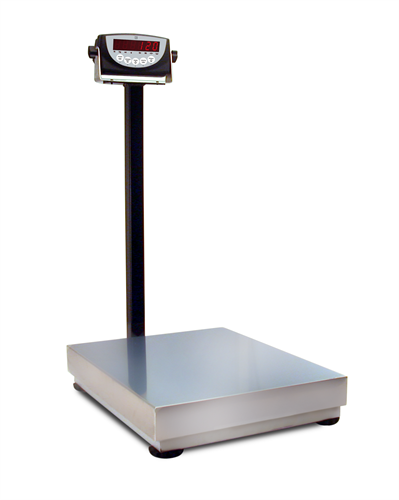

DIGI Bench Scale and Indicator Package

$0.00

The DIGI bench scale and indicator combination provides the durability of DIGI’s bench scales with the ultimate readability of a user-friendly indicator.

Download product PDF
Category:

Features

  • Large 0.8 in (20.3 mm) six-digit red LED or LCD display
  • 115-230 VAC
  • EPD and printer port for connecting to a PC or printer
  • Programmable print output strings
  • Available in 150 lb/60 kg, 300 lb/150 kg, 500 lb/300 kg capacities
  • Selectable unit of measure lb/kg/g/oz
  • Carbon steel platform, stainless steel platter (STL)

Specifications

Power:
Line voltages: 115-230

Frequency:
50 or 60 Hz

Serial Output:
EDP port: Full duplex RS-232
Printer port: Output-only RS-232 or active 20 mA current loop
Both ports: 9600, 4800, 2400, 1200, 600, 300 bps; 7 or 8 data bits; even, odd or no parity

Display:

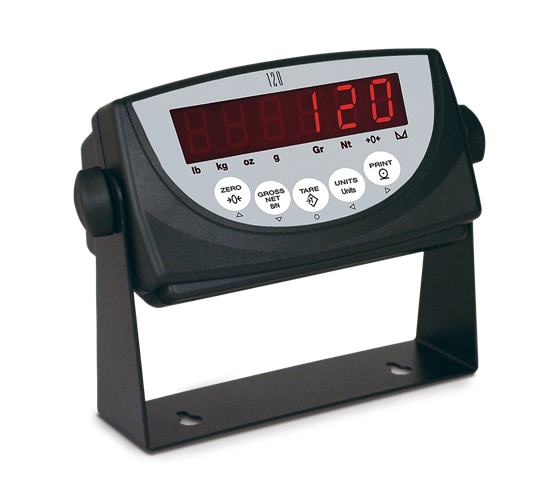

0.8 in (20 mm), six-digit super red light emitting diode (LED) display, seven-segment digits

Status Annunciators:
Designators for: center of zero, stand still, gross, net center of zero, standstill,
lb, kg, oz, g
*Battery, setpoint 1 and 2, HI-0K-LO, Hold

Keyboard:?
Five-key flat membrane panel, tactile feel

Operating Temperature:
Legal: 14? F to 104? F (-10? C to 40? C)
Industrial: 14? F to 122? F (-10? C to 50? C)

Rating/Material:
Enclosure: heavy gauge ABS

Warranty:
One-year limited warranty

Scale Approvals:
NTEP CC 02-111, Class III 5,000 d
Measurement Canada AM-5393, Class III 5,000 d (500 lb/300 kg only)

Indicator Approval:
NTEP CC 03-059, Class III/IIIL 10,000 d
Measurement Canada AM-5517, Class III/IIIHD 10,000 d

Models

Part #?83303Product DescriptionScale PKG,Digi S-TL 150lb/60kg Carbon Steel Platform w/120 Indicator (115-230VAC wall adapter), Painted Steel Column, Factory Calibrated

Part #?83304Product DescriptionScale PKG,Digi S-TL 300lb/150kg Carbon Steel Platform w/120 Indicator (115-230VAC wall adapter), Painted Steel Column, Factory Calibrated
