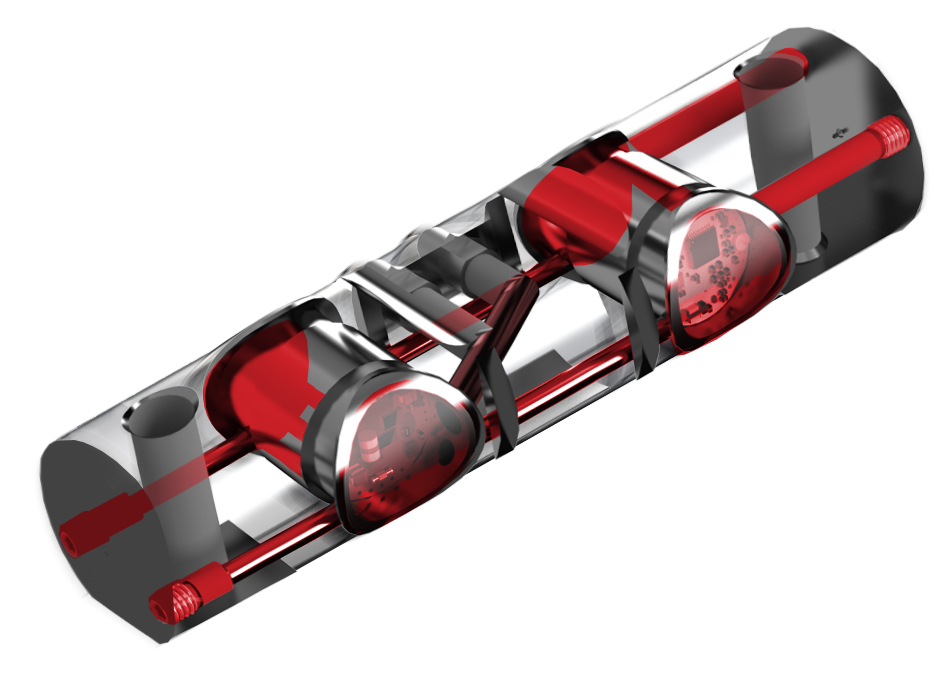

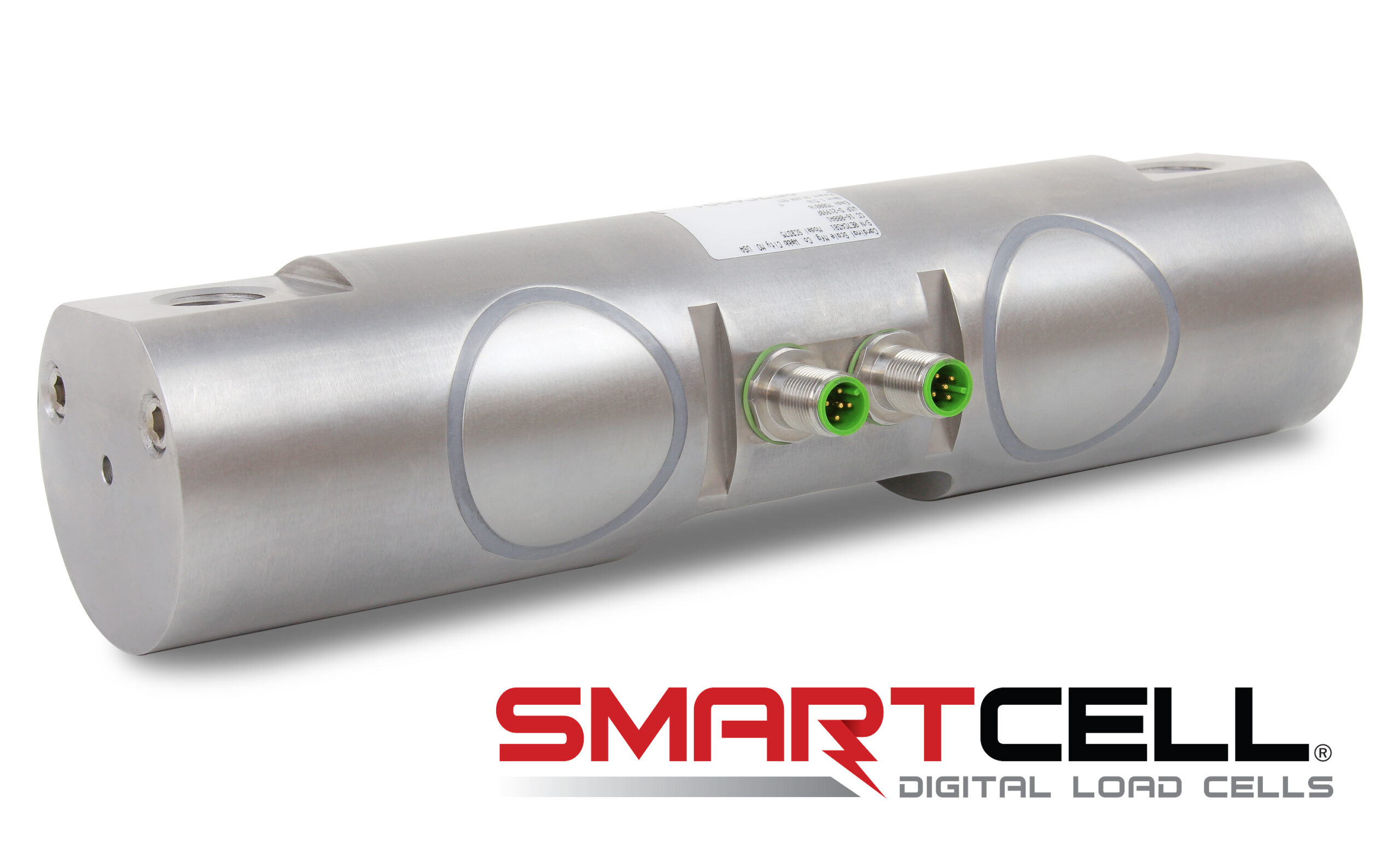

Cardinal Scale’s SCBD series SmartCell® stainless steel digital load cells proven technology internally calibrates, promoting linear calibration to full capacity, and eliminating the error curve for voltage. Messy, time-consuming wiring is no longer necessary—cables connect automatically to the load cell. An added bonus for such a simple cell-to-cable design is load cells are linked directly to one another, yielding a more convenient system. Internal cell circuitry eliminates the need for a junction box. Each IP69K-rated waterproof stainless steel load cell is completely encapsulated and filled with a potting compound to fill all internal voids and prevent any potential for moisture entering the load cell. This internal potting method is patented and Cardinal Scale is the only load cell manufacturer to offer this extensive of waterproofing protection. No external checking is necessary.
Capacities from 34,000 kg / 75,0000 lb to 45,000 kg / 100,000 lb
Daisy-Chain Cells Together for Ease of Wiring
Digital Double-Ended Shear Beam

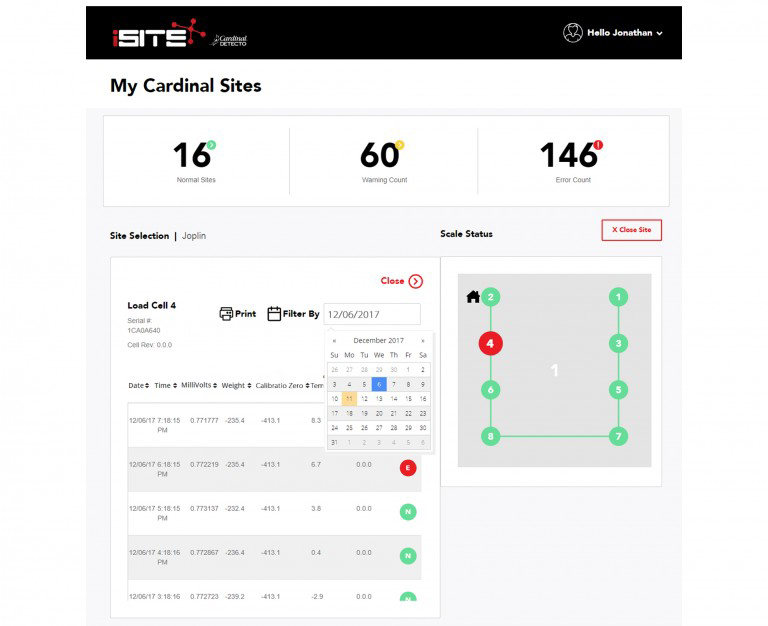

Includes iSite Remote Diagnostics Software with E-mail and Text Alerts
IoT-Enabled Digital Load Cells
IP69K-Rated Waterproof
Mounts on Ball Receiver Cup Load Cell Stand
No External Checking Necessary
No Junction Box Necessary
OIML and NTEP Certified
Stainless Steel Load Cells
Specifications
Capacity (Model SCBD75): 34,000 kg / 75,000 lb Capacity (Model SCBD100): 45,000 kg / 100,000 lb Cell Type: Digital double-ended shear beam Potting: Completely encapsulated and filled with a potting compound to fill all internal voids and prevent any potential for moisture entering the load cell and causing premature failure Rated Output: Cardinal digital output
Protection Class: IP69K rated Connectors: 5-Pin, M12 Male, A-Coding Safe Load: 150% rated capacity Temperature Range: -10ºC to +60ºC / +14ºF to +140ºF (OIML and NTEP certified up to +40ºC / +104ºF) NTEP Certification: 16-088A1 OIML Certification: R60/2000-GB1-17.17 Country of Origin: USA Accuracy Class: IIIL Construction: Stainless steel Includes: iSite remote diagnostic monitoring software with e-mail and text alerts Mounting: Mounts into Cardinal axis brand ball receiver cup load cell stand Options: 225D digital indicator, digital load cell option card, ball bearing, load cell interconnect cable, load cell end terminator, and screw and solder terminal connectors for homerun cable Warranty: 1 year
Options
0330-0048-08
LOAD CELL CUP RECEIVER
Call For Pricing
0330-0050-08
BOTTOM CUP
Call For Pricing
0330-0065-08
LOAD CELL INTERCONNECT CABLE, 15′ (4572mm) 22AWG
Call For Pricing
0330-0066-08
LOAD CELL INTERCONNECT CABLE, 27′ (8230mm) 22AWG
Call For Pricing
0330-0067-08
LOAD CELL END TERMINATOR
Call For Pricing
0330-0125-18
LOAD CELL PIVOT PLATE
Call For Pricing
0330-0443-08
LOAD CELL INTERCONNECT CABLE, 37′
Call For Pricing
0331-0107-0A
7” LOAD CELL STAND WELDMENT
Call For Pricing
225-DLC
Option: 225 Digital Load Cell Interface Card
Call For Pricing
6010-00001
BALL BEARING, 2.0 DIA GRADE 1000, 52100 Chrome
Call For Pricing
6610-1307
CONN 05 PIN CIRCULAR, M12 5 PIN FEMALE ASSEMBLY TYPE CONNECTOR WITH SOLDER TERMINAL
Call For Pricing
6610-1308
CONN 05 PIN CIRCULAR, M12 5 PIN FEMALE ASSEMBLY TYPE CONNECTOR WITH PUSH-LOCK SPRING CONNECTION
