Features
- 1 RS232 Serial Port
- 19 x 28-in Platform
- 5-in-diameter Wheels
- NTEP Legal for Trade
Digital Portable
$0.00

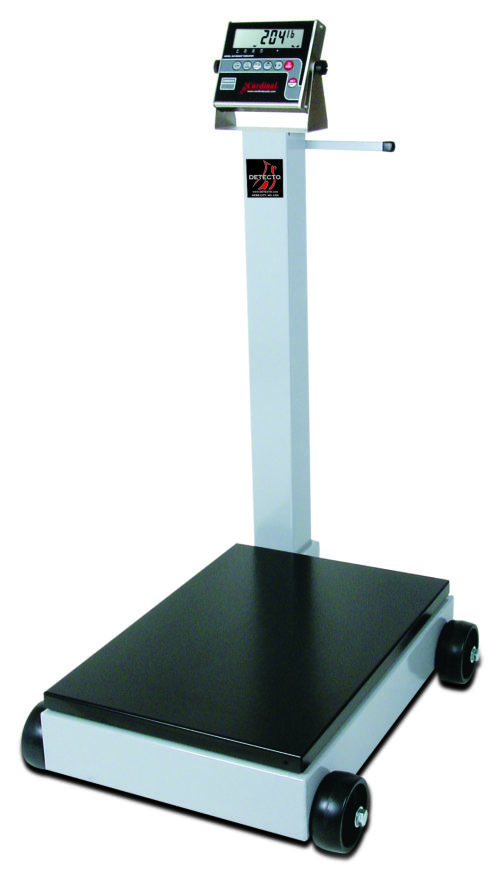

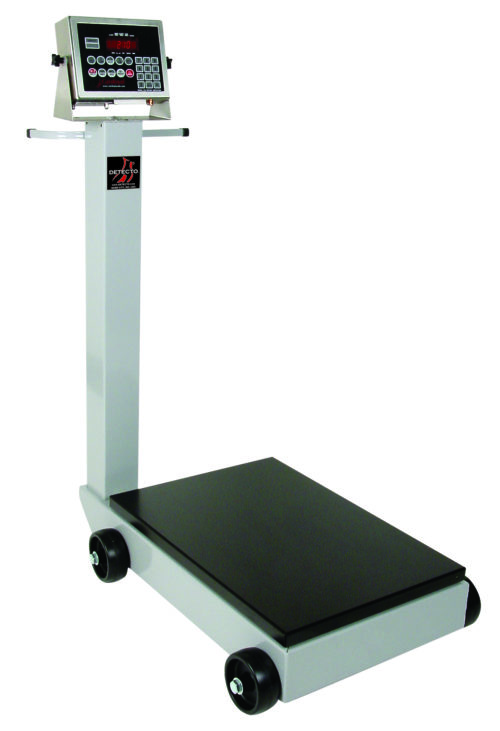

Portable and attractive, these digital portable scales with 5-inch-diameter rubolene wheels let the weighing come to you. With a platform size of 19 x 28-inches, and capacities of 500 or 1,000 lbs, there is very little these scales aren?t capable of weighing. Models are equipped with either a 190, 204, 205, or 210 digital weight indicator having push button tare, pounds/kilograms conversion, and RS232 serial output. NTEP legal-for-trade certified.
Specifications
Capacity (5852F):?500 lb x .2 lb / 220 kg x .1 kg
Capacity (8852F):?1,000 lb x .5 lb / 440 kg x .2 kg
Platform Size:?19 in x 28 in / 483 mm x 711 mm
Wheels:?Large 5 in (127 mm) diameter heavy-duty rubolene
Shipping Weight:?108 lb / 49 kg
Indicator:?Cardinal Model 204 – 6-digit, 7-segment LCD 1 in (25 mm) high
Annunciators:?Zero, gross, tare, net, low battery
Indicator Dimensions:?8 in W x 6.625 in H x 2.125 in D (204 mm W x 168 mm H x 54 mm D)
Indicator Housing:?Stainless steel
Units:?Pounds, kilograms, ounces, grams, or pounds/kilograms
Indicator Keyboard:?7 keys
Power:?6
Sample Rate:?1 – 50 sample per second, selectable
Resolution:?1 part in 100,000 displayed 1 part in 1,000,000 internal
I/O:?1 bidirectional RS232 (20mA) 1 output only RS232 (20mA)
Indicator:?Cardinal Model 210 – 6-digit, 7-segment, .6
Annunciators:?Zero, gross, tare, net, low battery, stable, lb, oz, kg, g, t, T, PWC-1/under, PWC-2/accept, and PWC-3/over
Indicator Dimensions:?9 in W x 7 in H x 2.75 in D (229 mm W x 178 mm H x 70 mm D)
Indicator Housing:?IP66 Stainless steel
Cover, Base, and Indicator Mount:?Stainless Steel
Units:?Pounds, kilograms, ounces, grams, or pounds/kilograms
Indicator Keyboard:?22 keys
Power:?90 to 260 VAC, 50 or 60 Hz and optional camcorder battery CAM-350 type
Sample Rate:?1 – 50 sample per second, selectable
Resolution:?1 part in 100,000 displayed 1 part in 1,000,000 internal
I/O:?1 bidirectional RS232 (20mA) 1 output only RS232 (20mA)
NTEP Approval:?88-106A1
Models
 |
5852F-210 | Portable Scale, Electronic, 500 Lb Capacity, 210 Indicator | |||
 |
5852F-205 | Portable Scale, Electronic, 500 Lb Capacity, 205 Indicator | |||
 |
8852F-205 | Portable Scale, Electronic, 1000 Lb Capacity, 205 Indicator | |||
 |
5852F-204 | Portable Scale, Electronic, 500 Lb Capacity, 204 Indicator | |||
 |
8852F-204 | Portable Scale, Electronic, 1000 Lb Capacity, 204 Indicator | |||
 |
5852F-190 | Portable Scale, Electronic, 500 Lb Capacity, 190 Indicator | |||
 |
8852F-190 | Portable Scale, Electronic, 1000 Lb Capacity, 190 Indicator |
