Digital Portable

$0.00

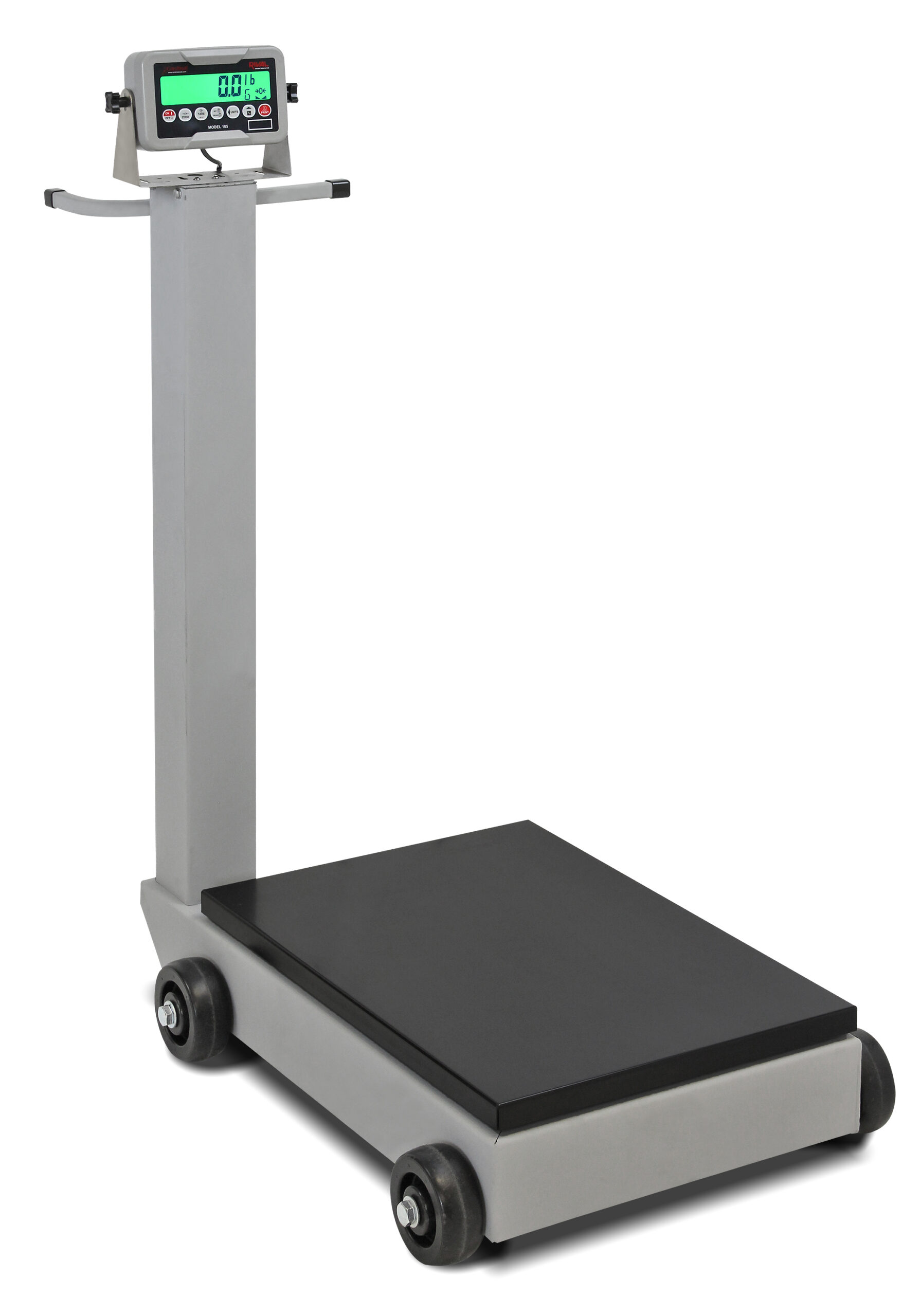

These legal-for-trade portable floor scales let the weighing come to you. The 5852F/8852F series is adaptable for versatile use in receiving departments, inventory management, commercial foodservice, in-plant weighing, material handling, bag filling, and general weighing applications. The scales are lightweight and easy to maneuver with their four large rubolene wheels. Switch easily between pounds and kilograms readouts. These scales provide cost-effective digital solutions for commercial utility scale applications. Enjoy digital speed and precision with your choice of weight indicators to suit your specific application’s needs. Models are available in either 500 lb x 0.2 lb / 220 kg x 0.1 kg or 1,000 lb x 0.5 lb / 440 kg x 0.2 kg capacity.

The scales’ weight indicators come with either 1-inch-high backlit LCD or 0.6-inch-high red LED, depending on the model selected. The stainless steel indicator mounting bracket lets you adjust the angle of the weight indicator where it’s easiest to read. Some models offer ticket printing capabilities when connected to a printer and others offer checkweighing mode. The -185B and -190 models have battery options for complete portability. The -185B models can be powered by six standard, off-the-shelf AA Alkaline or rechargeable Ni-Cad or NiMH batteries. The -210 models have a full alphanumeric keypad allowing manual input of tare weights and IDs.

The column-mounted indicator allows plenty of room to see the weight display over items on the scale platform. Select from your choice of four different Cardinal Scale digital weight indicators, depending on your application. Guide handles provide steering for the platform scale during transport. It’s easy to maneuver, even in tight places. There is an integrated bubble level for finding the most level surface to provide accurate weighing. Easily roll the 5852F/8852F scale wherever it’s needed in your facility. Bring your scale to the location it’s needed!

Download product PDF
Category:

Features

  • 2 capacities and 4 different weight indicators available
  • Constructed entirely of heavy-duty welded steel
  • Electrostatic powder paint coating for long life
  • 19 in W x 28 in D / 48 cm W x 71 cm D platform
  • Battery power available on some models
  • 8 different models available to choose from (listed on back page)
  • NTEP and Measurement Canada certified (8852F is not Measurement Canada approved)
  • 5 in / 13 cm diameter rubolene wheels for maneuverability
  • Units switching from metric to avoirdupois (lb)
  • Use in receiving, agriculture, warehousing, or general industrial weighing
  • Also available in 854F series weighbeam models for intrinsically-safe applications
  • Dependable, rugged, and durable for years of commercial weighing use

Specifications

5852F-185B



Capacity: 500 lb x 0.2 lb / 220 kg x 0.1 kg
Platform Dimensions: 19 in W x 28 in D / 48 cm W x 71 cm D
Overall Dimensions: 24.1 in W x 35 in D x 48.8 in H / 61.2 cm W x 88.9 cm D x 124 cm H
Power: 6 AA batteries (not included) or 12 VDC at 1A AC power adapter
Platform, Base, and Column: Mild steel with gray and black powder coat paint
Wheels: 5 in / 13 cm diameter x 2 in / 5 cm depth rubolene with 550 lb load rating
Net Weight: 105 lb / 48 kg
Shipping Weight: 115 lb / 52 kg
Certifications: NTEP, Measurement Canada
Country of Origin: USA
UPC Code: 809161321807
Weight Indicator: 185B
Power Requirements: 6 AA batteries
Battery Power Optional: Battery operation is standard
Indicator Enclosure Construction: ABS
Indicator IP Rating: IP66
Features: Counting, Pushbutton Tare, 1 RS232 Serial Port
Display Type: 1-in-high backlit green LCD
Number of Keys/Keypad Type: 7-key membrane

8852F-185B

Capacity: 1,000 lb x 0.5 lb / 440 kg x 0.2 kg
Platform Dimensions: 19 in W x 28 in D / 48 cm W x 71 cm D
Overall Dimensions: 24.1 in W x 35 in D x 48.8 in H / 61.2 cm W x 88.9 cm D x 124 cm H
Power: 6 AA batteries (not included) or 12 VDC at 1A AC power adapter
Platform, Base, and Column: Mild steel with gray and black powder coat paint
Wheels: 5 in / 13 cm diameter x 2 in / 5 cm depth rubolene with 550 lb load rating
Net Weight: 105 lb / 48 kg
Shipping Weight: 115 lb / 52 kg
Certifications: NTEP
Country of Origin: USA
UPC Code: 809161321906
Weight Indicator: 185B
Power Requirements: 6 AA batteries
Battery Power Optional: Battery operation is standard
Indicator Enclosure Construction: ABS
Indicator IP Rating: IP66
Features: Counting, Pushbutton Tare, 1 RS232 Serial Port
Display Type: 1-in-high backlit green LCD
Number of Keys/Keypad Type: 7-key membrane

5852F-190

Capacity: 500 lb x 0.2 lb / 220 kg x 0.1 kg
Platform Dimensions: 19 in W x 28 in D / 48 cm W x 71 cm D
Overall Dimensions: 24.1 in W x 35 in D x 48.8 in H / 61.2 cm W x 88.9 cm D x 124 cm H
Power: 100 – 240 VAC (50/60 Hz) at 0.4A max. or optional BP190 battery pack lithium ion 7.2V, 2600 mAH
Platform, Base, and Column: Mild steel with gray and black powder coat paint
Wheels: 5 in / 13 cm diameter x 2 in / 5 cm depth rubolene with 550 lb load rating
Net Weight: 105 lb / 48 kg
Shipping Weight: 115 lb / 52 kg
Certifications: NTEP, Measurement Canada
Country of Origin: USA
UPC Code: 809161191905
Weight Indicator: 190
Power Requirements: AC
Battery Power Optional: BP190 (7.2V @ 2600 mAH LI-ION pack)
Indicator Enclosure Construction: Thermoplastic
Indicator IP Rating: IP69K
Features: Checkweigher Mode, Pushbutton Tare, Date and Time, 1 RS232 Serial Port, Selectable Key Lockout, Optional Ethernet/Wireless, 4 Remote Digital Inputs, 3 Remote Digital Outputs
Display Type: 1-in-high LCD with multi-color backlight
Number of Keys/Keypad Type: 7-key color-coded capacitive touch
nControl Compatible: Yes, 1 ticket

8852F-190

Capacity: 1,000 lb x 0.5 lb / 440 kg x 0.2 kg
Platform Dimensions: 19 in W x 28 in D / 48 cm W x 71 cm D
Overall Dimensions: 24.1 in W x 35 in D x 48.8 in H / 61.2 cm W x 88.9 cm D x 124 cm H
Power: 100 – 240 VAC (50/60 Hz) at 0.4A max. or optional BP190 battery pack lithium ion 7.2V, 2600 mAH
Platform, Base, and Column: Mild steel with gray and black powder coat paint
Wheels: 5 in / 13 cm diameter x 2 in / 5 cm depth rubolene with 550 lb load rating
Net Weight: 105 lb / 48 kg
Shipping Weight: 115 lb / 52 kg
Certifications: NTEP
Country of Origin: USA
UPC Code: 809161192001
Weight Indicator: 190
Power Requirements: AC
Battery Power Optional: BP190 (7.2V @ 2600 mAH LI-ION pack)
Indicator Enclosure Construction: Thermoplastic
Indicator IP Rating: IP69K
Features: Checkweigher Mode, Pushbutton Tare, Date and Time, 1 RS232 Serial Port, Selectable Key Lockout, Optional Ethernet/Wireless, 4 Remote Digital Inputs, 3 Remote Digital Outputs
Display Type: 1-in-high LCD with multi-color backlight
Number of Keys/Keypad Type: 7-key color-coded capacitive touch
nControl Compatible: Yes, 1 ticket

5852F-205

Capacity: 500 lb x 0.2 lb / 220 kg x 0.1 kg
Platform Dimensions: 19 in W x 28 in D / 48 cm W x 71 cm D
Overall Dimensions: 24.1 in W x 35 in D x 50.5 in H / 61.2 cm W x 88.9 cm D x 128.3 cm H
Power: 100 – 240 VAC (50/60 Hz) at 0.4A max.
Platform, Base, and Column: Mild steel with gray and black powder coat paint
Wheels: 5 in / 13 cm diameter x 2 in / 5 cm depth rubolene with 550 lb load rating
Net Weight: 109 lb / 49 kg
Shipping Weight: 119 lb / 54 kg
Certifications: NTEP, Measurement Canada
Country of Origin: USA
UPC Code: 809161150605
Weight Indicator: 205
Power Requirements: AC
Indicator Enclosure Construction: Stainless Steel
Indicator IP Rating: IP66
Features: USB Interface, Pusbbutton Tare,4 RS232 Serial Ports, Selectable Key Lockout, Optional Ethernet/Wireless, 8 Remote Digital Inputs
Display Type: 0.6-in-high red LED
Number of Keys/Keypad Type: 7-key membrane
nControl Compatible: Yes, 2 tickets

8852F-205

Capacity: 1,000 lb x 0.5 lb / 440 kg x 0.2 kg
Platform Dimensions: 19 in W x 28 in D / 48 cm W x 71 cm D
Overall Dimensions: 24.1 in W x 35 in D x 50.5 in H / 61.2 cm W x 88.9 cm D x 128.3 cm H
Power: 100 – 240 VAC (50/60 Hz) at 0.4A max.
Platform, Base, and Column: Mild steel with gray and black powder coat paint
Wheels: 5 in / 13 cm diameter x 2 in / 5 cm depth rubolene with 550 lb load rating
Net Weight: 109 lb / 49 kg
Shipping Weight: 119 lb / 54 kg
Certifications: NTEP
Country of Origin: USA
UPC Code: 809161150704
Weight Indicator: 205
Power Requirements: AC
Indicator Enclosure Construction: Stainless Steel
Indicator IP Rating: IP66
Features: USB Interface, Pushbutton Tare,4 RS232 Serial Ports, Selectable Key Lockout, Optional Ethernet/Wireless, 8 Remote Digital Inputs
Display Type: 0.6-in-high red LED
Number of Keys/Keypad Type: 7-key membrane
nControl Compatible: Yes, 2 tickets

5852F-210

Capacity: 500 lb x 0.2 lb / 220 kg x 0.1 kg
Platform Dimensions: 19 in W x 28 in D / 48 cm W x 71 cm D
Overall Dimensions: 24.1 in W x 35 in D x 50.5 in H / 61.2 cm W x 88.9 cm D x 128.3 cm H
Power: 100 – 240 VAC (50/60 Hz) at 0.4A max.
Platform, Base, and Column: Mild steel with gray and black powder coat paint
Wheels: 5 in / 13 cm diameter x 2 in / 5 cm depth rubolene with 550 lb load rating
Net Weight: 109 lb / 49 kg
Shipping Weight: 119 lb / 54 kg
Certifications: NTEP, Measurement Canada
Country of Origin: USA
UPC Code: 809161122800
Weight Indicator: 210
Power Requirements: AC
Indicator Enclosure Construction: Stainless Steel
Indicator IP Rating: IP66
Features: USB Interface, Counting Feature with Accumulator, Checkweigher Mode, Keypad Tare Entry, Pushbutton Tare, Date and Time, 4 RS232 Serial Ports, Alphanumeric Keypad, Selectable Key Lockout, ID Storage, Optional Ethernet/Wireless, 8 Remote Digital Inputs, 8 Remote Digital Outputs
Display Type: 0.6-in-high red LED
Number of Keys/Keypad Type: 22-key color-coded membrane
nControl Compatible: Yes, 2 tickets

8852F-210

Capacity: 1,000 lb x 0.5 lb / 440 kg x 0.2 kg
Platform Dimensions: 19 in W x 28 in D / 48 cm W x 71 cm D
Overall Dimensions: 24.1 in W x 35 in D x 50.5 in H / 61.2 cm W x 88.9 cm D x 128.3 cm H
Power: 100 – 240 VAC (50/60 Hz) at 0.4A max.
Platform, Base, and Column: Mild steel with gray and black powder coat paint
Wheels: 5 in / 13 cm diameter x 2 in / 5 cm depth rubolene with 550 lb load rating
Net Weight: 109 lb / 49 kg
Shipping Weight: 119 lb / 54 kg
Certifications: NTEP
Country of Origin: USA
UPC Code: 809161122909
Weight Indicator: 210
Power Requirements: AC
Indicator Enclosure Construction: Stainless Steel
Indicator IP Rating: IP66
Features: USB Interface, Counting Feature with Accumulator, Checkweigher Mode, Keypad Tare Entry, Pushbutton Tare, Date and Time, 4 RS232 Serial Ports, Alphanumeric Keypad, Selectable Key Lockout, ID Storage, Optional Ethernet/Wireless, 8 Remote Digital Inputs, 8 Remote Digital Outputs
Display Type: 0.6-in-high red LED
Number of Keys/Keypad Type: 22-key color-coded membrane
nControl Compatible: Yes, 2 tickets

Models

5852F-185B Portable Scale, Electronic, 500 Lb Capacity, 185B Indicator Call For Pricing
8852F-185B Portable Scale, Electronic, 1000 Lb Capacity, 185B Indicator Call For Pricing
5852F-190 Portable Scale, Electronic, 500 Lb Capacity, 190 Indicator Call For Pricing
8852F-190 Portable Scale, Electronic, 1000 Lb Capacity, 190 Indicator Call For Pricing
5852F-205 Portable Scale, Electronic, 500 Lb Capacity, 205 Indicator Call For Pricing
8852F-205 Portable Scale, Electronic, 1000 Lb Capacity, 205 Indicator Call For Pricing
5852F-210 Portable Scale, Electronic, 500 Lb Capacity, 210 Indicator Call For Pricing
8852F-210 Portable Scale, Electronic, 1000 Lb Capacity, 210 Indicator Call For Pricing
