DETECTO’s DL series networkable price computing scales with integral label printers features 5,990 PLUs, 30 lb x 0.01 lb or 60 lb x 0.02 lb capacity, 12.8 in W x 8.9 in D stainless steel platform, inventory reporting capabilities by PLU, multiple connectivity ports (USB, Ethernet, and RS232 serial), alphanumeric display (upper and lower case characters), 4 LED display windows and 1 dot matrix text screen, NTEP legal-for-trade certification, and they are available with or without a tower pole display. DETECTO’s DL series scales print labels in a wide variety of styles, sizes, and printed information: bar codes, QR codes, safe handling images, ingredients, weights, date formats with month/day or time, nutritional facts, discounts, logos, and more. 50 label types are available via included software. Label rolls are available from DETECTO in single rolls or by the case (see Options tab).

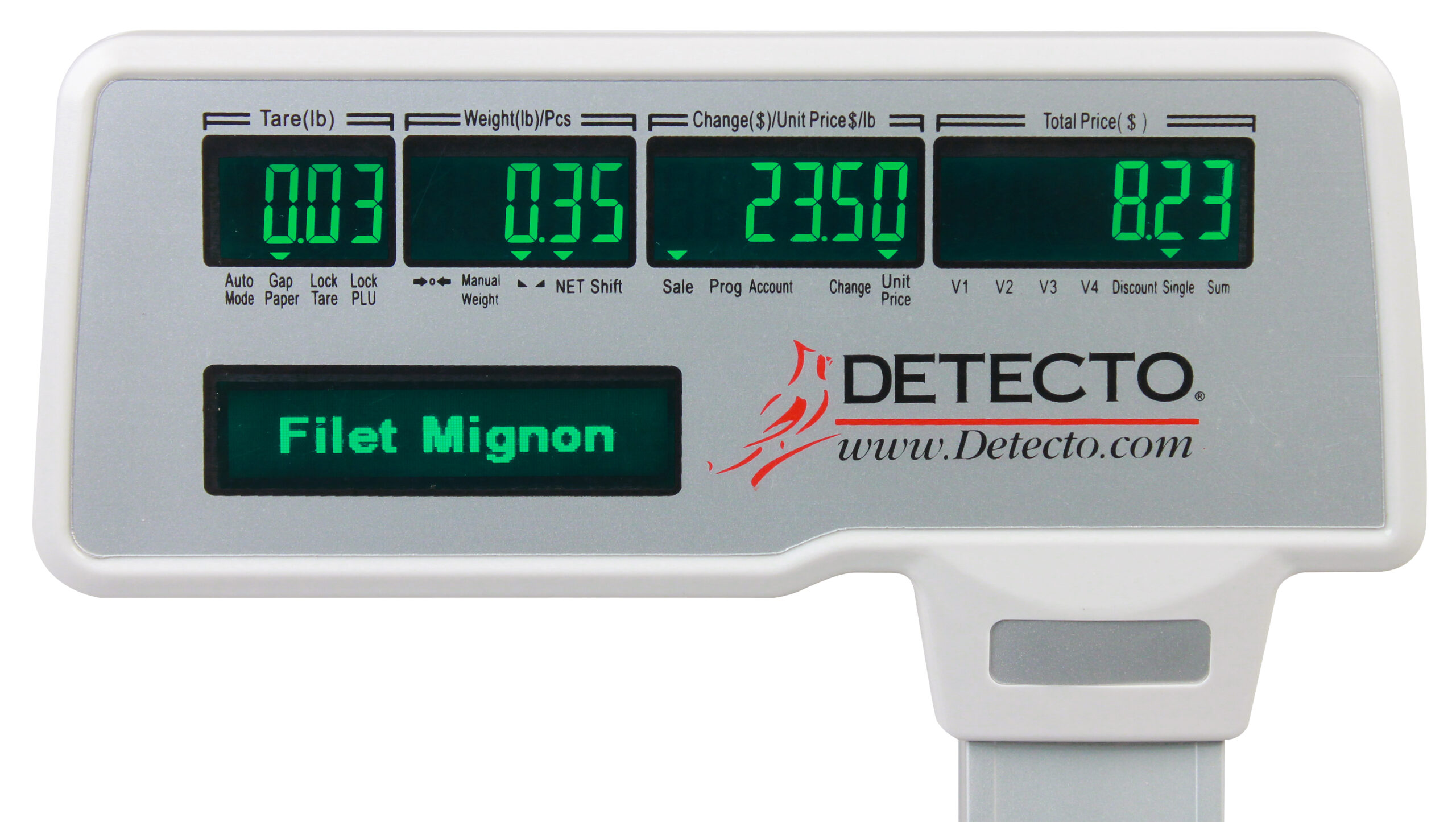

4 LED Display Windows and 1 Dot Matrix Text Screen
5990 PLUs
Alphanumeric Display (Upper and Lower Case Characters)

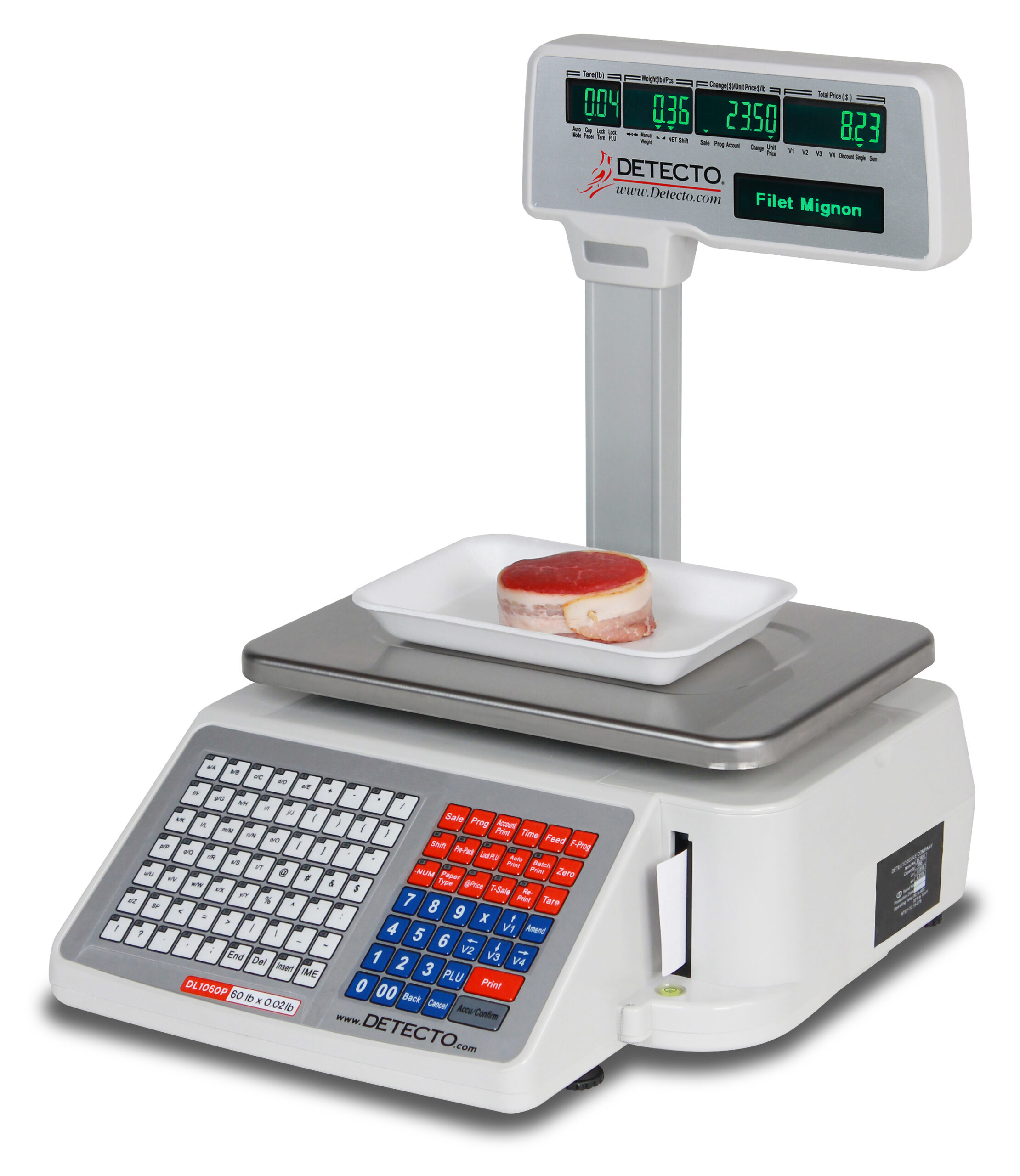

Available With or without Tower Pole Display

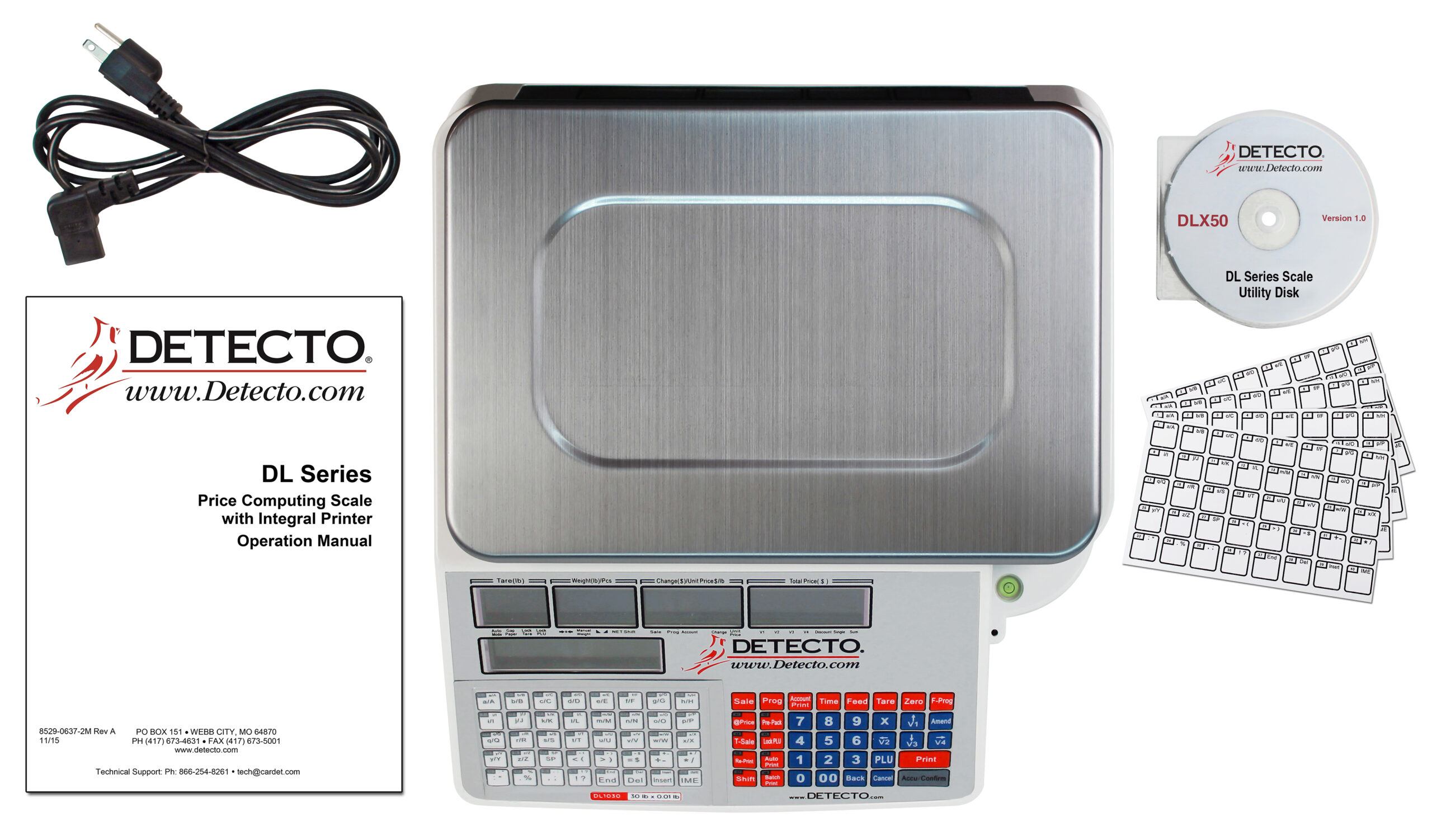

Includes PC Software CD with Drag-and-Drop Graphics Setup
Integral Label Printer
Inventory Reporting Capabilities by PLU
Labels Available from DETECTO
NTEP Legal for Trade
Programming Password Protected Optional
USB – Ethernet – RS232 Serial
Specifications
Models: DL1030, DL1060, DL1030P, and DL1060P Capacity (DL1030 / DL1030P): 30 lb X .01 lb Capacity (DL1060 / DL1060P): 60 lb x .02 lb Weight Units: Pounds (lb) Display (DL1030 / DL1060): Front – 4 seven-segment LED screens and 1 dot matrix text screen (with upper and lower case characters); Back: 4 seven-segment LED screens Display (DL1030P / DL1060P): Front – 4 seven-segment LED screens and 1 dot matrix text screen (with upper and lower case characters); Back: 4 seven-segment LED screens and 1 dot matrix text screen (with upper and lower case characters) Display Digits: 4 digit Tare, 6 digit Unit Price, 5 digit Weight, 6 digit Total Price Max PLU: 5,990 PLU’s Total Keys (DL1030 / DL1060): 89 Total Keys (DL1030P / DL1060P): 103 Speed Keys (DL1030 / DL1060): 40 (doubles to 80 when pressing SHIFT + the quick key for a second PLU from the same key) Speed Keys (DL1030P / DL1060P): 63 (doubles to 126 when pressing SHIFT + the quick key for a second PLU from the same key) Measurement Type: Load Cell Printer: Thermal Print Label Size: Width: 40 mm – 60 mm; Length: 128 mm Interface: USB, Ethernet, and RS232 serial Power Source: 120VAC, 50-60 Hz (AC power cord included) Operating Temperature: 32° F – 104° F / 0° C – 40° C Operating Humidity: 15% – 85% relative humidity non-condensing Construction: Stainless steel platform and ABS plastic scale enclosure Platform Size: 12.8 in W X 8.9 in D / 32.5 cm W X 22.6 cm D Overall Dimensions (DL1030 / DL1060): 13.8 in W x 15.5 in D x 6.8 in H / 35.1 cm W x 39.4 cm D x 17.3 cm H Overall Dimensions (DL1030P / DL1060P): 13.8 in W x 17.4 in D x 18.1 in H / 35.1 cm W x 44.2 cm D x 46 cm H Certification: NTEP legal for trade certified Product Net Weight (DL1030 / DL1060): 13.4 lb / 6.1 kg Product Net Weight (DL1030P / DL1060P): 15.1 lb / 6.8 kg Shipping Weight (DL1030 / DL1060): 15.4 lb / 7 kg Shipping Weight (DL1030P / DL1060P): 17 lb / 7.7 kg Tower Pole Display: DL1030P / DL1060P UPC Codes: DL1030: 809161199406, DL1030P: 809161199505, DL1060: 809161199604, DL1060P: 809161199703 Minimum Weight: 0.2 lb per NTEP
Options
6600-3001
Label, DL Series, 58mm x 40mm, 700/roll
Call For Pricing
6600-3002
Label, DL Series, 58mm x 60mm, 500/roll
Call For Pricing
6600-3003
Label, Safe Handling, DL Series, 58mm x 50mm, 500/roll
Call For Pricing
6600-3004
Label, DL Series, 58mm x 40 mm, 700/roll
Call For Pricing
7100-0257
Power Cord, DL Series
Call For Pricing
Models
DL1030
Deli Scale with Integral Printer, 30 lb x 0.01 lb
Call For Pricing
DL1030P
Deli Scale with Integral Printer, Tower Pole Display, 30 lb x 0.01 lb
Call For Pricing
DL1060
Deli Scale with Integral Printer, 60 lb x 0.02 lb
Call For Pricing
DL1060P
Deli Scale with Integral Printer, Tower Pole Display, 60 lb x 0.02 lb
