DR Series Portable

$0.00

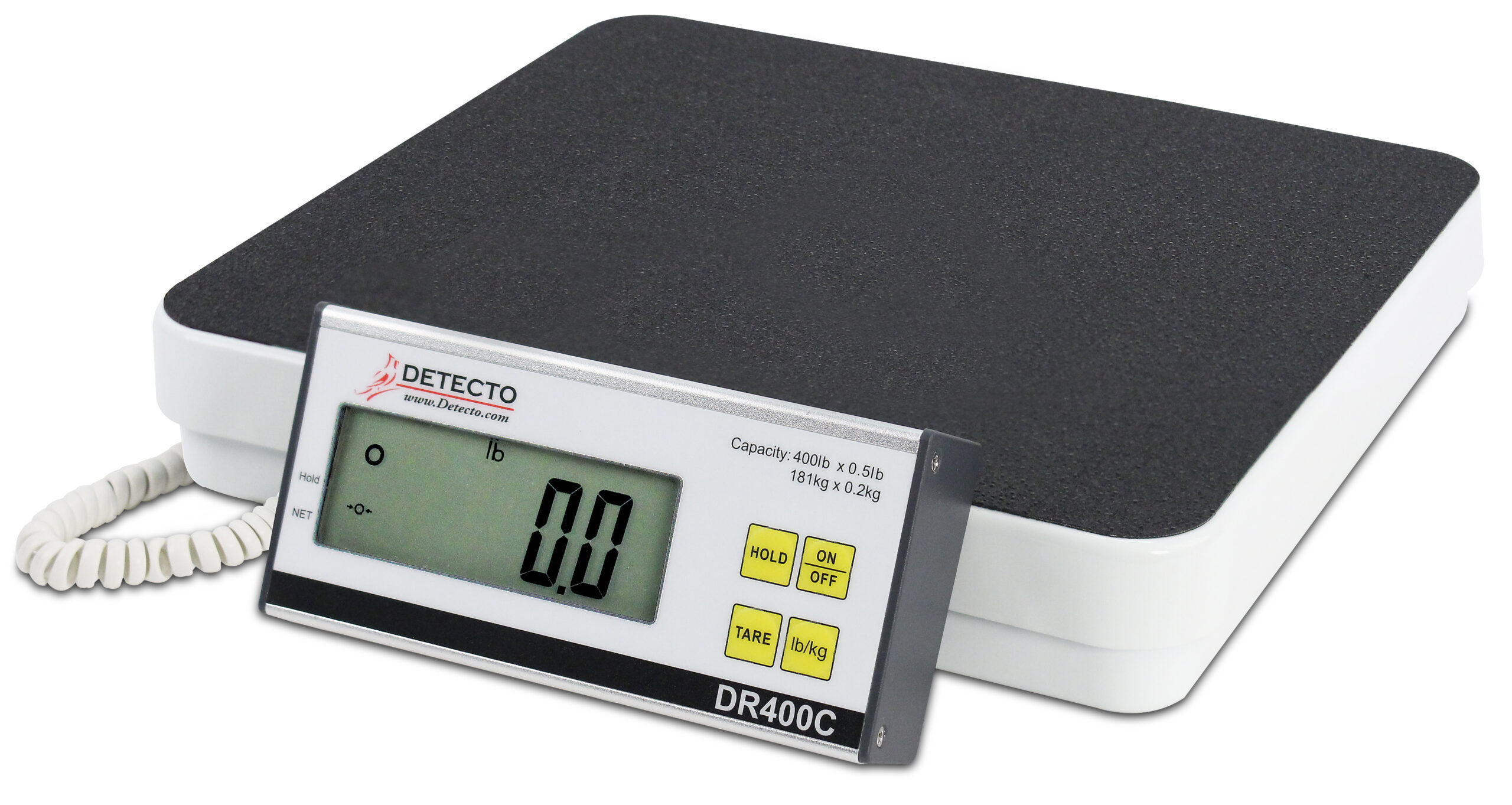

DETECTO’s model DR400C and DR550C digital floor scales will provide you with years of accurate and reliable weighing from the brand you trust in clinical weighing. The scales arrive assembled and ready for use. Models are available in 550 lb x 0.2 lb and 400 lb x 0.5 lb capacities. The portable lightweight platform and large bold backlit blue readouts makes these scales ideal for mobile clinics, home healthcare nurses, doctor’s offices, general purpose use, and home bathroom weighing. The scale’s moveable display lets you place it on a work surface or mounted to the wall, wherever it’s most convenient for you to view. An optional black carrying case is available.

The economical DR400C and DR550C are battery powered, so you can take the scales anywhere you need them. The raised buttons are comfortable to press for a pleasant tactile feel, and an audible beep provides a confirmation of your keypresses. The backlit blue LCD with bold one-inch-high digits is viewable in almost any lighting condition. DETECTO’s DR400C and DR550C come with a UL listed 9V 300mA DC adapter (included) or may be powered by 4 AA batteries (not included) for mobile use. Easy access to the four AA batteries is located conveniently on the back of the indicator.

The DR series indicator’s versatile drop-in mounting bracket and coiled cable allows the display to be positioned on the floor or tabletop for quick mobile weighing use or you may permanently mount it on the wall using the included screws and plastic drywall anchors. Wall-mounting the remote display offers the additional advantage of eye-level readings and space-saving operation. The DR series scale includes a coiled cable to the indicator, mounting bracket, DC adapter, operation manual, and two mounting screws and two plastic drywall anchors.

Download product PDF
Category:

Features

  • Large, bold 1-in/25-mm high digits with backlit blue LCD
  • Compact, low-profile design for space-saving efficiency
  • Coiled cable from scale base allows versatile positioning of the indicator
  • Slip-resistant, texturized black rubber mat for traction and patient stability
  • 550 lb x 0.2 lb and 400 lb x 0.5 lb models available
  • 2.2-in/5.6-cm high, low-profile platform for easy portability
  • Battery or AC power for your convenience
  • Lightweight, mobile weighing platform for easy transport
  • Auto Shut-Off after 2 minutes conserves battery power
  • Simple four-key operation is easy to use even for novices
  • Pushbutton Tare will zero out the load on the platform
  • Pounds and kilograms conversion with Units key
  • Removeable steel platform that is durable and easy to clean
  • Excellent for use where space is limited
  • Two mounting screws and two plastic drywall anchors included for the mounting bracket
  • Four non-skid feet for weighing stability
  • 12.5 in W x 11.9 in D x 2.2 in H / 318 mm W x 303 mm D x 58 mm H platform

Specifications

Capacity (DR400C): 400lb x 0.5 lb / 180 kg x 0.2 kg
Capacity (DR550C): 550 lb x 0.2 lb / 250 kg x 0.1 kg
Scale Base Platform Dimensions: 12.5 in W x 11.9 in D x 2.2 in H / 318 mm W x 303 mm D x 58 mm H
Weight Indicator Dimensions: 6.8 in W x 1.6 in D x 3.2 in H / 172 mm W x 40 mm D x 82 mm H (minus bracket)
Scale Base Platform Construction: Mild steel painted white with textured black rubber mat
Keys: ON/OFF, HOLD, TARE, lb/kg
Display Annunciators: Stable weight, negative weight, Hold, Net, kg, lb, Low battery
Features: Backlight, low battery indicator, power-saving selectable timing auto shut-off, beeper, printer output
Display Type: Liquid Crystal Display, 5 digit, 7 segment
LCD Display Dimensions: 3.8 in W x 1.4 in H / 96 mm W x 35 mm H overall LCD size
LCD Digit Dimensions: 1 in H x 0.4 in W / 25 mm H x 10 mm W per digit
Cable Length: Coiled: 34 in / 863 mm Fully Extended: 90 in / 2,286 mm
Power: 9V DC 300mA power supply or (4) AA alkaline batteries (not included)
Tare: 100% of full scale capacity
Zero: Established on power up routine and maintained by auto-zero circuitry
Operating Temperature: 41º F to 95º F (5º C to 35º C)
Operating Humidity: 35% ~ 90% RH
Net Weight: 10.5 lb / 4.8 kg
Shipping Weight: 12 lb / 5.4 kg
UPC Code (DR400C): 809161143904
UPC Code (DR550C): 809161144000
Options: GBSS18-WM stainless steel wall-mount support handle and DR-CASE black carrying case with handle and zipper

Options

6800-1041 AC Adapter, US AC in, 120VAC/9VDC @ 200 mA Call For Pricing
DR-CASE Case, DR Series Scales Call For Pricing
GBSS18-WM Grab Bar, Wall Mount, 18″, Stainless Steel Call For Pricing

Models

DR400C Healthcare Scale, Digital, 400 lb x .5 lb / 180 kg x .2 kg Call For Pricing
DR550C Healthcare Scale, Digital, 550 lb x .2 lb / 250 kg x .1 kg Call For Pricing
