EB-185 Series

$0.00

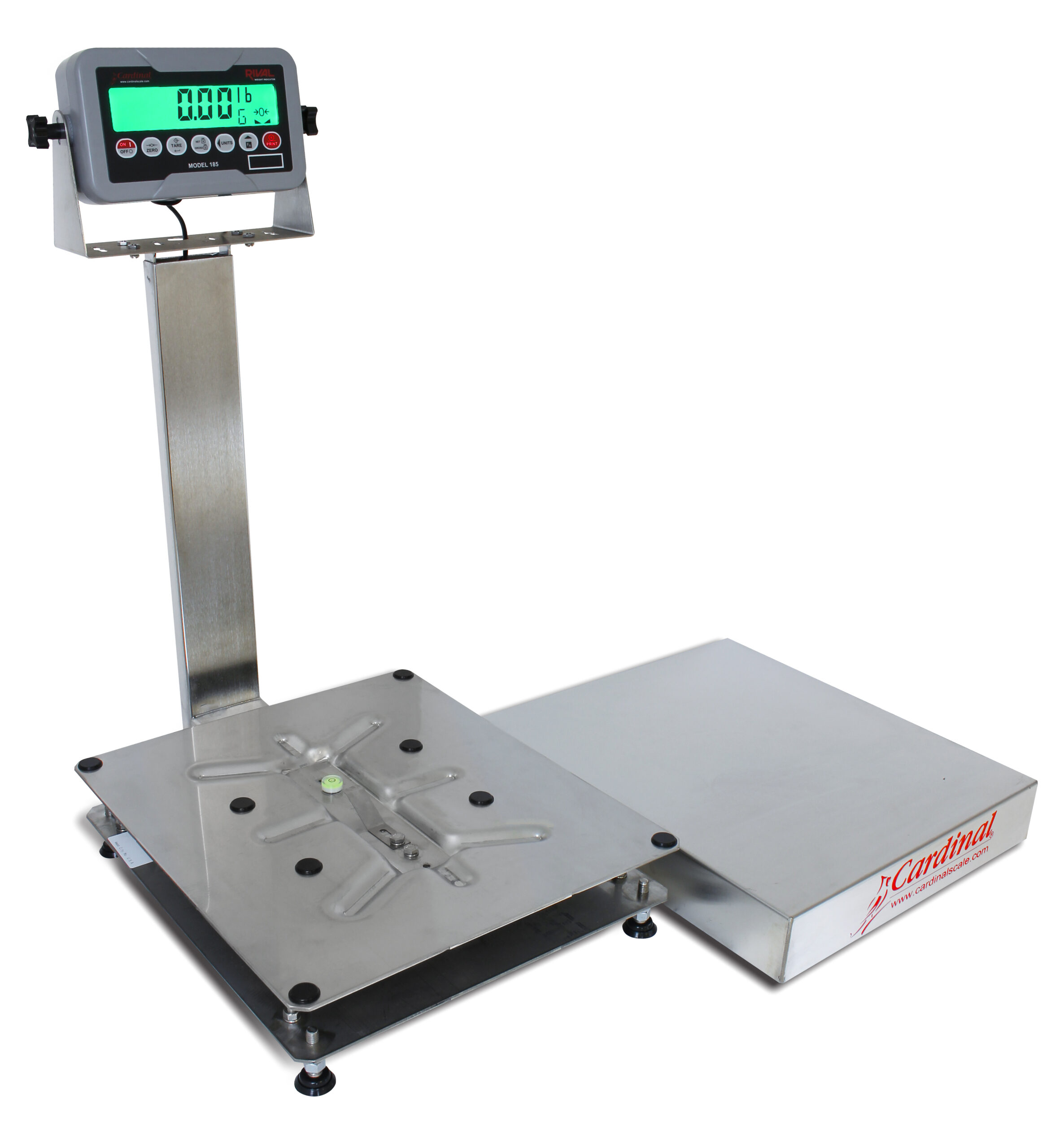

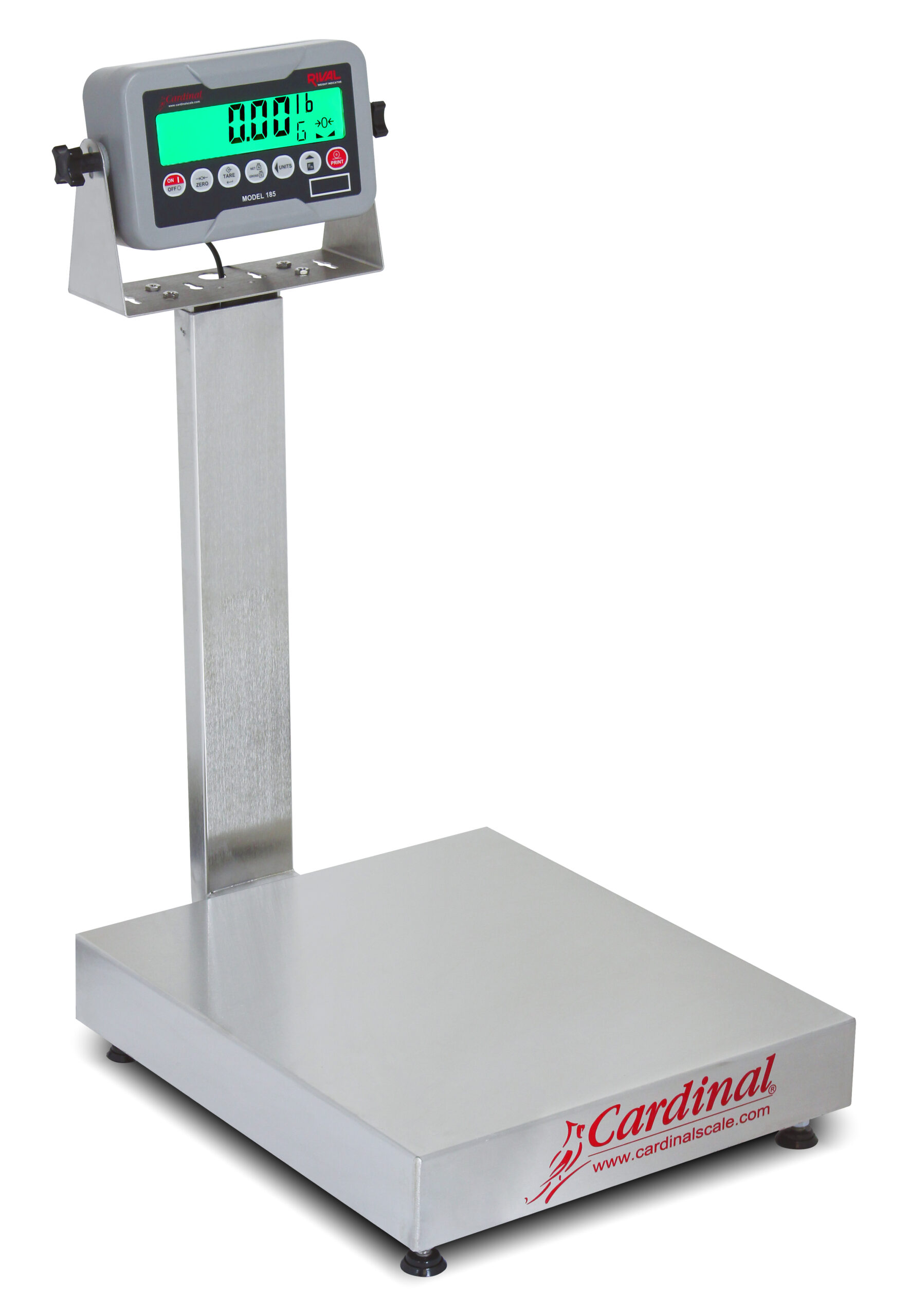

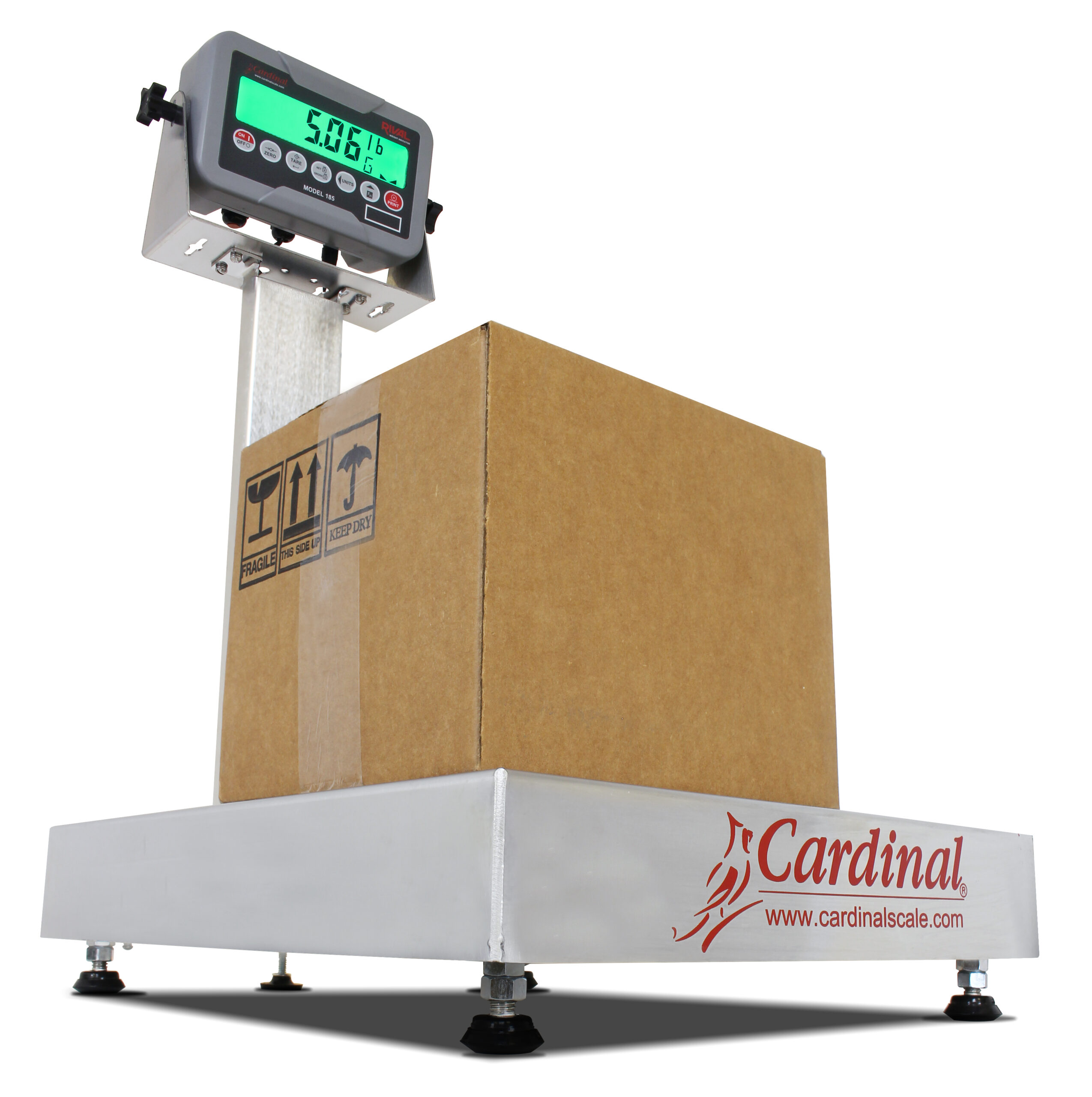

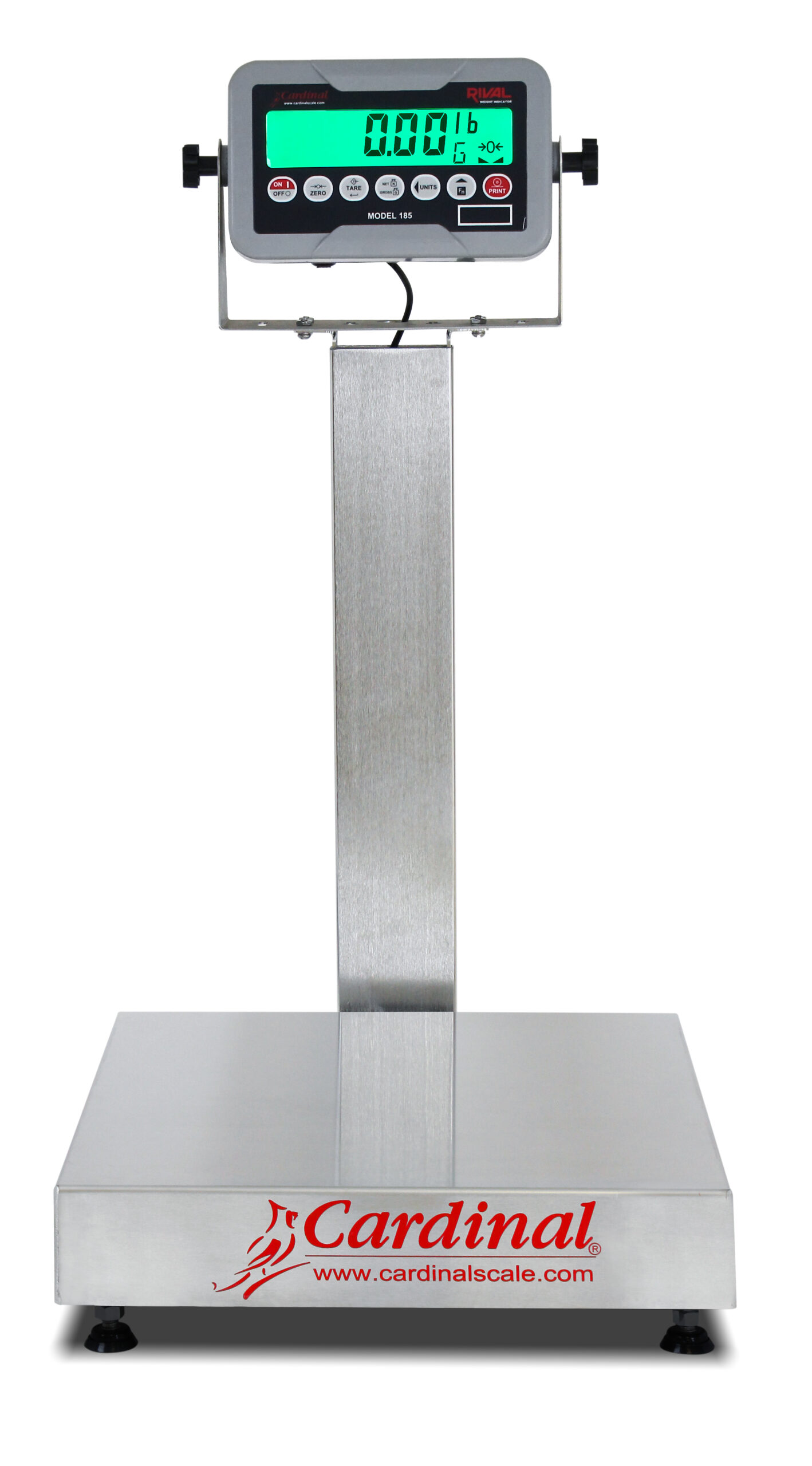

Cardinal Scale’s EB bench scales with 185 Rival weight indicators feature rechargeable battery power allowing them to be moved easily to multiple locations, bold 1-inch/25-mm high backlit LCD for high-visibility readouts, 3 platform sizes and 5 capacities available. Capacities range from 15 lb/6 kg up to 300 lb/150 kg and the EB series is NTEP, OIML, and Measurement Canada legal for trade. Cardinal Scale’s EB bench scales feature the strength and durability of a beautiful stainless steel scale base and column combined with the elegant and comfortable tactile feel of the ABS washdown 185B Rival weight indicator.

The backlit green LCD is visible in nearly any lighting level, indoors or outdoors. The bench scale’s indicator mounted to the column tilts for letting you position it with the most convenient viewing angle. The scale features a durable sturdy base for solid support, lift-off stainless steel platform, bi-directional RS232 port for printing or connection to a PC, pushbutton tare, auto shutoff, piece counting mode, and simple seven-button operation. They are ideal for farmers markets, processing, warehousing, recycling, distribution centers, and general purpose weighing.

Since the scale can be powered by 6 AA rechargeable batteries, it’s completely portable for moving around to multiple locations in your facility. The battery level indicator lets you see how much battery life is left before recharging is needed. The indicator anti-slip mounting bracket includes rotational lock-in set points adjustable in discrete 15º increments for exact positioning of the display right where you want it.

Download product PDF
Category:

Features

  • Rechargeable Battery Power
  • Bold 1-inch/25-mm High Backlit LCD
  • 3 Platform Sizes and 5 Capacities Available
  • Capacities Ranging From 15 lb/6 kg up to 300 lb/150 kg
  • 304 Stainless Steel Platform and Column with ABS 185B Rival Weight Indicator Mounted to the Column
  • Durable Sturdy Base for Solid Support
  • Platform Sizes Available from 10 in W x 12 in D / 25 cm W x 30 cm D up to 24 in W x 20 in D / 61 cm W x 51 cm D
  • Lift-Off Stainless Steel Platform
  • Powered by 6 AA Batteries (not included) or AC Power
  • Built-in, Bi-Directional RS232 Port for Printing or Connection to a PC
  • Column-Mounted 185B Rival Weight Indicator
  • Pushbutton Tare
  • Stainless Steel Load Cell
  • Pounds/Kilograms Conversion
  • Gross, Tare, Net
  • NTEP, Measurement Canada, and OIML approved
  • Country of Origin: USA
  • Battery Level Indicator
  • Pounds and Kilograms Weighing Units
  • StableSENSE® Adjustable Filtering
  • Auto Shutoff and Sleep Modes
  • SMA level 2 Compliant Serial Communications
  • Piece Counting Mode

Specifications

EB-15-185B:
Overall Dimensions:
10 in W x 16 in D x 19.3 in H / 25 cm W x 41 cm D x 49 cm H
Capacity: 15 lb x 0.005 lb / 6 kg x 0.002 kg
Platform Size: 10 in W x 12 in D / 25 cm W x 30 cm D
Shipping Weight: 28 lb / 12.7 kg

EB-30-185B:
Overall Dimensions: 10 in W x 16 in D x 19.3 in H / 25 cm W x 41 cm D x 49 cm H
Capacity: 30 lb x 0.01 lb / 15 kg x 0.005 kg
Platform Size: 10 in W x 12 in D / 25 cm W x 30 cm D
Shipping Weight: 28 lb / 12.7 kg

EB-60-185B:
Overall Dimensions:
14 in W x 16.8 in D x 25.2 in H / 36 cm W x 43 cm D x 64 cm H
Capacity: 60 lb x 0.02 lb / 30 kg x 0.01 kg
Platform Size: 14 in W x 16 in D / 36 cm W x 41 cm D
Shipping Weight: 43 lb / 19.5 kg

EB-150-185B:
Overall Dimensions: 14 in W x 16.8 in D x 25.2 in H / 36 cm W x 43 cm D x 64 cm H
Capacity: 150 lb x 0.05 lb / 60 kg x 0.02 kg
Platform Size: 14 in W x 16 in D / 36 cm W x 41 cm D
Shipping Weight: 43 lb / 19.5 kg

EB-300-185B:
Overall Dimensions:
24 in W x 20.8 in D x 25.5 in H / 61 cm W x 53 cm D x 65 cm H
Capacity: 300 lb x 0.1 lb / 150 kg x 0.05 kg
Platform Size: 24 in W x 20 in D / 61 cm W x 51 cm D
Shipping Weight: 77 lb / 35.0 kg

Construction: Stainless steel scale base, column, and mounting bracket with ABS weight indicator enclosure
Power Requirements: Six “AA” Alkaline, Ni-Cad or NiMH batteries (not included) OR 100 to 240 VAC 50/60Hz 12 VDC 1 A wall plug-in UL/CSA listed AC power adapter (Cardinal part number 8400-0182-0A)
Battery Life: 70-hour typical operation with full charge
Weight Display: Six-digit, seven-segment, 1.0 in (25 mm) high, backlit green LCD
Compensated Temperature Range: 14 to 104 ºF (-10 to 40 ºC)
Operating Temperature Range: -10 to 122 ºF (-23 to 50 ºC)
Humidity: 90% non-condensing (maximum)
Tare Capacity: Scale capacity
Sample Rate: 10 samples per second
Auto Zero Range: 0.5 or 1 through 9 divisions
Keypad: 7-key Membrane type
Keys: ON/OFF, ZERO, TARE, NET/GROSS, UNITS, FN, PRINT
Standard I/O: (1) bi-directional RS232 port
Country of Origin: USA
Certifications: NTEP 03-031, Measurement Canada AM-5526, OIML 0199.387

Models



EB-15-185B    Bench Scale, Electronic, 12″ x 10″, 15 Lb Capacity, Stainless Steel, 185B Indicator

EB-30-185B   Bench Scale, Electronic, 12″ x 10″, 30 Lb Capacity, Stainless Steel, 185B Indicator

EB-60-185B Bench Scale, Electronic, 16″ x 14″, 60 Lb Capacity, Stainless Steel, 185B Indicator
EB-150-185B Bench Scale, Electronic, 16″ x 14″, 150 Lb Capacity, Stainless Steel, 185B Indicator
EB-300-185B Bench Scale, Electronic, 24″ x 20″, 300 Lb Capacity, Stainless Steel, 185B Indicator
