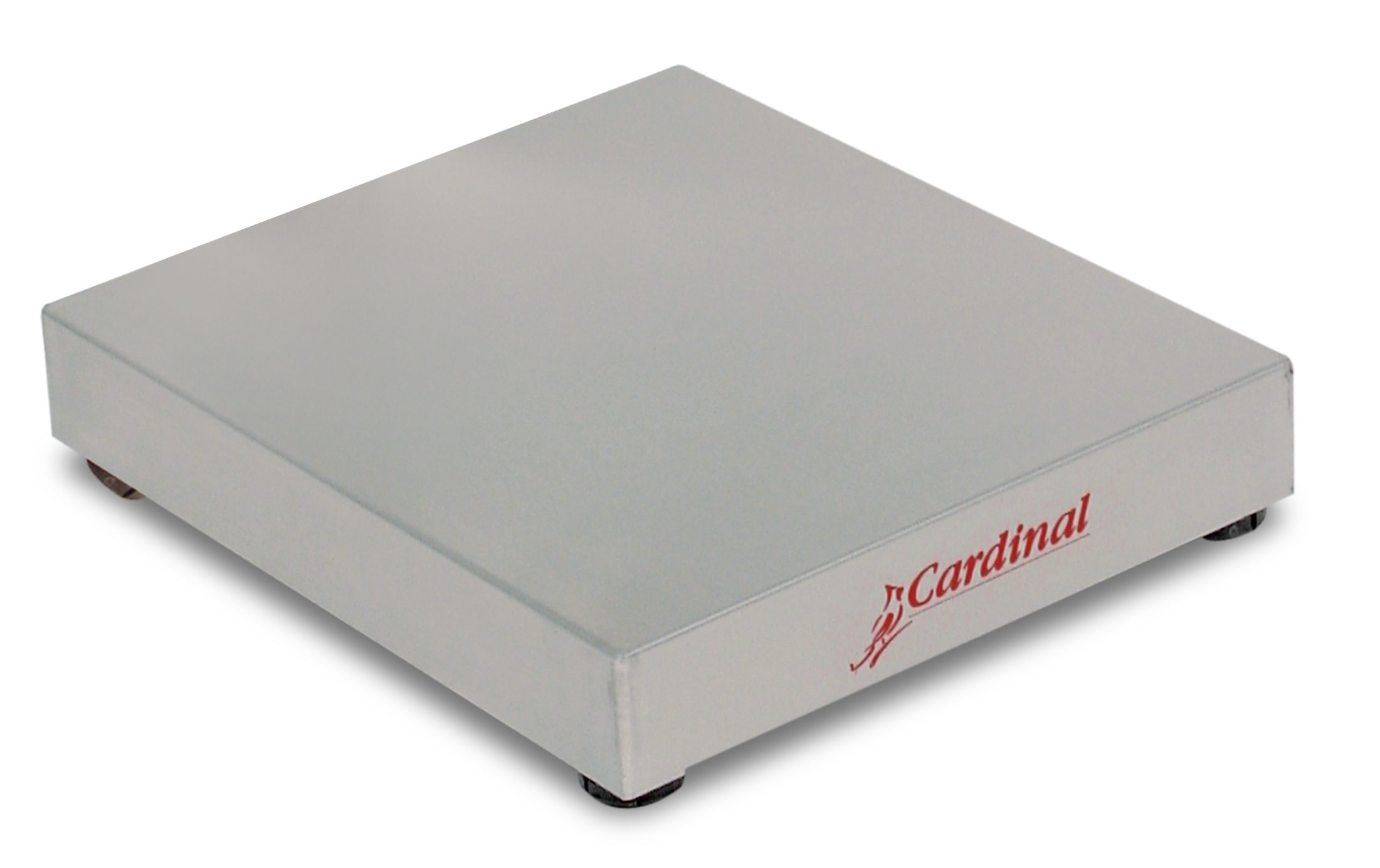

The EB-LPAN series have all of the features and options of the EB series but are built for applications where columns aren’t necessary or practical. A stainless steel platform base with dimensions of either 12 x 10, 16 x 14, and 24 x 20-inch depending on your use. These scales can easily be equipped with any of our 185, 190, 205, or 210 indicators and are designed for use in the same environments as the standard EB series, such as food processing and packaging, pharmaceuticals, recycling or the chemical industry. NTEP legal-for-trade certification. Available in 15, 30, 60, 150 and 300 lb capacities.
EB-15-LPAN:
Overall Dimensions: 10 in W x 12 in D / 25 cm W x 30 cm D
Capacity: 15 lb x 0.005 lb / 6 kg x 0.002 kg
Platform Size: 10 in W x 12 in D / 25 cm W x 30 cm D
Shipping Weight: 23 lb / 10.4 kg
EB-30-LPAN:
Overall Dimensions: 10 in W x 12 in D / 25 cm W x 30 cm D
Capacity: 30 lb x 0.01 lb / 15 kg x 0.005 kg
Platform Size: 10 in W x 12 in D / 25 cm W x 30 cm D
Shipping Weight: 23 lb / 10.4 kg
EB-60-LPAN:
Overall Dimensions: 14 in W x 16 in D / 36 cm W x 41 cm D
Capacity: 60 lb x 0.02 lb / 30 kg x 0.01 kg
Platform Size: 14 in W x 16 in D / 36 cm W x 41 cm D
Shipping Weight: 38 lb / 17.2 kg
EB-150-LPAN:
Overall Dimensions: 14 in W x 16 in D / 36 cm W x 41 cm D
Capacity: 150 lb x 0.05 lb / 60 kg x 0.02 kg
Platform Size: 14 in W x 16 in D / 36 cm W x 41 cm D
Shipping Weight: 38 lb / 17.2 kg
EB-300-LPAN:
Overall Dimensions: 24 in W x 20 in D / 61 cm W x 51 cm D
Capacity: 300 lb x 0.1 lb / 150 kg x 0.05 kg
Platform Size: 24 in W x 20 in D / 61 cm W x 51 cm D
Shipping Weight: 72 lb / 32.7 kg
Construction: Stainless steel
Power Requirements: 100 to 240 VAC (50/60 Hz) at 0.4A Max. Power cord included.
Display: Six-digit, seven-segment, 0.6-in (15-mm) high LED
Compensated Temperature Range: 14 to 104 ºF (-10 to 40 ºC)
Operating Temperature Range: -10 to 122 ºF (-23 to 50 ºC)
Humidity: 90% non-condensing (maximum)
Tare Capacity: Scale capacity
Sample Rate: 1 – 50 samples per second, selectable
Auto Zero Range: 0.5 or 1 through 9 divisions
Standard I/O:
EB-205 and EB-210: 4 ea serial I/O ports: 1 ea 20mA output-only port (uses one of the four RS-232 ports) 1 ea bi-directional 20mA port (uses one of the four RS-232 ports) 1 ea USB port (uses one of the four RS-232 ports)
EB-210: 8 ea remote isolated inputs and 8 ea remote isolated outputs
Certification: NTEP 03-031, Measurement Canada AM-5526, OIML 0199.387
| EB-15-LPAN | Bench Scale, Electronic, 12″ x 10″, 15 Lb Capacity, Stainless Steel, |
| EB-30-LPAN | Bench Scale, Electronic, 12″ x 10″, 30 Lb Capacity, Stainless Steel |
| EB-60-LPAN | Bench Scale, Electronic, 16″ x 14″, 60 Lb Capacity, Stainless Steel |
| EB-150-LPAN | Bench Scale, Electronic, 16″ x 14″, 150 Lb Capacity, Stainless Steel |
| EB-300-LPAN | Bench Scale, Electronic, 24″ x 20″, 300 Lb Capacity, Stainless Steel |
