WPB Series Waterproof Legal-for-Trade Scales

$0.00

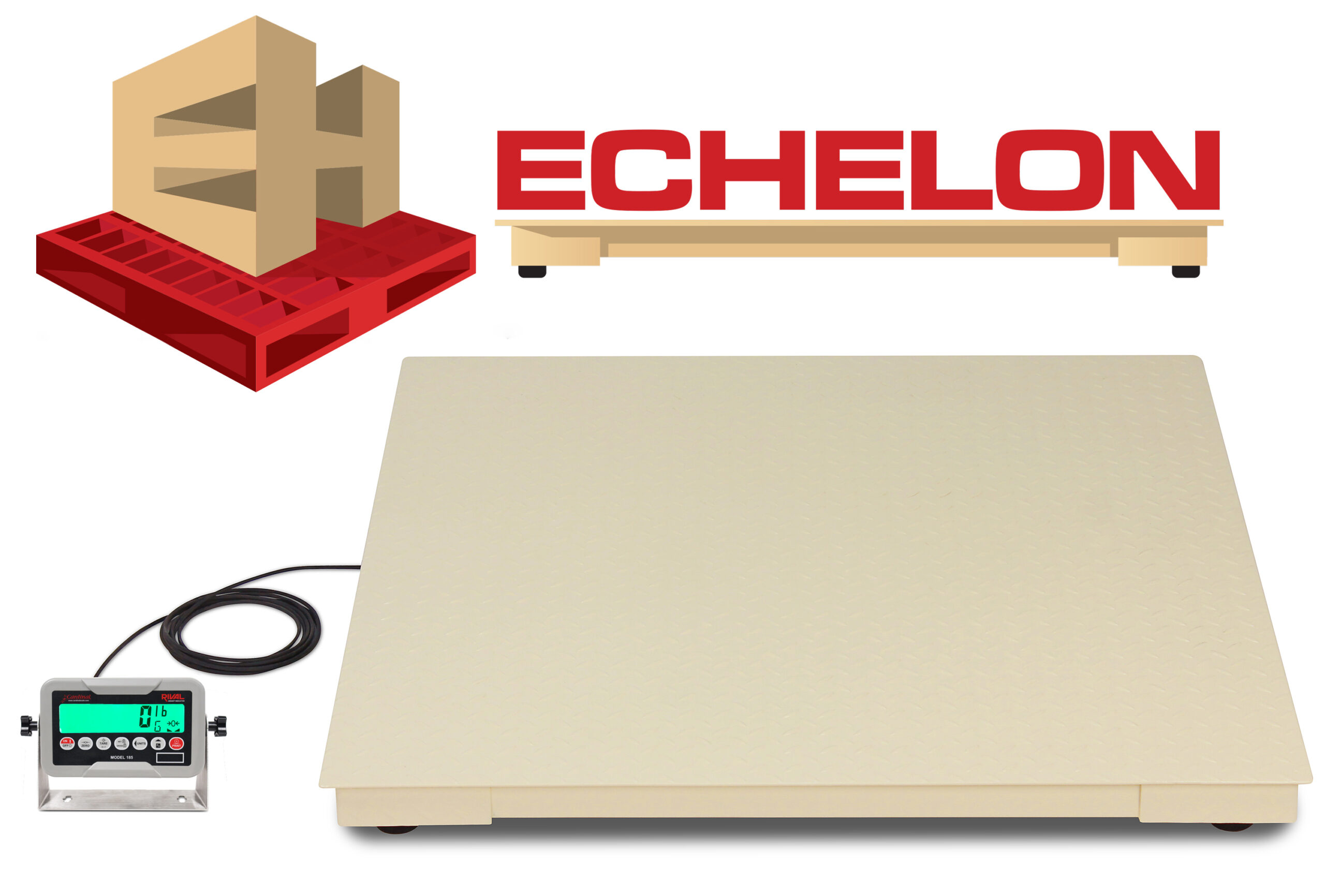

Cardinal Scale’s Echelon EH floor scales provide exceptional performance in light industrial and NTEP legal-for-trade applications for warehouses, logistics operations, processing plants, and shipping/ receiving departments. Ideally suited for pallet, drum, and package weighing, the Echelon’s checkered carbon steel deck tread-plate with powder-coat paint handles rugged industrial weighing use. The EH series features 4-ft-square platforms, 5,000 lb x 1 lb and 10,000 lb x 2 lb capacities, NTEP-approved IP67 waterproof anti-corrosion shear beam load cells, 3/16”-thick checkered steel deck, 2.2-in/5.6-cm diameter rubber feet, and durable structural steel channel.

Download product PDF
Category:

Features

  • 3/16-Inch-Thick Checkered Steel Deck Protection
  • 4 x 4 ft Checkered Steel Deck Platform
  • 5000 lb x 1 lb or 10000 lb x 2 lb Capacity
  • Durable Structural Steel Channel
  • High-Quality Economical Floor Scales
  • Industrial Tan Powder Paint
  • Load Cell Feet Swivel to Find Level Ground
  • NTEP Legal for Trade
  • NTEP-Approved Alloy Steel Shear Beam Load Cells
  • Ramps Available (model EH-501E)
  • Rubber Load Cell Footings
  • Side-Access Junction Box

Specifications

Capacity (EH-544): 5,000 lb x 1 lb
Capacity (EH-1044): 10,000 lb x 2 lb
Platform Size: 4 ft W x 4 ft D / 122 cm W x 122 cm D
Scale Height: 4 in H – 5.5 in H / 10 cm H – 14 cm H (adjustable height load cell feet)
Scale Construction: Painted carbon steel structure

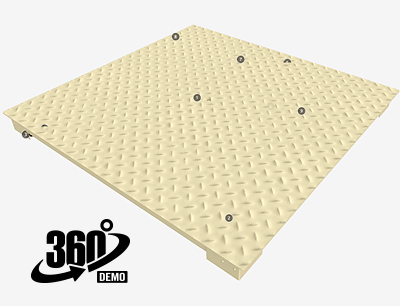

Platform Surface: Checkered steel deck
Deck Thickness: 3/16” / 5 mm
Paint: Industrial tan powder paint
Load Cells: Four nickel-plated alloy steel IP67
Load Cell Cable Length: 15 ft / 4.5 m for connecting to indicator

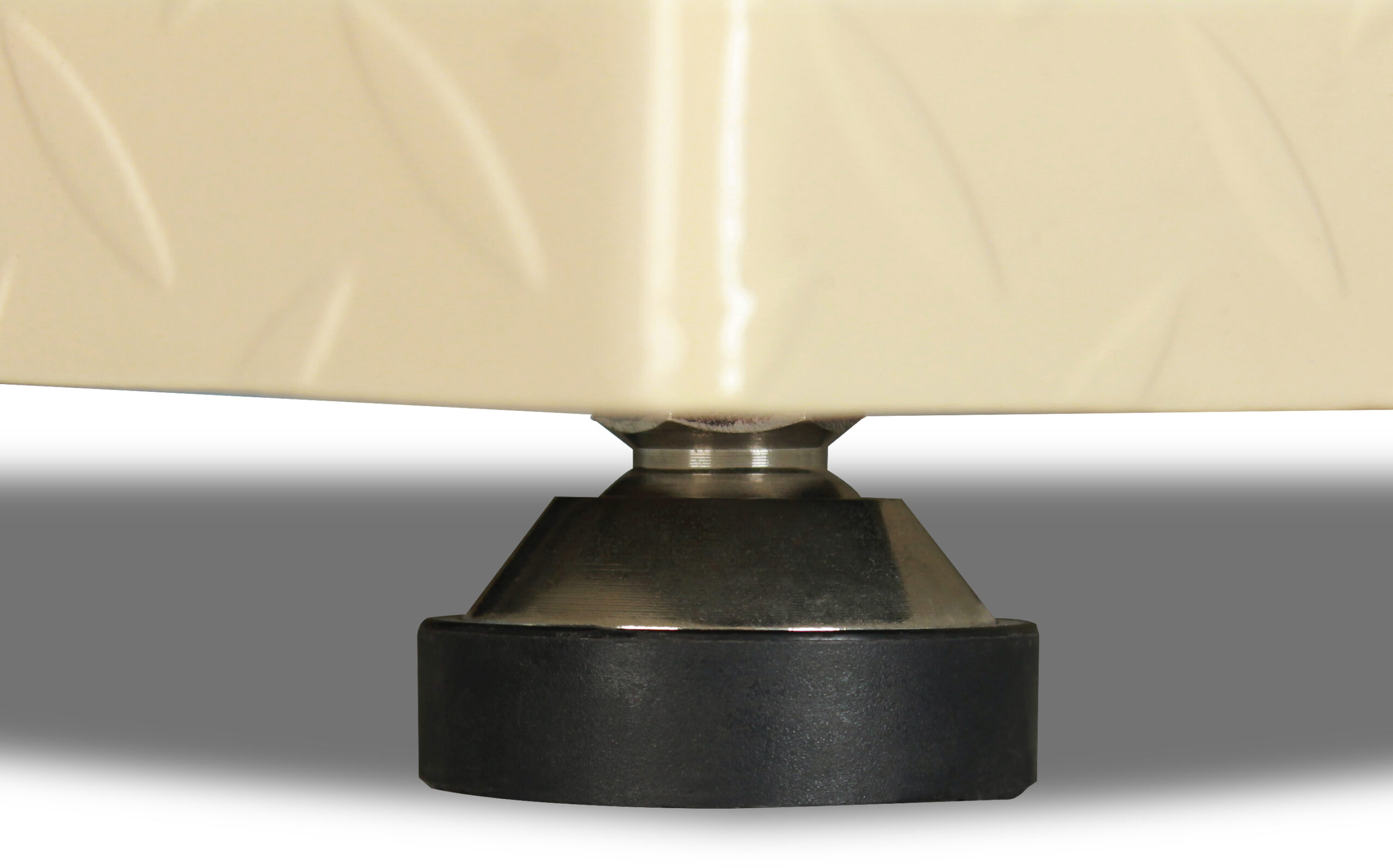

Load Cell Feet: Four 2.2 in / 5.6 cm diameter nickel-plated alloy steel, height adjustable
Junction Box: Side panel access
Certification: NTEP legal for trade, accuracy class III, certificate of conformance no. 15-085
Shipping Weight: 240 lb / 110 kg
LPAN: Sold without an indicator
Ramps (Optional): Model EH-501E (28.5 in L x 48 in W) checkered deck ramp

Options

BA510K-EH Base Anchors, EH Scale Ramp, 5K, 10K Call For Pricing
EH-501E Ramp, EH Series, 48″ Wide, 5,000 Lb Capacity, Mild Steel Call For Pricing

Models

EH-544 Echelon EH Floor Scale, Electronic, 4′ x 4′, 5000 lb capacity Call For Pricing
EH-1044 Echelon EH Floor Scale, Electronic, 4′ x 4′, 10,000 lb capacity Call For Pricing
