EL147, 6 Wire Load Cell Cable
$0.00
Download product PDF
Features

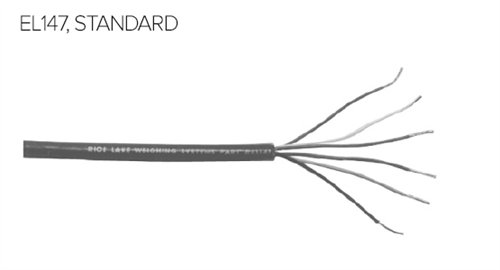

EL147 Standard Cable
- 20 AWG tinned copper wire stranded for flexibility
- Braided shielding is encased in red PVC
- All conductors are industry-standard color coded
- Diameter: 0.29 in
- The six-wire cable is best suited for longer runs where remote sense lines can be used
- Temperature rating: -22 °F to 126 °F (-30 °C to 80 °C)

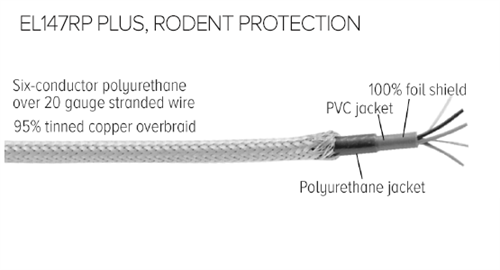

EL147RP Rodent Protection Cable
- Tinned copper overbraid provides superior rodent and abrasion deterrent
- Enhanced EMI/RFI protection
- Six-conductor industry-standard color code
- Ideal for truck and railroad-track scales
- Diameter: 0.33 in
- Temperature rating -22 °F to 176 °F (-30 °C to 80 °C)
- Jacket coating enhanced with a chemical coating “NAW” that is distasteful to rodents

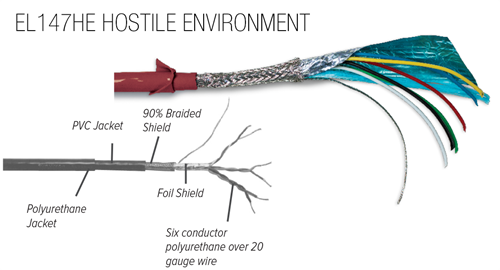

EL147HE Hostile Environment Cable
- Designed for use in hostile environments
- Polyurethane jacketing provides superior chemical and abrasion resistance
- RFI and EMI protected with foil overbraid shield
- Unmatched durability, yet extremely flexible
- All conductors are industry-standard color coded
- Diameter: 0.32 in
- Temperature rating: -22 °F to 176 °F (-30 °C to 80 °C)
- 500 V rating

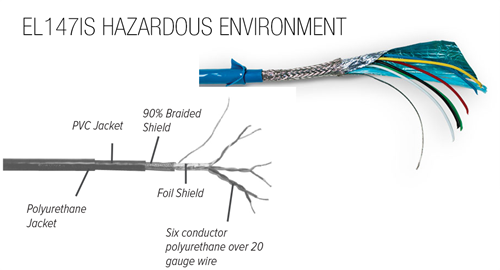

EL147IS Hazardous Environment Blue Jacket Cable
- Designed for intrinsically safe applications (must be wired according to Factory Mutual System-approved diagram)
- Polyurethane over PVC double jacketing provides superior chemical and abrasion resistance
- Both foil and braided wire shields for added RFI and EMI protection
- Six-conductor is industry-standard color coded (Also available three-conductor)
- Suited for longer runs where remote sense lines can be used
- Temperature rating: -22 °F to 176 °F (-30 °C to 80 °C)
- Diameter: 0.32 in
Options
| 15515 |
Cable,Load Cell 100ft EL147 6-Conductor UL, CSA, c UL approved |
|
|
| 15516 |
Cable,Load Cell 250ft EL147 6-Conductor UL, CSA, c UL approved |
|
|
| 15517 |
Cable,Load Cell 500ft EL147 6-Conductor UL, CSA, c UL approved |
|
|
| 15518 |
Cable,Load Cell 1000ft EL147 6-Conductor UL, CSA, c UL approved |
|
|
| 15495 |
Cable,Load Cell Custom EL147 6-Conductor per foot UL, CSA, c UL approved |
|
|
| 31475 |
Cable,Load Cell EL147RP Plus 6 Conductor Tinned Copper Overbraid per foot |
|
|
| 131964 |
Cable,Load Cell EL147RP Plus 6 Conductor Tinned Copper Overbraid 100ft |
|
|
| 131965 |
Cable,Load Cell EL147RP Plus 6 Conductor Tinned Copper Overbraid 250ft |
|
|
| 131966 |
Cable,Load Cell EL147RP Plus 6 Conductor Tinned Copper Overbraid 500ft |
|
|
| 131967 |
Cable,Load Cell EL147RP Plus 6 Conductor Tinned Copper Overbraid 1000ft |
|
|
| 15520 |
Cable,Load Cell 100ft EL147HE 6-Conductor Severe Environment |
|
|
| 15521 |
Cable,Load Cell 250ft EL147HE 6-Conductor Severe Equipment |
|
|
| 15522 |
Cable,Load Cell 500ft EL147HE 6-Conductor Severe Equipment |
|
|
| 15523 |
Cable,Load Cell 1000ft EL147HE 6-Conductor Severe Environment |
|
|
| 15496 |
Cable,Load Cell Custom EL147HE 6-Conductor Severe Environment per foot |
|
|
| 32817 |
Cable,EL147IS 6 Wire Severe Environment Blue Jacket |
|
|
| 72241 |
Cable,EL147IS 3 Wire Shielded, Blue Jacket, 20 AWG UL/CSA Recognized Colors=Brown, White, Green |
|
|
