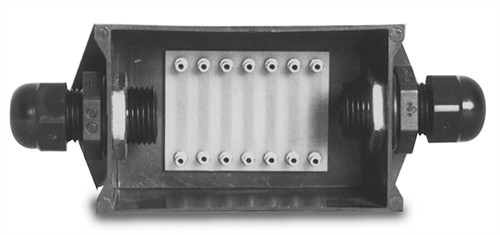

EL214/EL214T Cable Splicing Kit
$0.00
Download product PDF
Features
EL214
- Designed for a complete, professional transducer cable splice
- Prevents moisture from entering the load cell through the cable connector
- Each kit contains a high-impact plastic splicing box, liquid-tight cable fittings, circuit card, PTFE sleeving, pre-measured potting compound and complete instructions
- Solder terminals
EL214T
- Designed to accommodate cables larger than the EL214; all other dimensions and performance features are the same
- Solder terminals
Specifications
Dimensions:
(L × W × H)
3.00 × 1.00 × 1.50 in
Mounting Centers:
2.50 in |
Number of Connections:
7
Cable Diameter:
0.187 to 0.312 in |
Cure Time For Potting:
Epoxy-Polyamide resin cures in 2 hours at 73 °F (23 °C) |
Dimensions:
(W × H × D)
3.00 × 1.00 × 1.50 in
Mounting Centers:
2.50 in |
Number of Connections:
7
Cable Diameter:
0.187 to 0.312 in |
Cure Time For Potting:
Epoxy-Polyamide resin cures in 2 hours at 73 °F (23 °C) |
