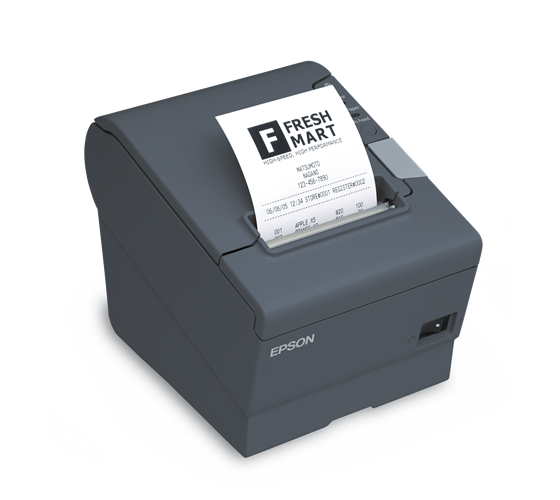

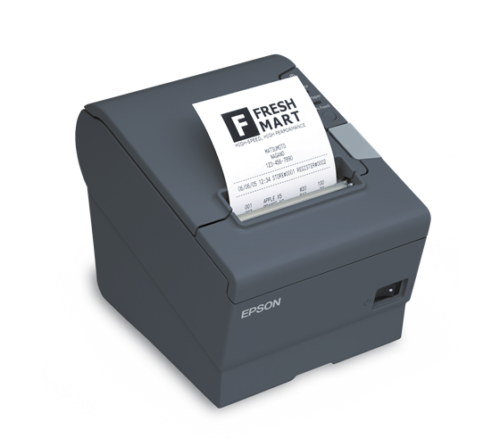

Epson TM-T88V Receipt Printer
$0.00
The Epson TM-T88V receipt printer is easy-to-use with features like drop-in paper loading, long-lasting auto cutter and auto-status back messages.
Download product PDF
Features
- High-speed printing of both text and graphics (up to 300 mm/second)
- True grayscale image printing
- Best-in-class reliability
- Convenient drop-in paper loading, auto cutter and status LEDs
- ENERGY STAR qualified
- Accommodates 58 mm or 80 mm paper roll
- Paper saving print features
- Improved cover protects from dust and debris
- OS support for Microsoft Windows 7, Vista, XP, 2000; Mac OS X v10.4,?v10.5, v10.6 (Power PC/Intel Processor) and Linux
Specifications
Interface:
Built-in USB and serial interface; built-in USB and Ethernet: or?built-in USB and Wireless LAN
Data Buffer:
Receive buffer: Selectable as 45 bytes or 4 KB using the DIP switch
Paper Dimensions:
80 mm: 3.13 in x 3.27 in diameter or 58mm: 2.26 in x 3.27 in diameter
Weight:
1.6 kg (3.53 lb)
Color:
Gray
Paper Thickness:
55-80 ?m
Print Speed:?
300 mm/s {11.81 inch/s}
Safety Standards:
EMI: FCC/ICES-003 Class A
Safety standards: UL60950-1/CSA C22.2 No.60950-1
Power:
24 VDC ?7%
Power Consumption:
Approx. 1.8 A (mean)
Temperature:
Operating : 31? F to 113? F (5? C to 45? C)
Storage: 14OF to 122? F (-10? C to 50? C)
Reliability:
MTBF: 360,000 hours
MCBF: 70 million lines
Overall Dimensions:
(W x D x H):?5.71 x 7.68 x 5.83 in
(145 x 195 x 148 mm)
Warranty:
One-year warranty
Options
| Part #23112 |
Product DescriptionPower Supply,Epson PS-180 TM-290II/TM295/TMU200 EU-T432-T1 90-264VAC To 24VDC INCLUDES AC POWER CABLE |
|
|
| Part #69917 |
Product DescriptionPaper Roll,Thermal Star TSP700, TSP600, 3.125″ Wide x 3.25″ Dia 7/16 Core 295 Foot Rolls |
|
|
| Part #83007 |
Product DescriptionPrinter,Parallel OPT Connect-It OPT, TM-U220 TM-T88IV |
|
|
| Part #15568 |
Product DescriptionCable,Kit 25 Pin RS232 IDS SP 25 Pin D-Sub Male To 25 Pin D-Sub Male |
|
|
| Part #15547 |
Product DescriptionCable,Universal Serial Interface (Both RS232/20mA) 25 Pin D-Sub Male To Blunt End 25-pin side-3-Red, 7-Black, 4 & 5 jumpered, 9-Green, 10-White |
? |
| Part #Consult |
Product DescriptionCustom RS-232 serial cable |
|
|
| Part #79074 |
Product DescriptionCable,USB 6ft USB-A(male) to USB-B(male) |
|
|
| Part #167545 |
Product DescriptionPrinthead,POS Receipt Printer TM-T88IV TM-T88V Epson |
|
Models
| Part #?117233 |
Product DescriptionPrinter,Thermal TM-T88V Epson Direct Thermal, RS-232, USB, PS-180 Power Supply, Gray |
|
| Part #?117234 |
Product DescriptionPrinter,Thermal TM-T88V Epson Direct Thermal, 802.11B Wireless WPA, USB, PS-180 Power Supply, Gray |
|
