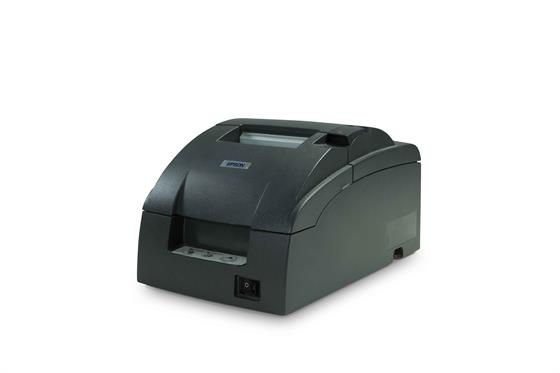

Epson TM-U220 Roll-Tape Printer

$0.00

The EPSON TM-U220 roll-tape printer is compact, reliable and fast, offering easy-to-use features important to the retail, restaurant and hospitality industries.

Download product PDF
Category:

Features

  • Nine-pin dot matrix print head
  • High-speed 4.7 to 6.0 lines per second printing
  • Drop-in paper set and auto paper loading
  • Automatically transmits changes in printer status
  • RS-232
  • Optional connect-it cartridges for parallel, USB, 10 Base-T
  • Uses MI88D mechanism

Specifications

Print Speed:
Approximately 4.7 lines per second

Column Capacity:
40/42 or 33/35 columns

Characters Per Line:?
40 characters

Print Area:?
3 in (76.2 mm) W

Character Formation:?
7 x 9 and 9 x 9 dot matrix

Character Height:
0.12 standard font

Character Set:
95 alphanumeric characters,
37 international characters,
128 x 12 graphic characters

Line Spacing:?
0.17 in (4.32 mm)

Print Head Life:?
Approximately 100 million strokes/pin

Form Thickness:?
0.002 in to 0.003 in (0.06 to 0.085 mm)

Ribbon:
Cassette-type purple ribbon. Ribbon life is approximately 1.5 million characters (continuous prints). Black ink also available.

Serial Interfaces:?
RS-232 compatible (25-Pin D-sub) or USB model

Baud Rates:
4800, 9600

Parity:?
7 or 8 bits, none, even or odd

Operating Temperature:?
32? F to 122? F (0? C to 50? C)

Stop Bits:?
1 or more

Handshaking:?
DTR/DSR or XON/XOFF control selectable

Overall Dimensions:
Type A: (W x D x H): 6.3 x 11.3 x 6.2 in
(160?x 286 x 157.5 mm)
Type D: ( W x D x H): 6.3 x 9.7 x 5.4 in
(160 x 248 x 138.5 mm)

Approvals:
UL listed, CSA-certified, CE marked

Warranty:
Two-year limited warranty (includes print head)

Options

Part #83007 Product DescriptionPrinter,Parallel OPT Connect-It OPT, TM-U220 TM-T88IV
Part #35666 Product DescriptionCover,Dust TM-U200, U220
Part #31296 Product DescriptionRibbon CRTG,Purple TM-300, TM-U200, TM-U220, M118D, ERC-30 ERC-34 ERC-38
Part #66499 Product DescriptionRibbon CRTG,TM300 TMU200 TM-U220, M118D ERC-30/34/38 Red/Black
Part #69916 Product DescriptionPaper Roll,3 Inch Wide 150ft Long 1 Ply White Bond 1/2 in Core 3 in OD
Part #69915 Product DescriptionPaper Roll,3 Inch Wide 90ft Long, 2 Ply White/Canary 1/2 In Core 3 In OD Star Epson
Part #35667 Product DescriptionLIT,Manual TM-U200 Operator
Part #72309 Product DescriptionPower Supply,Star 12VDC Vehicle Cigarette Lighter Plug 12VDC Input and Star Compatible Connector 24VDC Output
Part #23112 Product DescriptionPower Supply,Epson PS-180 TM-290II/TM295/TMU200 EU-T432-T1 90-264VAC To 24VDC INCLUDES AC POWER CABLE

Models

Part #?81076 Product DescriptionPrinter,Tape TM-U220D RS232 Serial, Universal Power Supply, US Power Cord Epson
Part #?81077 Product DescriptionPrinter,Tape TM-U220A RS232 Serial, Take Up Reel, Auto Cutter, Universal Power Supply, US Power Cord
Part #?164387 Product DescriptionPrinter,Tape TM-U220D USB USB, Universal Power Supply, US Power Cord Epson
