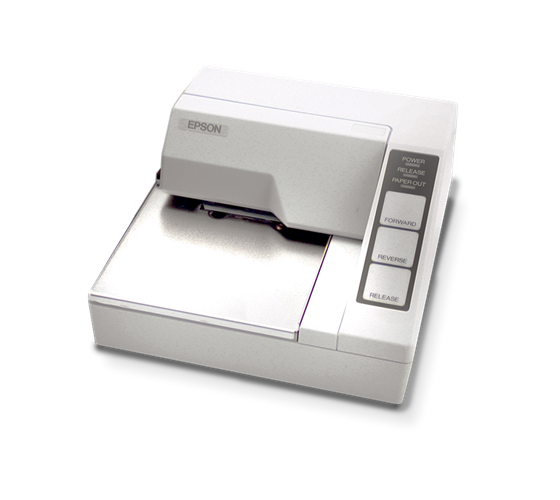

EPSON TM-U295 Ticket Printer

$0.00

The Epson TM-U295 ticket printer is a sound and economical choice for simple ticket printing needs.

Download product PDF
Category:

Features

  • High-speed 1.9 to 2.3 lines per second printing
  • Single copy or up to four-part multicopy ticket printing
  • Functions in slave capacity, printing information sent via RS-232

Specifications

Print Speed:
1.9 to 2.3 lines per second (5 x 7 character, 3 dot line spacing)

Column Capacity:
35/42 columns

Characters Per Line:?
35 standard font

Print Area:?
2.59 in W (65.8 mm W)

Character Formation:?
5 x 7 and 7 x 7 dot matrix

Character Height:?
0.11 standard font

Character Set:?
Full 96-character ASCII; with software control,
32 international characters,
128 x 2 graphic characters

Line Spacing:?
0.16 in (4.06 mm) software programmable in 1/60 in units

Print Head Life:?
Approximately 100 million strokes/pin

Form Thickness:?
Single-ply: 0.003 in to 0.009 in (0.08 mm to 0.23 mm)
Copy paper: 0.003 in to 0.014 in (0.08 mm to 0.36 mm)

Ribbon:
Cassette-type purple ribbon. Ribbon life is approximately 1.5 million characters (continuous prints). Black ink also available.

Serial Interfaces:?
RS-232 compatible (25-Pin D-sub)

Baud Rates:
1200, 2400, 4800, 9600, selectable

Parity:?
7 or 8 bits, none, even or odd

Stop Bits:?
1 or more

Handshaking:?
DTR/DSR or XON/XOFF control selectable

Overall Dimensions:
(W x D x H): 7.08?x 7.49?x 3.99 in
(180?x 190.5?x 101.5 mm)

Approvals:
UL listed, CSA certified, CE marked

Warranty:
One-year limited warranty (includes print head)

Options

Part #29582 Product DescriptionCover,Dust TM-290II TM-295
Part #29584 Product DescriptionRibbon CRTG,ERC-27 Purple TM-290II TM-295 Epson M66SA, Fairbanks 50-3930 50-3960, Toledo 8807
Part #29583 Product DescriptionRibbon CRTG,ERC-27 Black TM-290II TM-295 Epson M66SA, Fairbanks 50-3930 50-3960
Part #23112 Product DescriptionPower Supply,Epson PS-180 TM-290II/TM295/TMU200 EU-T432-T1 90-264VAC To 24VDC INCLUDES AC POWER CABLE
Part #34344 Product DescriptionLIT,Manual TM-295 Operate
Part #72309 Product DescriptionPower Supply,Star 12VDC Vehicle Cigarette Lighter Plug 12VDC Input and Star Compatible Connector 24VDC Output ?

Models

Part #?23113Product DescriptionPrinter,Ticket TMU295 Epson Cool White 24VDC W/115-230VAC External Power Supply

Part #?35891Product DescriptionPrinter,Ticket TM295 Kit w/115-230VAC External Power Supply And Blunt End Printer Cable

Part #?33816Product DescriptionPrinter,Ticket TMU295 Epson 24VDC
