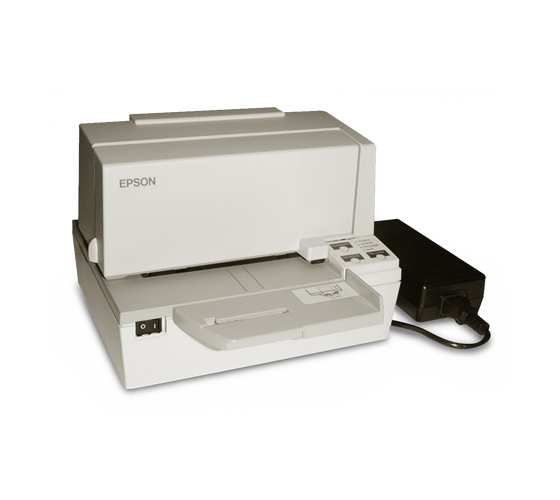

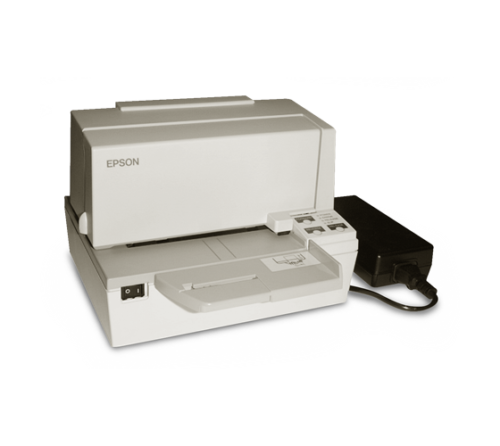

EPSON TM-U590 Ticket Printer

$0.00

EPSON TM-U590 is a wide-frame printer able to handle a broad range of printing tasks with ease.

Download product PDF
Category:

Features

  • High-speed 2.8 lines per second printing for 88 columns of print; 4.9 lines per second printing for 40 columns
  • Single copy and up to five-part
  • Wide slip capability of A4 size documents
  • Functions in slave capacity, printing information sent via RS-232
  • 5.2 in wide print area

Specifications

Print Method:
Nine-pin, serial impact dot matrix

Font:
7 x 9 and 9 x 9

Column Capacity:
88/66 columns

Character Size:
(W x H): 0.05 in x 0.12 in/0.06 in x 0.12 in
(1.3 mm x 3.1 mm/1.6 mm x 3.1 mm)

Character Set:
Alphanumeric: 95
International: 32
Graphic: 128 x 10

Characters Per Inch:
16.7 CPI/12.5 CPI

Serial Interfaces:?
RS-232/Bidirectional parallel/RS-485

Data Buffer:
4K/69 bytes

Paper Dimensions:
(W x L): 2.76 x 2.76 in/8.26 x 11.69 in
(70?x 70 mm/210 x 297 mm)

Paper Thickness:
0.003 in to 0.014 in (0.09 mm?to 0.36 mm)

Copy Capabilities:
One original and four copies

Power:
24 VDC ?10%

Power Consumption:
Approx. 43 W
Drawer Kickout Device Function:
Two drives

Ribbon:
ERC-31 (purple)

Overall Dimensions:
(W x D x H): 9.92 x 10.47 x 7.28 in
(252 x 266 x 185 mm)

Approvals:
CE marked, FCC class A, VCC #1,
UL and C-UL listed, TUV

Warranty:
One-year limited warranty (includes print head)

Options

Part #68525 Product DescriptionRibbon CRTG,ERC-31 Purple TM-U590, TMU-925, TMU-930, TMU-935, Cardinal P-400, Toledo 8808
Part #104145 Product DescriptionRibbon CRTG,TM-U590 Black
Part #23112 Product DescriptionPower Supply,Epson PS-180 TM-290II/TM295/TMU200 EU-T432-T1 90-264VAC To 24VDC INCLUDES AC POWER CABLE
Part #111840 Product DescriptionCover,Dust TM-U590
Part #68562 Product DescriptionManual,TM-U590 Operators
Part #68725 Product DescriptionManual,TM-U590 Technical
Part #72309 Product DescriptionPower Supply,Star 12VDC Vehicle Cigarette Lighter Plug 12VDC Input and Star Compatible Connector 24VDC Output

Models

Part #?128726?Product Description?Printer,Ticket TM-U590 Epson, 24 VDC with 115-230V Power Supply, Euro Plug

Part #?68502?Product Description?Printer,Ticket TM-U590 Cool White Epson 24VDC w/115-230vac Power Supply

Part #?164391?Product Description?Printer,Ticket TM-U590 Epson USB, 24VDC w/115-230vac Power Supply
