Ethernet TCP/IP interface 720i and 920i

$0.00

Ethernet TCP/IP Interface for internal installation in 720i, 820i and 920i digital weight indicators.

Download product PDF
Categories: ,

Features

  • Supports any serial devices with seven or eight data bits requiring Ethernet access
  • Compact size for internal installation in 720i and 920i indicators
  • Can be used in other applications requiring five-volt power supplied
  • 10/100 megabyte through RJ45 connector or wireless option
  • HTTP, serial, telnet and SNMP management

Specifications

Power:
5 VDC, 250 mA

Supported Protocols:
ARP, UDP, TCP, Telnet, SNMP, ICMP,
HTTP, BOOTP, DHCP and TFTP

 Network Interface:
Ethernet: RJ-45 (10/100 Base-T) or AUI

Serial Line Formats:
Characters: 7 or 8 data bits
Stop bits: 1 or 2
Parity: odd, even, none

 Data Rates:
Single port, 300 bps to 115.2 Kbps default 9,600

Dimensions:
2.00 × 1.90 × 0.75 in
(52 × 49 × 19 mm)

Temperature Range:
41 °F to 122 °F (5 °C to 50 °C)

Options

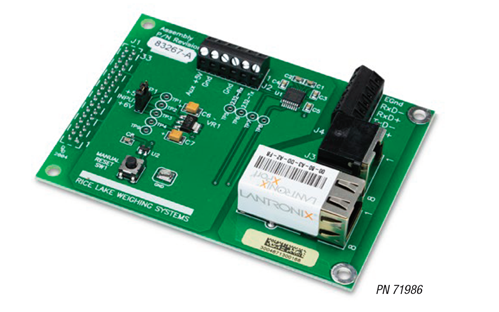

71986 Ind Opt,Ethernet TCP/IP Interface Card, Embedded Device Server 10/100baseT 920i, 820i & 720.
206271 Ind Opt,Wireless LAN Card RS232/WiFi Interface 802.11 A/B, 10/100 Base-T, XPico for 920i
206272 Ind Opt,Wireless LAN Card RS232/WiFi Interface 802.11 A/B 10/100 XPico for CW90,720i,iQube2
