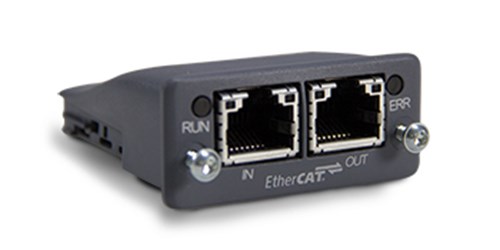

EthernetCAT Interface 880/882D/882IS/1280
$0.00
Download product PDF
Features
- Two RJ-45 EtherCAT 100 Mbit/s ports available simultaneously
- Can be wired in several topologies including star, line or tree
- Has built-in redundancy that compensates for potential breaks in wiring
- No network switches necessary, can be wired directly from device to device
- Includes self-terminating network
- Onboard diagnostic LEDs
- CE, cULus and RoHS compliant
Specifications
Power:
3.3 VDC, 500 mA
Connector Type:
RJ-45 (dual port) |
Diagnostic LEDs:
Module status and network status
Dimensions:
2.04 × 1.97 × 0.86 in
(52 × 50 × 22 mm) |
Temperature Range:
-40 °F to 158 °F (-40° C to 70 °C) |
Options
| 179158 |
Ind Opt,EtherCat Model 880 Indicator |
|
|
| 179533 |
1280 Opt,EtherCAT CompactCom Option |
|
|
| 190535 |
882 Opt,EtherCAT CompactCom Option |
|
|
