FHD Series, Stationary

$0.00

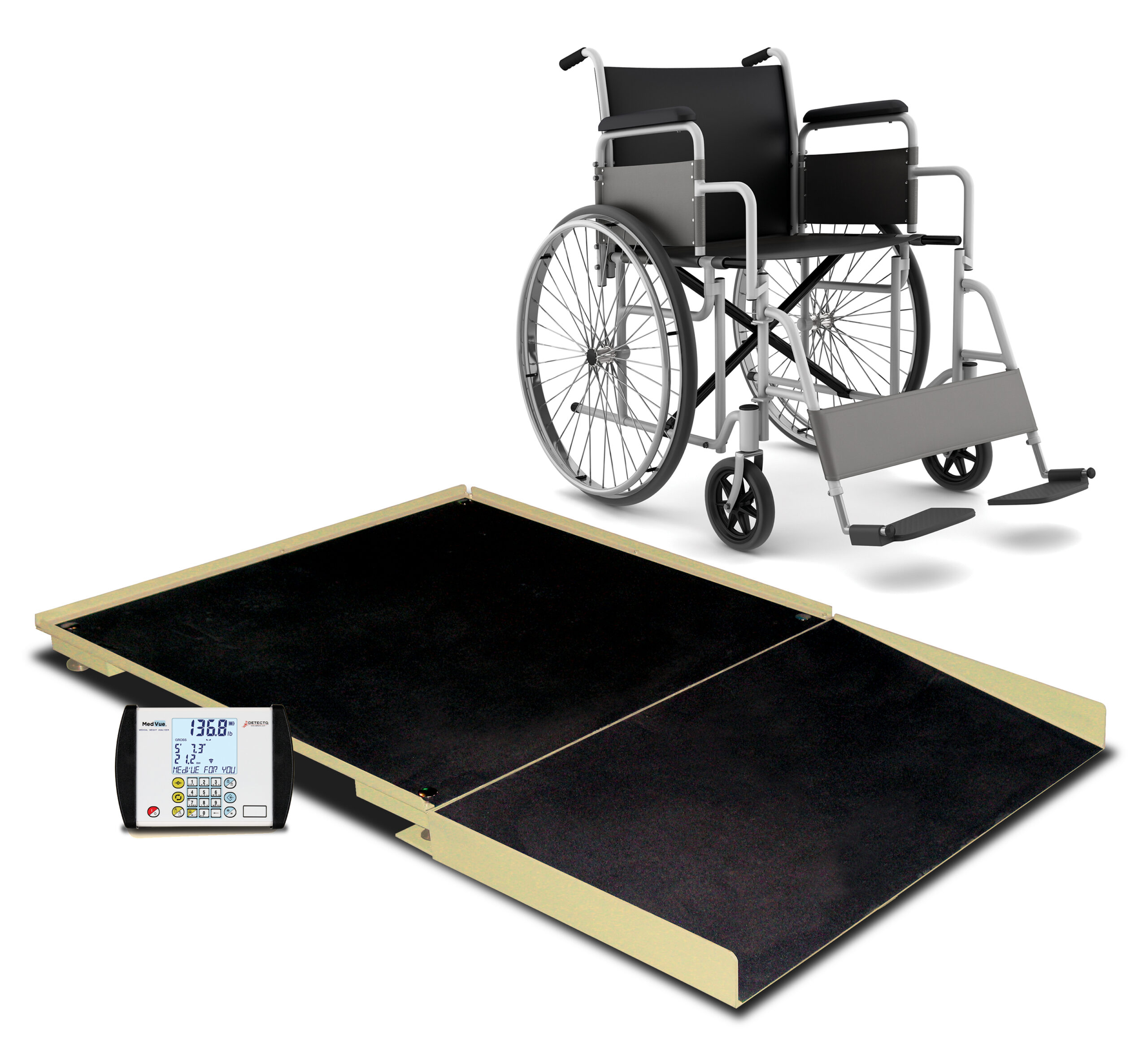

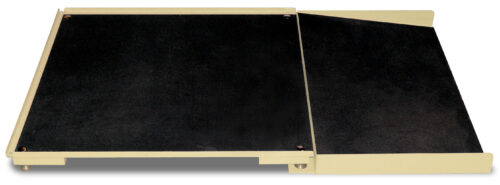

The large slip-resistant, low-profile platform of Detecto’s FHD scales accommodate walk-on patients, wheelchairs, straight-legged chairs, or walkers. These scales feature a high 1,000 lb / 450 kg capacity with your choice of 36 inch (91 cm) or 48 inch (122 cm) square platforms. The weight indicator provides numeric keypad for entry of wheelchair tare weights, EMR/EHR ready output via serial, USB or optional Ethernet ports to printers or PCs (optional Wi-Fi also available). This scale can only be used for top of floor installations. Please consult factory for pit type installations. 28.5 inch (72 cm) long ramp and 15 ft (4.5 m) indicator cable included. AC adapter optional (listed under Options tab).

Download product PDF
Category:

Features

  • 1000 lb/450 kg Capacity
  • 28.5 in/72 cm Access Ramp
  • 6 C Batteries (Not Included)
  • EMR/EHR Ready
  • Low-Profile Design
  • Output to Printer or PC
  • Wi-Fi and Ethernet Optional

Specifications

Capacity: 1,000 lb x 0.2 lb / 450 kg x 0.1 kg
Platform Size (133): 36 in / 91 cm square
Platform Size (144): 48 in / 122 cm square
Ramp Length: 28.5 in / 72 cm
Indicator Cable Length: 15 ft / 4.5 m
Display: 5 digit, seven segment, 7/8 inch (22.23 mm) high LCD weight digits
Keyboard: 19 key, color-coded, sealed membrane
Power: 6 “C” cell Alkaline, Ni-Cad or NiMH batteries (not included) OR an optional 12 VDC 1.25A wall plug-in AC power adapter (Detecto part number MV1PWR)
Connectivity: 6 “C” cell Alkaline, Ni-Cad or NiMH batteries (not included) OR an optional 12 VDC 1.25A wall plug-in AC power adapter (Detecto part number MV1PWR)

Options

MV1PWR Medical Grade Power Supply With US Plug Call For Pricing

Models

FHD-133-II Floor Scale, 3′ x 3′, 1000 Lb Capacity, Ramp, MV1 Indicator Call For Pricing
FHD-133-II-AC Floor Scale, 3′ x 3′, 1000 Lb Capacity, Ramp, MV1 Indicator, Includes AC Adapter Call For Pricing
FHD-133-II-C Floor Scale, 3′ x 3′, 1000 Lb Capacity, Ramp, MV1 Indicator, BT / WiFi Call For Pricing
FHD-133-II-C-AC Floor Scale, 3′ x 3′, 1000 Lb Capacity, Ramp, MV1 Indicator, BT / WiFi, AC Adapter Call For Pricing
FHD-144-II Floor Scale, 4′ x 4′, 1000 Lb Capacity, Ramp, MV1 Indicator Call For Pricing
FHD-144-II-AC Floor Scale, 4′ x 4′, 1000 Lb Capacity, Ramp, MV1 Indicator, Includes AC Adapter Call For Pricing
FHD-144-II-C Floor Scale, 4′ x 4′, 1000 Lb Capacity, Ramp, MV1 Indicator, BT / WiFi Call For Pricing
FHD-144-II-C-AC Floor Scale, 4′ x 4′, 1000 Lb Capacity, Ramp, MV1 Indicator, BT / WiFi, AC Adapter Call For Pricing
