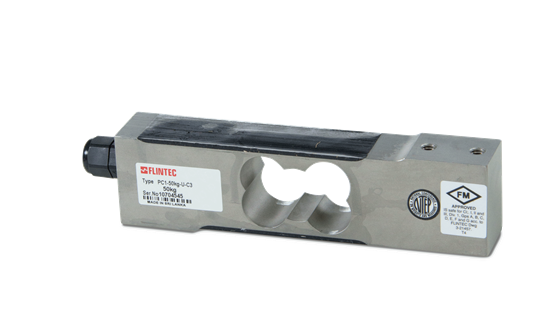

Flintec PC1 Stainless Steel, Single Point Load Cell

$0.00

PC1 load cells offer stainless steel and an environmentally protected seal, making these cells suitable for use in tough industrial environments. Capacities range from 10 kg to 200 kg (22 lb to 441 lb).

Download product PDF
Categories: ,

Specifications

Full Scale Output:
2.0 mV/V

Output Resistance:
330 (± 25) ohms

Input Resistance:
390 (± 20) ohms

Material/Finish:
Stainless steel

Temperature:
Compensated range
14°F to 104°F (-10°C to 40°C)
Operating range
0° F to 150° F (-18° C to 65° C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
200% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5-10 VDC (15 V maximum)

Combined Error:
0.02% full scale

Insulation Resistance:
5,000 megohms

Cable Length:
10 ft (3.1 m)

Cable Diameter:
0.196 polyurethane jacket

Cable Color Code:
Green +Excitation
Black –Excitation
White +Signal
Red –Signal
Yellow Shield

Max Platform Size:
18 in x 18 in

Warranty:
One-year limited warranty

Approvals:
FM
NTEP
OIML

Models

41821 Load Cell,SPT PC1-10kg-C3 10ft Flintec 2mV/V 350 OHM EW SST NTEP 1:4500 III SEND
36219 Load Cell,SPT PC1-15kg-C3 10ft Flintec 2mV/V 350 OHM EW SST NTEP 1:4500 III S
36220 Load Cell,SPT PC1-30kg-C3 10ft Flintec 2mV/V 350 OHM EW SST NTEP 1:4500 III S
36221 Load Cell,SPT PC1-50kg-C3 3M Flintec 2mV/V 350 OHM EW SST NTEP 1:4500 III S
36222 Load Cell,SPT PC1-75kg-C3 10ft Flintec 2mV/V 350 OHM EW SST NTEP 1:4500 III S
