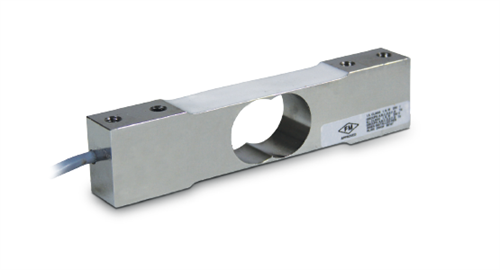

Flintec PC3 Stainless Steel, Single Point Load Cell

$0.00

Download product PDF
Categories: ,

Features

A stainless steel, single point load cell. Has an IP67 rating and is environmentally sealed, making it ideal for harsh environments, Capacities range from 7 kg to 150 kg. Complete with 10 ft of load cell cable.

Specifications

Full Scale Output:
2 mV/V

Output Resistance:
350 (± 10) ohm

Input Resistance:
385 (± 15) ohm

Material Finish:
Stainless Steel

Temperature Compensation:
Compensated Range
14 °F to 104 °F (-10 °C to 40 °C)
Operating Range
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally Sealed, IP67

Safe Overload:
150% full scale

Rated Excitation:
5 to 10 VDC

Insulation Resistance:
5,000 megohm

Max Platform Size:
7 to 30 kg: 350 × 350 mm
60 to 150 kg: 450 × 450 mm

Combined Error:
0.02% full scale

Cable Length:
10 ft

Cable Diameter:
0.140 in
Polyurethane jacket

Color Code:
Green +Excitation
Black -Excitation
White +Signal
Red -Signal
Yellow Shield

Warranty:
One-year limited

Approvals:
FM
NTEP
OIML

Options

202686 Load Cell, SPT Flintec PC3-7kg 10ft 2 mv/v 350 Ohm EW NTEP III 3S C3 SST IP67 FM OIML C3
202687 Load Cell, SPT Flintec PC3-10kg 10ft 2 mv/v 350 Ohm EW NTEP III 3S C3 SST IP67 FM OIML C3
202688 Load Cell, SPT Flintec PC3-30kg 10ft 2 mv/v 350 Ohm EW NTEP III 3S C3 SST IP67 FM OIML C3
202689 Load Cell, SPT Flintec PC3-60kg 10ft 2 mv/v 350 Ohm EW NTEP III 3S C3 SST IP67 FM OIML C3
202690 Load Cell, SPT Flintec PC3-100kg 10ft 2 mv/v 350 Ohm EW NTEP III 3S C3 SST IP67 FM OIML C3
202691 Load Cell, SPT Flintec PC3-150kg 10ft 2 mv/v 350 Ohm EW NTEP III 3S C3 SST IP67 FM OIML C3
