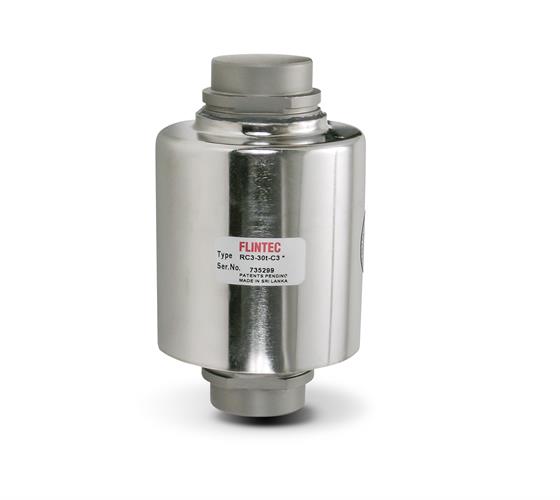

The RC3 is a stainless steel, hermetically sealed load cell. This rocker design provides superior performance and full hermetic design in applications where moisture and high humidity are problems. Available in capacities from 7.5 t to 50 t.
The kits for the RC3 cells are on page 105. Cups 111365 and 111366 are used in kits 129844 and 111367. Cups 154107 and 154106 are used in kits 154347, 154348 and 154349.
111365 Load Cup, Flintec RC3-50t Upper alloy steel cups to retrofit Mettler Toledo model 760 load cell. Used in kits 129844 and 111367
111366 Load Cup, Flintec RC3-50t Lower alloy steel cup to retrofit Mettler Toledo model 760 load cell. Used in kits 129844 and 111367
154107 Load Cup,Upper 3.75 dia. with 2.480 dia. x .687 long boss. Used in kits 154347, 154348 and 154349
154106 Load Cup,Lower 4.00 dia. with 2.480 dia. x .687 long boss. Used in kits 154347, 154348 and 154349
Models
168944 Load Cell, CSR RC3 7.5t C3 7.5t 40FT Flintec 2mv/v 1000 Ohm EW SST HS FM IP68/69K NTEP 10 IIIL M/6 III M
168946 Load Cell, CSR RC3-15t C3 15t 40FT Flintec 2mv/v 1000 Ohm EW SST HS FM IP68/69K NTEP 10 IIIL M/6 III M
168947 Load Cell, CSR RC3-22.5t C3 22.5t 40FT Flintec 2mv/v 1000 Ohm EW SST HS FM IP68/69K NTEP 10 IIIL M/6 III M
84203 Load Cell,CSR RC3-30t-C3 30t 18M Flintec 2mv/v 1000 Ohm EW SST HS FM IP68/IP69K NTEP 10000 IIIL M/6000 III M
84204 Load Cell,CSR RC3-40t-C3 40t 18M Flintec 2mv/v 1000 Ohm EW SST HS FM IP68/IP69K NTEP 10000 IIIL M/6000 III M
84205 Load Cell,CSR RC3-50t-C3 50t 18M Flintec 2mv/v 1000 Ohm EW SST HS FM IP68/IP69K NTEP 10000 IIIL M/6000 III M
