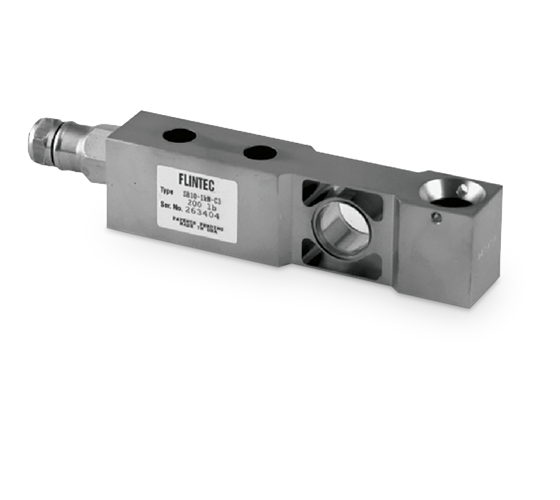

Flintec SB10 Stainless Steel, Single-Ended Beam Load Cell

$0.00

The SB10 load cell is used in the 2.3 kN Paramount® assemblies. This stainless steel, hermetically sealed load cell provides full IP68 sealing protection for the harshest environments. Ideal for use in multiple-cell floor scale, tank and hopper applications. The unique millivolt/volt/ohm factory calibration assures matched outputs for easy field replacement and calibrations. The capacity of this model is 2.5 kN. Each unit is supplied with 10 ft (3.1 m) of load cell cable.

Download product PDF
Categories: ,

Specifications

Full Scale Output:
2.0 mV/V

Output Resistance:
1,000 (± 2) ohm

Input Resistance:
1,100 (± 50) ohm

Material/Finish:
Stainless steel

Temperature:
Operating range
0° F to 150° F (-18° C to 65° C)

Seal Type:
Hermetically sealed, IP69K

Safe Overload:
200% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5-10 VDC (15 V maximum)

Nonlinearity:
0 to -0.03% full scale

Hysteresis:
0 to +0.05% full scale

Insulation Resistance:
10,000 megohms

Deflection at Capacity:
0.008 in (0.15 mm) (2.3 kN)

Cable Length:
10 ft (3.1 m)

Cable Diameter:
0.196 polyurethane jacket

Cable Color Code:
Green +Excitation
Black –Excitation
White +Signal
Red –Signal
Yellow Shield

Warranty:
One-year limited warranty

Approvals:
OIML

Models

38215 Load Cell,SEB SB10-2.3KN- C3 2.3KN (520lb) 10ft Flintec 2mV/V 1,000 OHM EW SST HS IP68
17703 Adapter,Conduit 1/2-14NPT Male For SB4/UB1 SST
