Flintec SB14 Stainless Steel, Single-Ended Beam Load Cell

$0.00

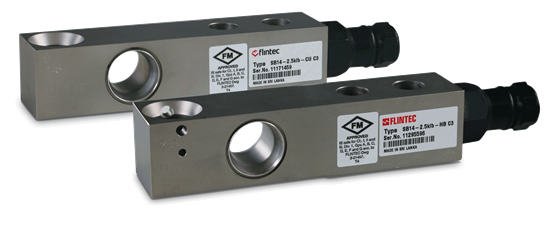

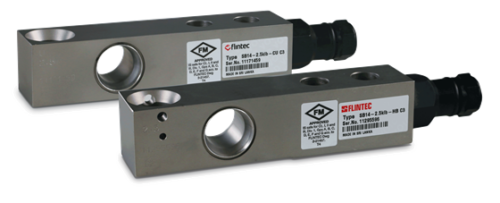

The SB14 load cell is a stainless steel, fully hermetically sealed, single-ended beam suitable for the harshest environments. Capacities range from 500 lb to 5,000 lb. Complete with 10ft (3.1m) of load cell cable.

Download product PDF
Categories: ,

Specifications

Full Scale Output:
2.0 mV/V

Output Resistance:
1,000 (± 2) ohm

Input Resistance:
1,100 (± 50) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated range
14°F to 104°F (-10°C to 40°C)
Operating range
0° F to 150° F (-18° C to 65° C)

Seal Type:
Hermetically sealed, IP69K

Safe Overload:
200% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5-10 VDC (15 V maximum)

Insulation Resistance:
5,000 megohms

Combined Error:
± 0.03% full scale

Cable Length:
10 ft (3.1 m)

Cable Diameter:
0.196 polyurethane jacket

Cable Color Code:
Green +Excitation
Black –Excitation
White +Signal
Red –Signal
Yellow Shield

Warranty:
One-year limited warranty

Approvals:
FM
NTEP
OIML (Available upon request)

Models

CU Version

41167 Load Cell,SEB SB14-500lb 10ft Flintec 2mV/V 1000 OHM NTEP III 5 M HS SST IP69K
41168 Load Cell,SEB SB14-1000lb C3 10ft Flintec 2mV/V 1000 OHM NTEP III 5 M SST HS IP69K
41169 Load Cell,SEB SB14-2.5K C3 2,500lb 10ft Flintec 2mV/V 1000 OHM NTEP III 5 M HS SST IP69K
41170 Load Cell,SEB SB14-5000lb C3 10ft Flintec 2mV/V 1000 OHM NTEP III 5 M HS SST IP69K

HB Version

119556 Load Cell,SEB SB14-500lb 500lb 10ft 2mv/v 1000 Ohm NTEP 5M C3 IP69K SST HS Blind Hole Flintec
119557 Load Cell,SEB SB14-1K 1000lb 10ft 2mv/v 1000 Ohm NTEP 5M C3 IP69K SST HS Blind Hole Flintec
119558 Load Cell,SEB SB14-2.5K 2500lb 10ft 2mv/v 1000 Ohm NTEP 5M C3 IP69K SST HS Blind Hole Flintec
119559 Load Cell,SEB SB14-5k 5000lb 10ft 2mv/v 1000 Ohm NTEP 5M C3 IP69K SST HS Blind Hole Flintec
