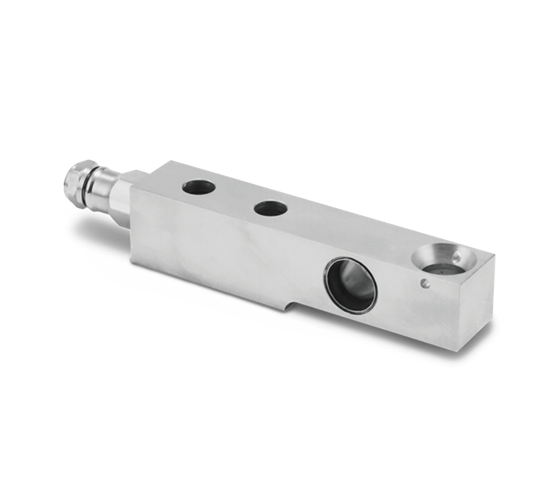

Flintec SB4 Stainless Steel, Single-Ended Beam Load Cell

$0.00

The SB4 stainless steel, single-ended beam is designed for multiple-cell applications such as floor scales and tank, bin and hopper weighing systems. It is used exclusively in Rice Lake Weighing Systems’ Paramounts® HS mounting systems. Millivolt/volt/ohm factory calibration assures matched outputs for easy calibration. It features true hermetic sealing of both the strain gauge area and cable entry, providing the ultimate in protection from outside elements. Includes field-replaceable load cell cable to simplify cable and load cell repairs. Available in both NTEP Certified and Non-NTEP Certified ranges 5 kN to 100 kN.

Download product PDF
Categories: ,

Specifications

Full Scale Output:
2.0 mV/V ± 0.07%
Matched outputs via mV/V/ohm calibration

Output Resistance:
1,000 (± 2) ohm

Input Resistance:
1,100 (± 50) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated range
14°F to 104°F (-10°C to 40°C)
Operating range
0° F to 150° F (-18° C to 65° C)

Seal Type:
Hermetically sealed, IP69K

Safe Overload:
200% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5-10 VDC (15 V maximum)

Combined Error:
± 0.03% full scale

Insulation Resistance:
10,000 megohms

Deflection at Capacity:
10 kN=0.012 in (0.3 mm)
23 kN=0.02 in (0.5 mm)
50 kN=0.012 in (0.3 mm)
100 kN=0.016 in (0.4 mm)

Cable Length:
5 kN-23 kN=10 ft (3.1 m)
50 kN-100 kN=15 ft (4.6 m)
Also available in 30 ft.

Cable Diameter:
0.196 polyurethane jacket

Cable Color Code:
Green +Excitation
Black –Excitation
White +Signal
Red –Signal
Yellow Shield

Warranty:
One-year limited warranty

Approvals:
FM
NTEP
OIML

Models

1. NTEP Certified

26662 Load Cell,SEB SB4-5KN-C3 5KN (1,125 lb) 10ft Flintec 2mV/V 1000 OHM EW NTEP III 3S/5M SST HS IP69K
26663 Load Cell,SEB SB4-10KN-C3 10KN (2,250 lb) 10ft Flintec 2mV/V 1000 OHM EW NTEP III 3S/5M SST HS IP69K
26664 Load Cell,SEB SB4-23KN-C3 23KN (5,200 lb) 10ft Flintec 2mV/V 1000 OHM EW NTEP III 3S/5M SST HS IP69K
26665 Load Cell,SEB SB4-50KN-C3 50KN (11,250 lb) 15ft Flintec 2mV/V 1000 OHM EW NTEP III 3S/5M SST HS IP69K

2. Non-NTEP Certified

17390 Load Cell,SEB SB4-5KN-C1 5kn (1125lb) 10ft 2mv/v 1000 Ohm EW IP69K SST HS Flintec
17391 Load Cell,SEB SB4-10KN-C1 10kn (2250lb) 10ft 2mv/v 1000 Ohm EW IP69K SST HS Flintec
17392 Load Cell,SEB SB4-23KN-C1 23kn (5200lb) 10ft 2mv/v 1000 Ohm EW IP69K SST HS Flintec
17393 Load Cell,SEB SB4-50KN-C1 50kn (11,250lb) 15ft 2mv/v 1000 Ohm EW IP69K SST HS Flintec
17394 Load Cell,SEB SB4-100KN- C1 100kn (22,500lb) 15ft 2mv/v 1000 Ohm EW IP69K SST HS Flintec

3. NTEP Certified (30 ft cable)

100164 Load Cell,SEB SB4-5KN-C3 5KN (1125lb) 30ft 2mv/v 1000 Ohm NTEP III 3S/5M EW IP69K SST HS Flintec
100165 Load Cell,SEB SB4-10KN-C3 10KN (2250lb) 30ft 2mv/v 1000 Ohm NTEP III 3S/5M EW IP69K SST HS Flintec
100166 Load Cell,SEB SB4-23KN-C3 23KN (5200lb) 30ft 2mv/v 1000 Ohm NTEP III 3S/5M EW IP69K SST HS Flintec
100167 Load Cell,SEB SB4-50KN-C3 50KN (11,250lb)30ft 2mv/v 1000 Ohm NTEP III 3S/5M EW IP69K SST HS Flintec

4. Non-NTEP Certified (30 ft cable)

100169 Load Cell,SEB SB4-5KN-C1 5kn (1125lb) 30ft 2mv/v 1000 Ohm EW IP69K SST HS Flintec
100170 Load Cell,SEB SB4-10KN-C1 10KN (2250lb) 30ft 2mv/v 1000 Ohm EW IP69K SST HS Flintec
100171 Load Cell,SEB SB4-23KN-C1 23KN (5200lb) 30ft 2mv/v 1000 Ohm EW IP69K SST HS Flintec
100173 Load Cell,SEB SB4-50KN-C1 50KN (11,250lb) 30ft 2mv/v 1000 Ohm EW IP69K SST HS Flintec
100168 Load Cell,SEB SB4-100KN C1 100KN (22500lb) 30ft 2mv/v 1000 Ohm EW IP69K SST HS Flintec
