Flintec SB5 Stainless Steel, Single-Ended Beam Load Cell

$0.00

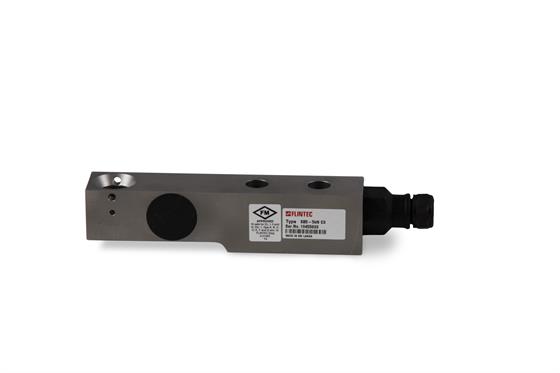

The SB5 stainless steel single-ended beam is designed for multiple-cell applications such as floor scales and tank, bin and hopper weighing systems. It is used exclusively in Rice Lake Weighing Systems’ Paramounts® EP mounting systems. Millivolt/volt/ohm factory calibration assures matched outputs for easy calibration. Available in both NTEP Certified and Non-NTEP Certified ranges 5 kN to 100 kN.

Download product PDF
Categories: ,

Specifications

Full Scale Output:
2.0 mV/V ± 0.07%
Matched outputs via mV/V/ohm calibration

Output Resistance:
1,000 (± 2) ohm

Input Resistance:
1,100 (± 50) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated range
14°F to 104°F (-10°C to 40°C)
Operating range
0° F to 150° F (-18° C to 65° C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
200% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5-10 VDC (15 V maximum)

Combined Error:
± 0.03% full scale

Insulation Resistance:
10,000 megohms

Deflection at Capacity:
5 kN=0.008 in (0.2 mm)
10 kN=0.012 in (0.31 mm)
20 kN=0.02 in (0.5 mm)
50 kN=0.012 in (0.31 mm)

Cable Length:
5 kN-20 kN=10 ft (3.1 m)
50 kN-100 kN=15 ft (4.6 m)

Cable Diameter:
0.196 polyurethane jacket

Cable Color Code:
Green +Excitation
Black –Excitation
White +Signal
Red –Signal
Yellow Shield

Warranty:
One-year limited warranty

Approvals:
FM
NTEP
OIML

Models

1. NTEP Certified

33387 Load Cell,SEB SB5-5KN-C3 5KN (1,125lb) 10ft Flintec 2mV/V 1000OHM EW NTEP III 3S/5M SST
33388 Load Cell,SEB SB5-10KN-C3 10KN (2,250lb) 10ft Flintec 2mV/V 1000OHM EW NTEP III 3S/5M SST
33389 Load Cell,SEB SB5-20KN-C3 20KN (4,500lb) 10ft Flintec 2mV/V 1000OHM EW NTEP III 3S/5M SST
33390 Load Cell,SEB SB5-50KN-C3 50KN (11,250lb) 15ft Flintec 2mV/V 1000OHM EW NTEP III 3S/5M SST

2. Non-NTEP Certified

33391 Load Cell,SEB SB5-100KN- C1 100KN (22,500lb) 15ft Flintec 2mV/V 1000OHM EW SST

3. NTEP Certified (30 ft cable)

100174 Load Cell,SEB SB5-5KN-C3 5kn (1125lb) 30ft 2mv/v 1000 Ohm NTEP III 3S/5M EW IP69K SST HS Flintec
100175 Load Cell,SEB SB5-10KN-C3 10KN (2250lb) 30ft 2mv/v 1000 Ohm NTEP III 3S/5M EW IP68 SST HS Flintec
100176 Load Cell,SEB SB5-20KN-C3 20KN (4500lb) 30ft 2mv/v 1000 Ohm NTEP III 3S/5M EW IP68 SST HS Flintec
100177 Load Cell,SEB SB5-50KN-C3 50KN (11,250lb) 30ft 2mv/v 1000 Ohm NTEP III 3S/5M EW IP68 SST HS Flintec

4. Non-NTEP Certified (30 ft cable)

100178 Load Cell,SEB SB5-100KN C1 100kn (22500lb) 30ft 2mv/v 1000 Ohm EW IP68 SST HS Flintec
