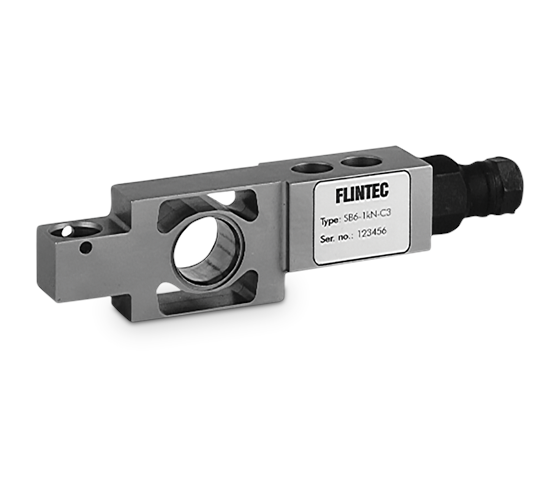

Flintec SB6 Stainless Steel, Single-Ended Beam Load Cell

$0.00

The SB6 load cell is a stainless steel, fully hermetically sealed, single-ended beam suitable for the harshest environments. The special loading hole provides an excellent price-to-performance ratio, and also allows a very lowprofile design. Capacities range from 0.2 kN-2 kN. Complete with 10ft (3.1m) of load cell cable.

Download product PDF
Categories: ,

Specifications

Full Scale Output:
2.0 mV/V

Output Resistance:
1,000 (± 2) ohm

Input Resistance:
1,100 (± 50) ohm

Material/Finish:
Stainless steel

Temperature:
Operating range
0° F to 150° F (-18° C to 65° C)

Seal Type:
Hermetically sealed, IP68

Safe Overload:
200% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5-10 VDC (15 V maximum)

Combined Error:
0.01% full scale

Insulation Resistance:
5,000 megohms

Cable Length:
10 ft (3.1 m)

Cable Diameter:
0.196 polyurethane jacket

Cable Color Code:
Green +Excitation
Black –Excitation
White +Signal
Red –Signal
Yellow Shield

Warranty:
One-year limited warranty

Approvals:
FM
OIML

Models

41163 Load Cell,SEB SB6-.2kn-C3 20.4kg 10ft Flintec 2mV/V 1000 OHM OIML C3 SST HS IP68
41164 Load Cell,SEB SB6-.5KN-C3 .5KN 10ft Flintec 2mV/V 1000 OHM OIML C3 SST HS IP68
41165 Load Cell,SEB SB6-1KN-C3 1KN 10ft Flintec 2mV/V 1000 OHM OIML C3 SST HS IP68
41166 Load Cell,SEB SB6-2KN-C3 204kg 10ft Flintec 2mV/V 1000 OHM OIML C3 SST HS IP68
