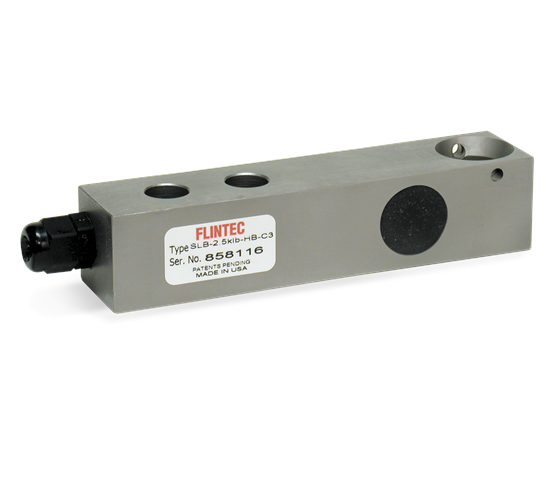

Flintec SLB Stainless Steel, Single-Ended Beam Load Cell

$0.00

This stainless steel, single-ended beam has one of the highest NTEP Certified ratings in the industry. A new generation of potting makes this load cell suitable for tough industrial environments. Capacities range from 200 lb to 5,000 lb. Complete with 10ft (3.1 m) of load cell cable.

Download product PDF
Categories: ,

Specifications

Full Scale Output:
2.0 mV/V

Output Resistance:
1,000 (± 2) ohm

Input Resistance:
1,100 (± 50) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated range
14°F to 104°F (-10°C to 40°C)
Operating range
0° F to 150° F (-18° C to 65° C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
200% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5-10 VDC (15 V maximum)

Insulation Resistance:
5,000 megohms

Combined Error:
0.01% full scale

Cable Length:
10 ft (3.1 m)

Cable Diameter:
0.196 polyurethane jacket

Cable Color Code:
Green +Excitation
Black –Excitation
White +Signal
Red –Signal
Yellow Shield

Warranty:
One-year limited warranty

Approvals:
FM
NTEP
OIML

Models

77422 Load Cell,SEB SLB-200lb C3 10ft Flintec 2 mV/V 1000 OHM NTEP III 5 S SST IP67 FM Blind Hole
77423 Load Cell,SEB SLB-500lb C3 10ft Flintec 2 mV/V 1000 OHM NTEP III 5 S SST IP67 FM Blind
68527 Load Cell,SEB SLB-1000LB C3 10ft Flintec 2 MV/V 1000 OHM NTEP III 5 S SST IP67 Blind Hole
68528 Load Cell,SEB SLB-2.5K C3 10ft Flintec 2 MV/V 1000 OHM NTEP III 5 S SST IP67 Blind Hole
68529 Load Cell,SEB SLB-5000lb C3 10ft Flintec 2 MV/V 1000 OHM NTEP III 5 S SST IP67 Blind Hole
