Home / Balances / High Capacity balance / GF-M Series, A&D Weighing High Capacity Balance

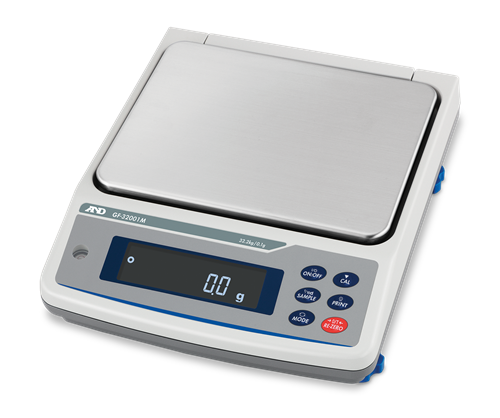

GF-M Series, A&D Weighing High Capacity Balance $ 0.00
Download product PDF
Features
IP65/NEMA Type 4
RS-232 interface for connecting to printer or PC
Quick reference operation card
Time and date
Vacuum fluorescent display (VFD)
Interval time setting
Underweigh hook
Specifications
Weighing Units:
Pound, Carat, Pennyweight, Troy Ounce, Grain, Decimal Ounce, Pound/Ounce Operating Modes
Counting, Percentage
Power:
120/240 V AC adapter
Stabilization Time:
Approx. 1.5 seconds (typical in FAST mode)
Sensitivity Drift (10 °C to 30 °C / 50 °F to 86 °F):
GF-8202M: ±2 ppm/ °C
GF-8202MD: ±3 ppm/ °C
GF-10202M: ±2 ppm/ °C
GF-12001M, GX-22001M, GX-32001M: ±3 ppm/ °C
GF-32001MD: ±5 ppm/ °C
Calibration Weight:
GF-8202M/MD: 2 to 8 kg
GF-10202M: 2 to 10 kg
GF-12001M: 5 kg, 10 kg
GF-22001M: 5 kg, 10 kg, 20 kg
GF-32001M/MD: 5 kg, 10 kg, 20 kg, 30 kg
Display Refresh Rate:
5 times/second or 10 times/second
Operating Temperature:
41 °F to 104 °F (5 °C to 40 °C)
RH less than 85% (no condensation)
Est. Weight:
18.3 lb (8.3 kg)
Warranty:
Five-year limited
Options
207415
Balance,A&D GF-8202M GF-M Toploader, 8.2kg x 0.01g, 120V Adapter
207416
Balance,A&D GF-8202MD GF-M Toploader, 2.2kg/8.2kg x 0.01g/0.1g, 120V Adapter
207417
Balance,A&D GF-10202M GF-M Toploader, 10.2kg x 0.01g, 120V Adapter
207418
Balance,A&D GF-12001M GF-M Toploader, 10.2kg x 0.1g, 120V Adapter
207419
Balance,A&D GF-22001M GF-M Toploader, 22.2kg x 0.1g, 120V Adapter
207420
Balance,A&D GF-32001M GF-M Toploader, 32.2kg x 0.1g, 120V Adapter
207422
Balance,A&D GF-32001MD GF-M Toploader, 6.2kg/32.2kg x 0.1g/1g, 120V Adapter
