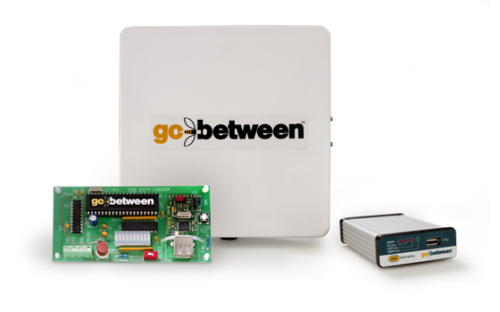

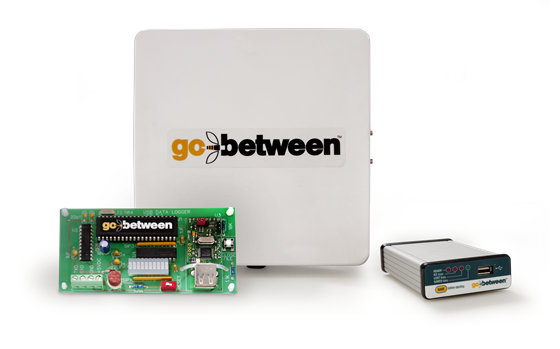

Go-Between™ Data Capture and Storage

$0.00

Go-Between fills a gap in the need to transfer data from balances and other scale equipment with RS-232 connections to a more widely accepted USB format.

Download product PDF
Category:

Features

  • LED onboard for testing data transmission
  • Captures data and stores it on a USB flash drive (up to 8 GB not included)
  • Transfer data to your PC using the USB flash drive

Text file examples (actual text will be dependent on transmitted file)

02:50PM
11/13/2012
GROSS 58 lb

02:50PM
11/13/2012
GROSS 68 lb

Specifications

Baud Rate:
9600

Data Bits:
8

Parity:
None

Power:
Requires 5 VDC

Customer Supplied:
Power and USB flash drive

Industrial Enclosure Option:
7.5 x 7.5 x 4.5 in (19 x 19 x 12 cm)
Latch for lock

Warranty:
One-year limited warranty

Options

154797 Adapter,Power 5VDC 2A 90-264VAC, US plug, UL/CUL
66535 Cable,DB9F to DB9F Null Modem Serial Cable 6 Foot
22436 Cable,COMM DB9F 9 Pin FEM On One End Stripped And Tinned On Other End 6ft Pin 2 (Brown) Pin3 (Red) pin 5 (Yellow)
15493 Cable,Load Cell Custom EL146 4-Conductor per foot UL, CSA c UL approved
50764 Washer,Flat Fairbanks 2-1/4 OD x .930 ID x .25 Thick Round Suspension Canister Mount
119064 Adapter,Slimline Null Modem, Gender Changer DB9 Female/Female
130789 Adapter,Null Modem DB9F/M
170935 Overlay,Go-Between Desk

Models

153265 Board,Go-between RS-232 to USB data storage
153266 Go-Between Storage Device RS-232 to USB data storage, FRP Enclosure (19cm x 19cm x 12cm) (7.5in x 7.5in x 4.5in)
153267 Enclosure,Desk Go-between RS-232 to USB data storage, Power Supply included
158778 Enclosure,Desk go-between RS-232 to USB data storage, EU Power Supply included
