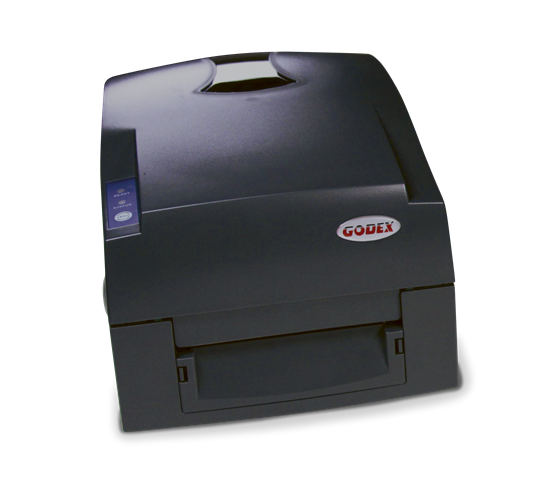

GoDEX G500 Direct Thermal and Thermal Label Printer

$0.00

The GoDEX G500 printer is the perfect solution for a high-output, desktop thermal printer.

Download product PDF
Category:

Features

  • Auto language emulations GEPL, GZPL
  • Free GoLabel design software for EZPL or Q Label
  • 203 dpi?(8 dot/mm)
  • Drop in media loading
  • USB or RS-232 interface
  • Plain, gap label, black, mark or fanfold label
  • Label length detection
  • Direct thermal
  • Model G500- direct thermal/thermal transfer
  • 32-bit CPU

Specifications

Print Speed:
5 ips

Print Length:
Minimum: 0.16 in
Maximum: 68 in

Print Width:
4.25 in

Media:
Continuous form, gap labeling, black mark sensing and punched sensing
Label roll O.D. max: 5.0 in

Core:
1 in, 1.5 in
Thickness: 0.06 mm to 0.20 mm

Ribbon:?
Core: 1 in
Length: 300 m
Max ribbon roll O.D.: 2.67 in
Wide: 1.18 to 4.33 in

Printer Language:?
GZPL or GEPL, EZ PL auto switch

Resident Fonts:?
11 resident alphanumeric fonts (included OCR A and B) are expandable eight times horizontally and vertically. All bit mapped fonts in eight orientations

Bar Codes:?
Code 39, Code 93, Code 128 (subset A, B, C,) UCC/EAN – 128 K-Mart, UCC/EAN – 128, UPC A/E (add on 2 and 5,) 2 of 5, EAN 8/13 (add on 2 and 5.) Codabar, Post Net, EAN 128, DUN 14, MaxiCode, HIBC, Plessey, Random Weight, Telepen, FIM, China Postal Code, RPS 128, PDF 417, Datamatrix code, QR Code

Dimensions:?
(L x H x W): 11.2?x 6.8?x 8.9 in
(285?x 171 x 226 mm)

Interfaces:?
Baud rate 4800 to 115,200; DB9
USB port U2.0 (B-type)
Ethernet (RJ-45)

Memory:
8 MB flash

Power:?
Auto switching 100/240 VAC 50/60 Hz

Environment:?
Operation: 41? F to 104? F (5? C to 40? C)
Storage: -4? F to 122? F (-20? C to 50? C)

Humidity:?
Operation: 30 to 85 % non-condensing, free air
Storage: 10 to 90 % non-condensing, free air

Approvals:?
CE (EMC), FCC Class A, CB, CUL, CCC

Warranty:?
Two-year limited warranty

Options

Part #38941 Product DescriptionPen,Head Cleaning Box of 12 TLP2642,LP2242,LP2642,TLP3642,LP3642,TLP2046,TLP2242 TLP2044 Eltron
Part #35664 Product DescriptionLabel,Pre-Saturated Cards 4×6 25/Box for 4in Wide Printers
Part #111085 Product DescriptionPower Supply,RL-42DT, RL-22DT, RL-44TT, G500 (Power Cord not included – 15438)
Part #15438 Product DescriptionPower Cord,Detachable 18 AWG,7-1/2′ Long,SVT Cord Black ?

Models

Part #?132425 Product DescriptionPrinter,Godex G500 4IN Direct/Thermal Transfer, 203dpi, 110/240VAC with US power cord
Part #?150744 Product DescriptionPeeler OPT,G500
Part #?150745 Product DescriptionCutter,G500
Part #?150746 Product DescriptionPrinthead,G500
Part #?107639 Product DescriptionGuardian,G-2 G500, RL42TT Stainless Steel Enclosure
