GTSC Hydraulic

$0.00

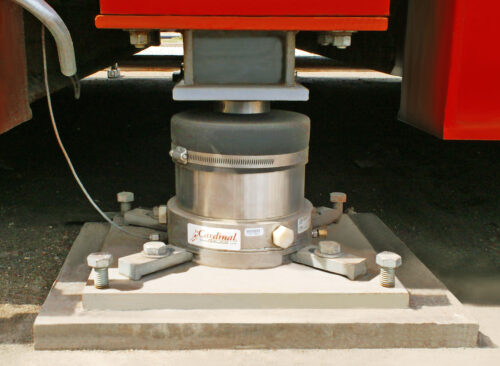

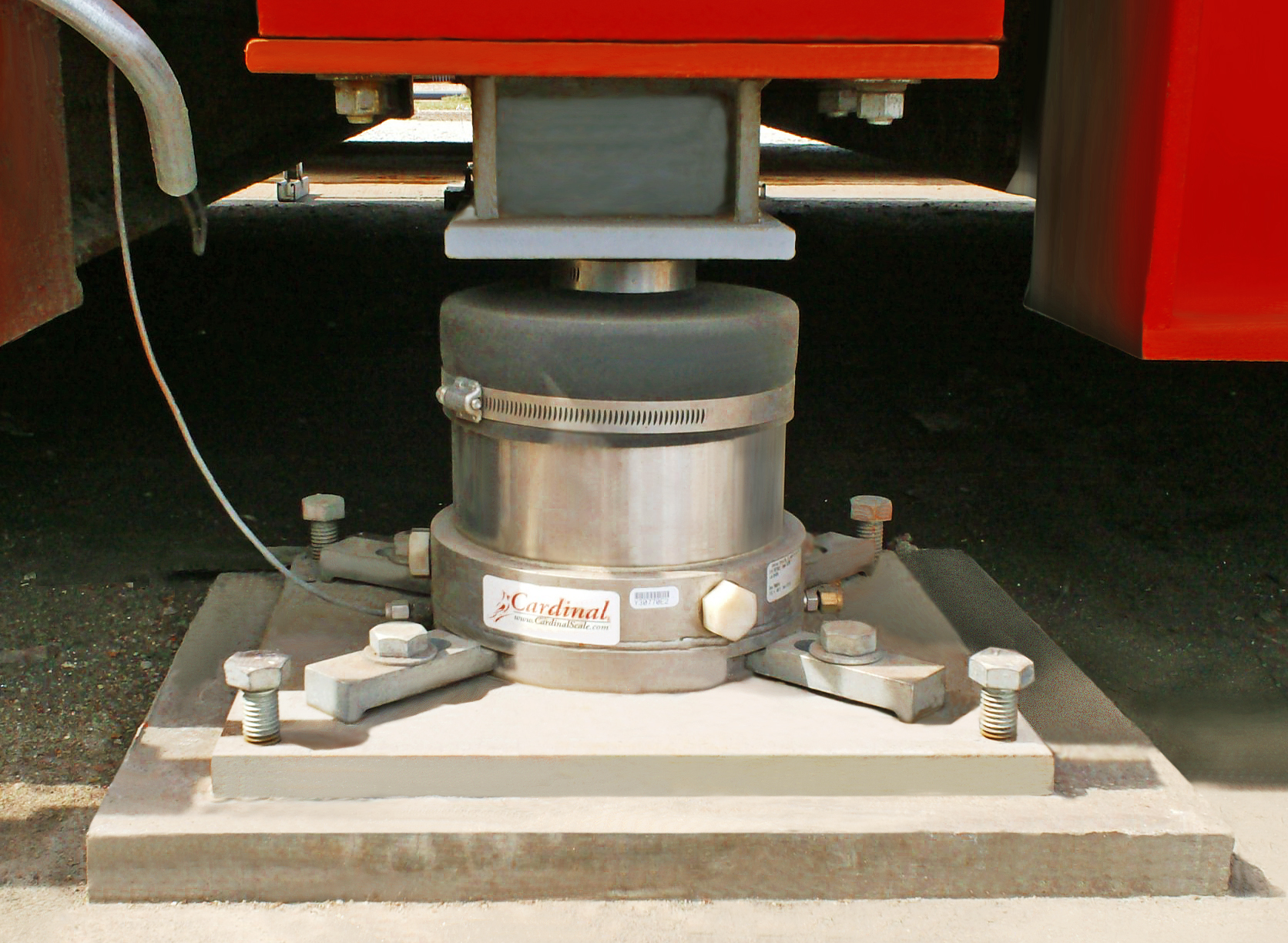

GTSC hydraulic load cell retrofit kits allow various Cardinal Scale and competitors’ truck scales to be upgraded to utilize Cardinal Scale hydraulic load cells. Cardinal Scale’s hydraulic load cells provide the highest level of protection against the most adverse conditions that hamper or destroy load cell functionality. Conditions such as moisture, water, lightning, power surges, corrosion, shock loading, temperature fluctuations, and damage from rodents are guarded against due to Cardinal Scale’s superior design and performance inherent in hydraulic type load cells. The GTSC truck scale retrofit kits are NTEP-approved, legal-for-trade for system capacities ranging from 60 tons to 120 tons. Each kit contains SST model hydraulic load cells, a GHT model hydraulic totalizer, replacement copper tubing, base plates, leveling bolts, anchor bolts, load buttons, load plates, and the accessory kit.

Download product PDF
Category:

Features

  • Immune to Electrical Surges and Lightning Damage
  • Load Cells are Impervious to Water and Moisture Damage
  • NTEP Legal for Trade
  • Transient Voltage and R.F.I. Resistant
  • Features Protection Against Rodent Damage
  • Hydraulic Compression Load Cells Provide the Most Protection on the Market
  • Hydraulic Load Cells Feature a Lifetime Warranty
  • Guardian Load Cells are Severe-Duty Rated for Protection
  • Hydraulic Retrofit Load Cell Kits Retain Long Working Life—Minimizing Repairs and Maintenance

Specifications

Capacity (Model GTSC-4-75): 60 tons
Capacity (Model GTSC-6-75): 80 tons
Capactiy (Model GTSC-8-75): 100 tons
Capacity (Model GTSC-10-75): 100 tons
Capacity (Model GTSC-12-75): 120 tons

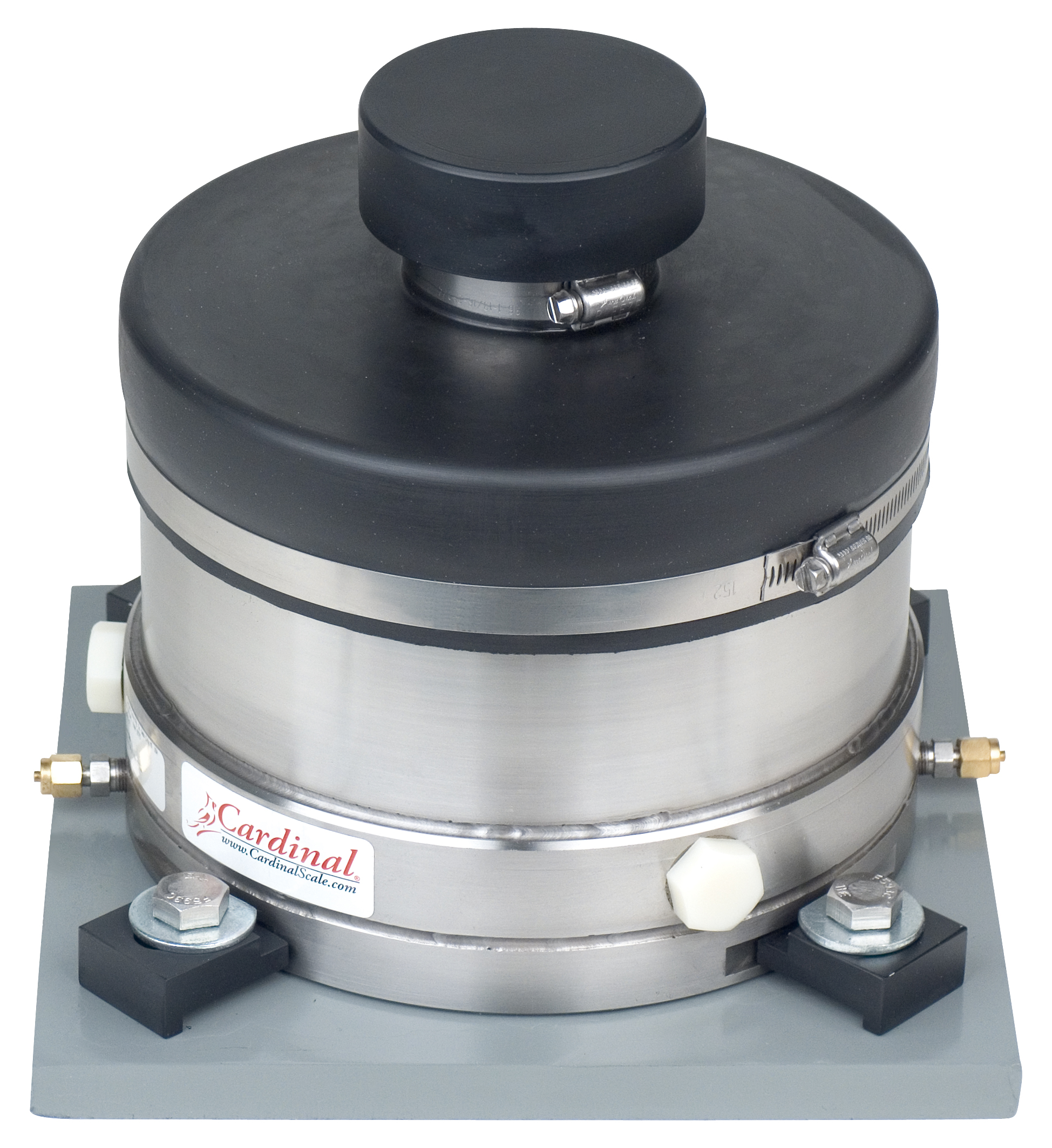

Load Cell Type: Hydraulic compression load cell
Load Cell Material: Stainless Steel
Load Cell Protection Class: IP68
Load Cell Accuracy Class: IIIL 10000
SST NTEP Approval: 05-076
Load Cell Design: Low-profile
Load Cell Warranty: Lifetime

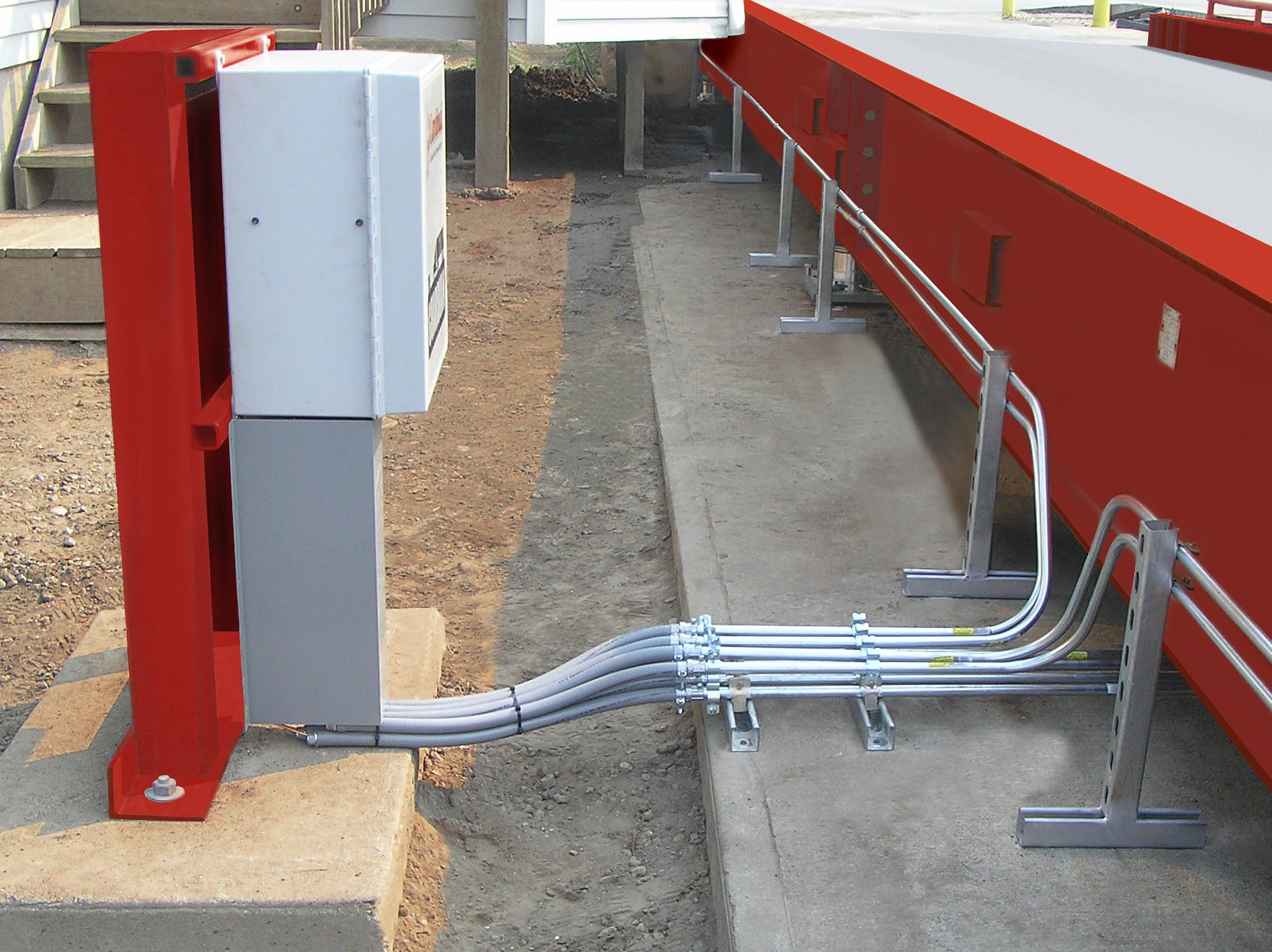

Kit Components: SST Hydraulic Load Cells, GHT Hydraulic Totalizer, Copper Tubing, Base Plates, Leveling Bolts, Anchor Bolts, Load Buttons, Load Plates, Accessory Kit
Optional Guardian Restraint System Kit (Model GRSKIT): Includes 2 Lateral Stabilizer Rod Assemblies and Mounting Brackets, 2 Longitudinal Stabilizer Rod Assemblies and Anchor Plates.

Options

GRSKIT Option: Hydraulic Restraint System Kit Call For Pricing
SST-TK Option: Hydraulic Load Cell Installation Tool kit Call For Pricing

Models

GTSC-4-75 Hydraulic Conversion Kit, 4 SST75 Load Cells, Totalizer Call For Pricing
GTSC-6-75 Hydraulic Conversion Kit, 6 SST75 Load Cells, Totalizer Call For Pricing
gtsc-8-75 Hydraulic Conversion Kit, 8 SST75 Load Cells, Totalizer Call For Pricing
GTSC-10-75 Hydraulic Conversion Kit, 10 SST75 Load Cells, Totalizer Call For Pricing
GTSC-12-75 Hydraulic Conversion Kit, 12 SST75 Load Cells, Totalizer Call For Pricing
