Ideal for stockyards, feed lots, and private farms, Cardinal’s fully-electronic Harvester livestock scales feature pre-cast concrete decks and include livestock pens and two-end swing gates with easy-close latches (arrives factory assembled). The diamond pattern concrete deck provides sure footing for livestock. The 0.8-inch-high gap between the concrete deck and steel livestock pen allows space for easy washout cleaning and is not visible to cattle from above. The NTEP legal-for-trade LSC series farm scale utilizes Cardinal’s 20,000-lb model SB stainless steel shear beam load cells which feature superior welded waterproof seals and protection against caustic, corrosive environments. Available in 12.5, 25, or 30 ton overall capacities. Sizes up to 52.5 ft long x 10 ft wide.
Etched Diamond Pattern Concrete Deck Provides Hoof-gripping Traction for Livestock
Four Hinge Points on Each Gate
High-Tensile-Strength Concrete Decks
Livestock Pens and Gates Included
NTEP Legal for Trade
Optional Dual Latches
Optional Horse Risers
Pre-cast Solid Concrete Deck
Rodent Protection is Standard

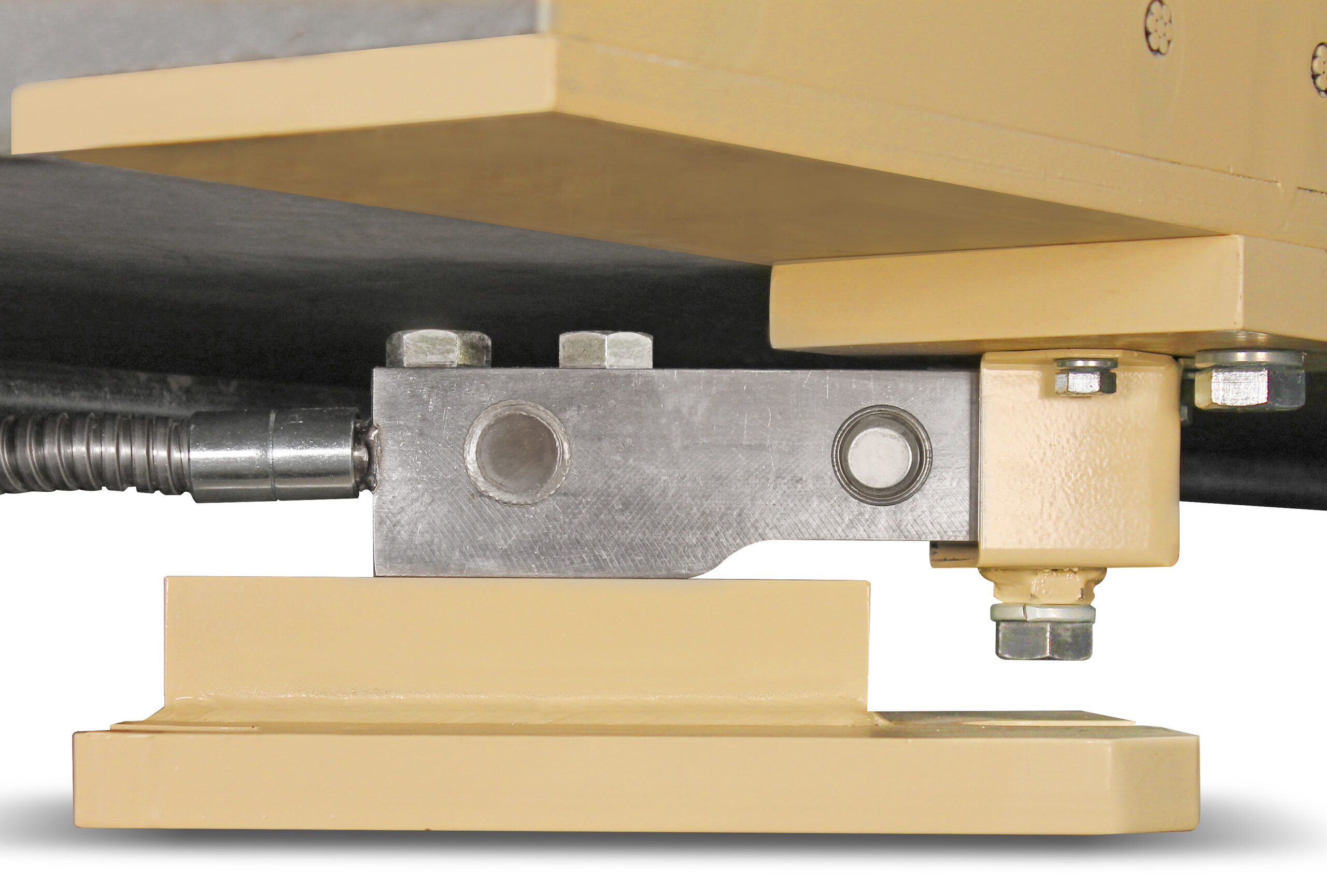

Stainless Steel Load Cells
Up to 30-Ton Weighing Capacity
Specifications
Platform Width: 10 ft. Platform Length: 17.5 ft., 35 ft., or 52.5 ft. Overall Capacity: 12.5 tons, 25 tons, or 30 tons Concentrated Load Capacity: 12.5 tons Load Cells: Cardinal model SB 20,000-lb stainless steel shear beam Clearance Height: 81 in (from top of concrete deck to bottom of top bar) Gate and Cattle Pen Height: 66.5 in Construction: Pre-cast concrete deck and mild steel livestock pens
Models

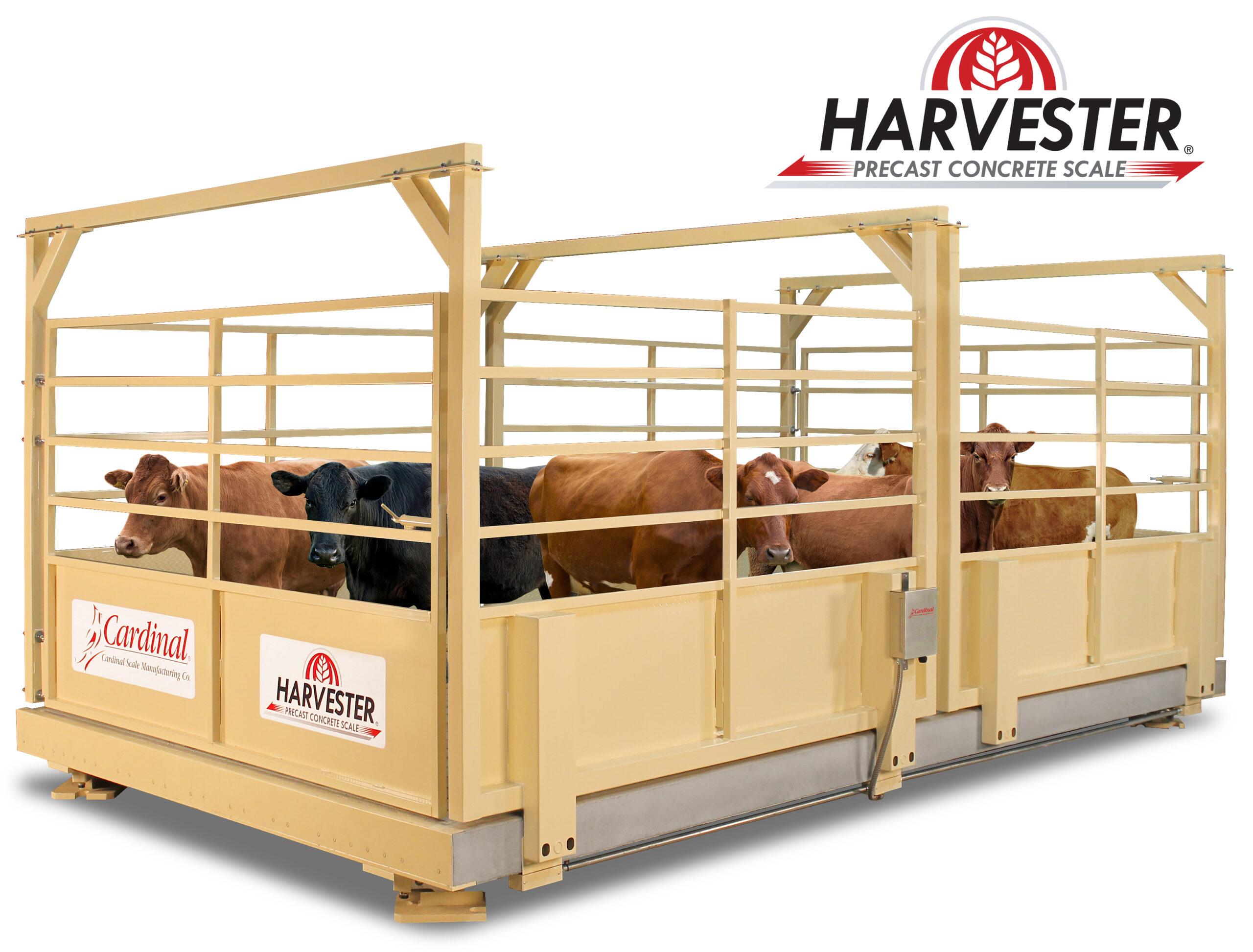

1217-LSC
Livestock Scale, 17′-6″ x 10′, 12 Ton Capacity, Concrete Deck
Call For Pricing
2535-LSC
Livestock Scale, 35′-0″ x 10′, 25 Ton Capacity, Concrete Deck
Call For Pricing

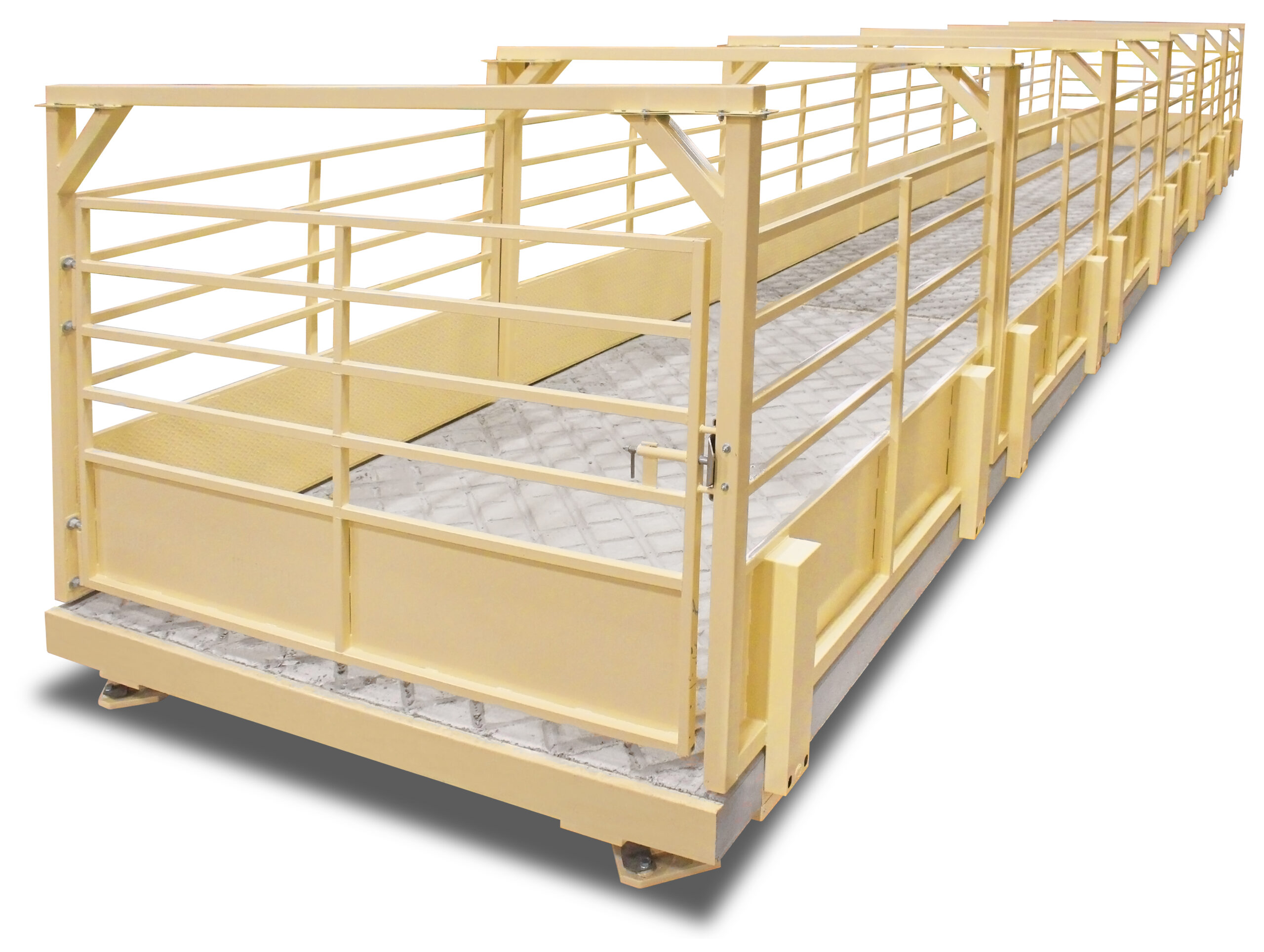

3052-LSC
Livestock Scale, 52′-6″ x 10′, 30 Ton Capacity, Concrete Deck
