HBM BBS Single-Ended Beam, Alloy Steel Load Cell

$0.00

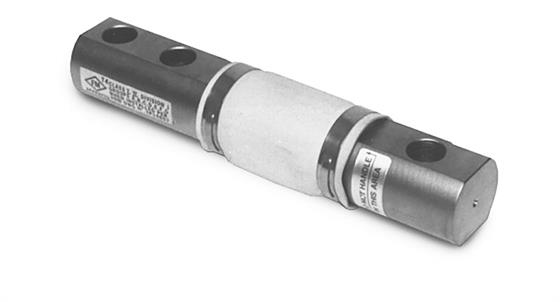

Low-cost bending beam load cell designed for precision force and weight measurement. Features excellent performance and protection against adverse environments, alloy and stainless steel sensing elements, and low mounting sensitivity. Capacities range from 50 lb to 7,500 lb (22.7 kg to 3,401.9 kg). Complete with 10 ft (3.1 m) of load cell cable.

Download product PDF
Categories: ,

Specifications

Full Scale Output:
2.0 mV/V

Output Resistance:
50 lb-1,000 lb =750 (± 15) ohms

Input Resistance:
375 (± 10) ohms

Material/Finish:
High-alloy steel, nickel plated

Temperature:
Operating range
0°F to 150°F (-18°C to 65°C)

Seal Type:
Environmentally sealed, IP65

Safe Overload:
150% full scale

Safe Sideload:
50% full scale

Rated Excitation:
5- 10 V DC (15 V maximum)

Nonlinearity:
0.03% Full scale

Hysteresis:
0.03% Full scale

Insulation Resistance:
1,000 megohms

Deflection at Capacity:
50 lb=0.015 in (0.38 mm)
100 lb=0.025 in (0.64 mm)
200 lb/250 lb=0.030 in (0.76 mm)
500 lb=0.020 in (0.51 mm)
1,000 lb=0.040 in (1.02 mm)

Cable Length:
10 ft (3.1 m)

Cable Diameter:
0.190 polyurethane jacket

Cable Color Code:
Green +Excitation
Black –Excitation
White +Signal
Red –Signal
Yellow Shield

Warranty:
One-year limited warranty

Approvals:
FM

Models

17352 Load Cell,CLB BBS-50- 10121 50lb 10ft 2mv/v 750 Ohm FM EW HBM
17353 Load Cell,CLB BBS-100- 10121 100lb 10ft 2mv/v 750 Ohm FM EW HBM
17354 Load Cell,CLB BBS-200- 10121 200lb 10ft 2mv/v 750 Ohm FM EW HBM
17355 Load Cell,CLB BBS-250- 10121 250lb 10ft 2mv/v 750 Ohm FM EW HBM
17356 Load Cell,CLB BBS-500- 10121 500lb 10ft 2mv/v 750 Ohm FM EW HBM
17357 Load Cell,CLB BBS-1K- 10121 1000lb 10ft 2mv/v 750 Ohm FM EW HBM
