HBM H35 Stainless Steel, Single-Ended Beam Load Cell

$0.00

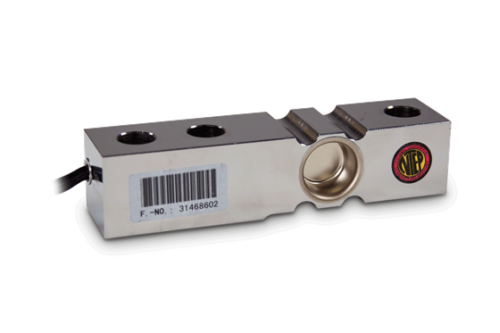

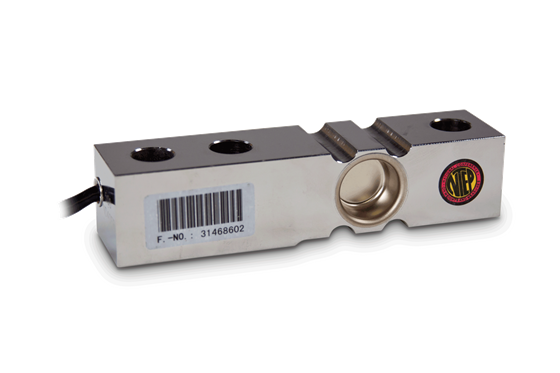

The H35 offers all stainless steel construction and an integral mounting foot as well as dimensional and electrical interchangeability with several load cell manufacturers. Capacities range from 500 lb lb to 5,000 lb. Each cell comes with 20 ft (6.1 m) of load cell cable.

Download product PDF
Categories: ,

Specifications

Full Scale Output:
3.0 mV/V

Output Resistance:
350 (± 3) ohms

Input Resistance:
385 ohms, nominal

Material/Finish:
Stainless steel

Temperature:
Compensated range
14°F to 104°F (-10°C to 40°C)
Operating range
0°F to 150°F (-18°C to 65°C)

Seal Type:
Welded-seal, IP67

Safe Overload:
150% Full scale

Safe Sideload:
100% Full scale

Rated Excitation:
5- 10 V DC (15 V maximum)

Combined Error:
0.02% full scale

Insulation Resistance:
5,000 megohms

Cable Length:
20 ft (6.1 m)

Cable Diameter:
0.190 polyurethane jacket

Cable Color Code:
Green + Excitation
Black – Excitation
White + Signal
Red – Signal
Yellow Shield

Warranty:
One-year limited warranty

Approvals:
FM
NTEP

Models

84818 Load Cell,SEB H35-500- 20760 500lb 20ft HBM 3mv/v 350 OHM EW NTEP III 5M FM SST WS
64876 Load Cell,SEB H35-1K 20760 1000lb 20ft HBM 3mV/V 350 OHM EW NTEP III 5M FM SST WS IP67
64877 Load Cell,SEB H35-2.5K 20760 2500lb 20ft HBM 3mV/V 350 OHM EW NTEP III 5M FM SST WS IP67
64878 Load Cell,SEB H35-4K 20760 4000lb 20ft HBM 3mV/V 350 OHM EW NTEP III 5M FM SST WS IP67
64879 Load Cell,SEB H35-5K 20760 5000lb 20ft HBM 3mV/V 350 OHM EW NTEP III 5M FM SST WS IP67
