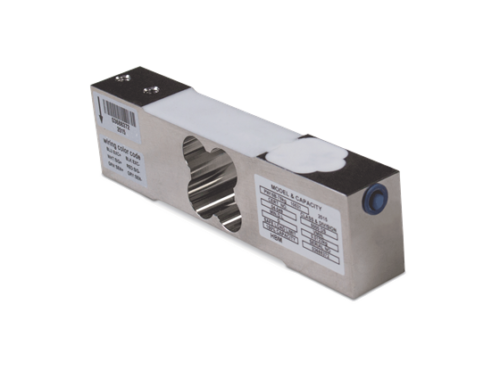

HBM PW15 Stainless Steel, Single Point Load Cell

$0.00

A new stainless steel, single point load cell from HBM. With capacities ranging from 10 kg to 150 kg (22.1 lb to 330.7 lb). The PW15 is ideal for platform, hanging scale and other low capacity beam applications. Complete with 10 ft (3.1 m) of load cell cable.

Download product PDF
Categories: ,

Models

76769 Load Cell,SPT PW15-10kg- 10531 10kg 10ft HBM 2mV/V 350 OHM SST NTEP III 5 S IP67
76771 Load Cell,SPT PW15-15kg- 10531 15kg 10ft HBM 2mV/V 350 OHM SST NTEP III 5 S IP67
76772 Load Cell,SPT PW15-20kg- 10531 20kg 10ft HBM 2mV/V 350 OHM SST NTEP III 5 S IP67
76774 Load Cell,SPT PW15-50kg- 10531 50kg 10ft HBM 2mV/V 350 OHM SST NTEP III 5 S IP67
76775 Load Cell,SPT PW15-75kg- 10531 75kg 10ft HBM 2mV/V 350 OHM SST NTEP III 5 S IP67
76776 Load Cell,SPT PW15-100kg 10531 100kg 10ft HBM 2mV/V 350 OHM SST NTEP III 5 S IP67
4820 Load Cell, SPT PW15-150kg 10531 150kg 10ft HBM 2mv/v 350 OHM SST NTEP III 5 S IP67
