HBM S35 Stainless Steel, Universal S-Beam Load Cell

$0.00

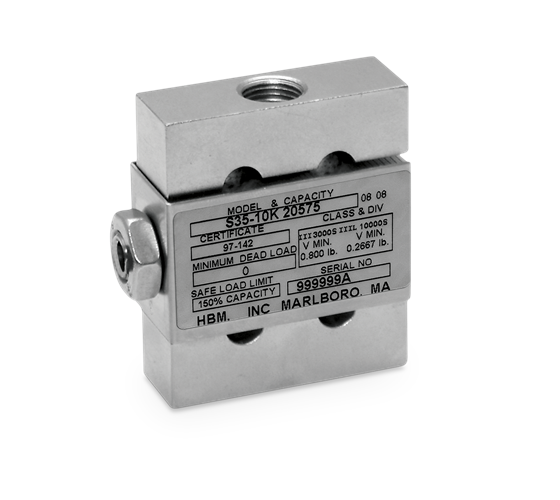

The S35, universal “s” cell is constructed in stainless steel and offers dimensional and electrical interchangeability with several load cell manufacturers. Capacities range from 100 lb to 5,000 lb. Each cell comes with 20 ft (6.1 m) of load cell cable.

Download product PDF
Categories: ,

Specifications

Full Scale Output:
3.0 mV/V nominal

Output Resistance:
350 (± 3.5) ohms

Input Resistance:
430 (± 60) ohms

Material/Finish:
Stainless steel

Temperature:
Compensated range
14°F to 104°F (-10°C to 40°C)
Operating range
0°F to 150°F (-18°C to 65°C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150%

Rated Excitation:
5- 10 V DC (15 V maximum)

Combined Error:
0.03%

Insulation Resistance:
10,000 megohms

Deflection at Capacity:
0.010 in (0.25 mm)

Cable Length:
20 ft (6.1 m)

Cable Diameter:
0.190 polyurethane jacket

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal
Yellow Shield

Warranty:
One-year limited warranty

Approvals:
FM
NTEP

Models

64859 Load Cell,SBM S35-100 100lb 20ft HBM 3mV/V 350 OHM SST NTEP III 3S IIIL 10S
64860 Load Cell,SBM S35-200 200lb 20ft HBM 3mV/V 350 OHM SST NTEP III 3S IIIL 10S
64862 Load Cell,SBM S35-500 500lb 20ft HBM 3mV/V 350 OHM SST NTEP III 3S IIIL 10S
64863 Load Cell,SBM S35-750 750lb 20ft HBM 3mV/V 350 OHM SST NTEP III 3S IIIL 10S
64864 Load Cell,SBM S35-1k 1000lb 20ft HBM 3mV/V 350 OHM SST NTEP III 3S IIIL 10S
64865 Load Cell,SBM S35-2k 2000lb 20ft HBM 3mV/V 350 OHM SST NTEP III 3S IIIL 10S
64866 Load Cell,SBM S35-2.5k 2500lb 20ft HBM 3mV/V 350 OHM SST NTEP III 3S IIIL 10S
64868 Load Cell,SBM S35-5k 5000lb 20ft HBM 3mV/V 350 OHM SST NTEP III 3S IIIL 10S
