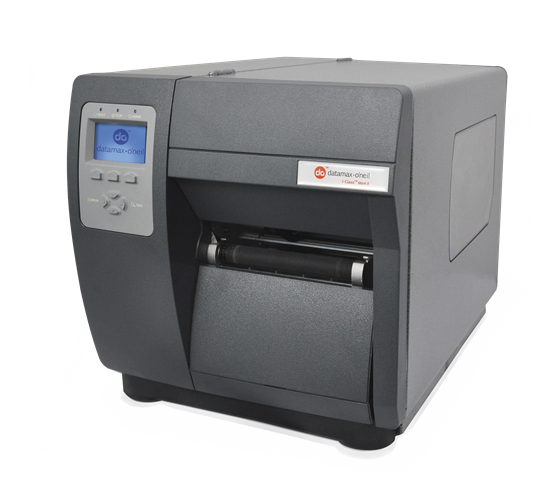

Honeywell I-4212e Mark II Bar Code Printer

I-Class Mark II is a family of mid-range industrial bar code printers that are designed for a wide variety of industrial bar code printing applications.



Unfortunately this product has been DISCONTINUED. For similar products click here.
Category:

Features

  • 203 dpi?(8 dots/mm) print resolution
  • Easy-to-read liquid crystal display (LCD)
  • Scaleable engine
  • 3 in and?1.5 in (76.2 mm and 38.1 mm) revolving media hub
  • 32?MB/64?MB memory
  • Media window
  • Honeywell CD-ROM (contains Windows print drivers and manuals)
  • NETira software

Specifications

Print Speed:
12 in per second (305 mm)

Resolution:
203 DPI (8 dots/mm)

Maximum Print Width:
4.094 in (104 mm)

Media Width:
1 in to 4.65 in (25 to 118 mm)

Print Length:
0.25 in to 99 in (6 mm to 2,475 mm) .75 in (19 mm) minimum print length with optional present sensor

Supply Roll:
8 in (203 mm) maximum diameter on 1.5 in to 3 in (38 mm to 76 mm) core.
Fan-fold stock accepted from rear of printer

Revolving Media Hubs:
Standard in 1.5 in and 3 in; optional 40 mm

Ribbons:
Industry standard ribbon widths; 1 in (25 mm) ribbon core, 1,968 ft (600 m) in length
Auto-sensing option

Bar Codes:
Code 39, Interleaved 2 of 5, Code 128 (subsets A,B and C), Codabar, LOGMARS, UPC-A, UPC-E, UPC 2 and 5 digit addendums, EAN-8, EAN-13, EAN 2 and 5 digit addendums, UPC random weight, Code 93, MSI Plessey, Universal Shipping Container Symbology, UCC/EAN Code 128, QR Code, Postnet, Code 128 MOD 43, PDF 417, Micro PDF, UPS MaxiCode (mode 2 and 3), Datamatrix, Telepen, Aztec Code

Graphics Support:
.PCX, .BMP and .IMG files

Dimensions:
(H x W x D): 12.7 x 12.62 x 18.6 in
(322.6 x 320.5?x 472.4 mm)

Interfaces:
Centronics parallel port (IEEE 1284 compliant), RS-232 at 300 to 38,400 BPS, USB, optional Ethernet

Power Source:
Auto-sensing 90-264 VAC at 47-63 Hz; specify appropriate power cord
when ordering

Approvals:
UL listed, CSA certified, CE marked, RoHS and WEE compliant

Warranty:
One-year limited warranty on parts.
One-year or 1 million linear inches on original print head
90 days on replacement print head

Options

Part #131147 Product DescriptionTransfer,Thermal I-4212e Bi-Directional Option
Part #131148 Product DescriptionMechanism,Peel I-4212e Present Sensor (requires Internal Rewinder)
Part #131149 Product DescriptionRewinder,Internal I-4212e
Part #131150 Product DescriptionEthernet,LAN I-4212e Wired 10/100
Part #131151 Product DescriptionEthernet KIT,LAN I-4212e 802.11 a/b/g with WPA2 security protocol, Wired/Wireless. Includes: Right Angle Antenna, Coaxial Cable, Standoffs and Nuts
Part #131152 Product DescriptionCard,GPIO I-4212e Interface card I Class Mark II
Part #35664 Product DescriptionLabel,Pre-Saturated Cards 4×6 25/Box for 4in Wide Printers
Part #93181 Product DescriptionFilm,Printhead Cleaning 4IN Wide, 3/Box
Part #38941 Product DescriptionPen,Head Cleaning Box of 12 TLP2642,LP2242,LP2642,TLP3642,LP3642,TLP2046,TLP2242 TLP2044 Eltron
Part #64898 Product DescriptionLIT,Manual I & W Class DPL Programmers Manual
Part #64896 Product DescriptionLIT,Manual I-Class Printer Maintenance
Part #75098 Product DescriptionLIT,Manual I Class Datamax Operator and Accessories
Part #53918 Product DescriptionPrinter OPT,Standard Industrial Cutter Kit I Class ?

Models

Part #?131143 Product DescriptionPrinter,Label I-4212e DT RS-232, Parallel, & USB, 115VAC, US Power Cord, CE Mark
Part #?131144 Product DescriptionPrinter,Label I-4212e DT RS-232, Parallel, & USB, 220VAC, Euro & British Power Cord, CE Mark
Part #?131145 Product DescriptionPrinter,Label I-4212e DT RS-232, Parallel, & USB, Internal Rewind, 115VAC, US Power Cord, CE Mark
Part #?131146 Product DescriptionPrinter,Label I-4212e DT RS-232, Parallel, & USB, Peel & Present, Internal Rewind, 115VAC, US Power Cord, CE Mark
