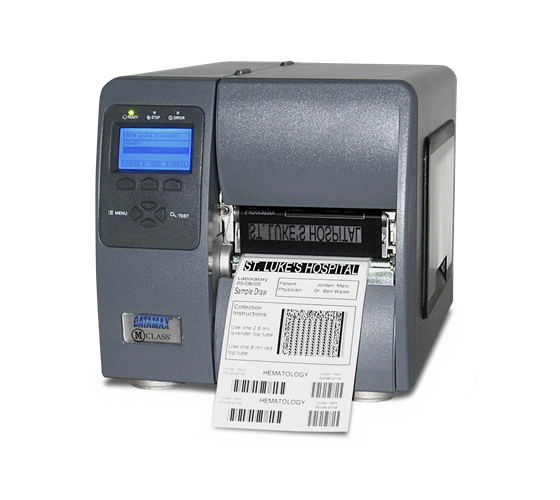

Honeywell M-4206/M-4210 Mark II Industrial Printer

The compact M-Class industrial printer has a smaller footprint ideal for space limitations.

Unfortunately this product has been DISCONTINUED. For similar products click here.
Category:

Features

  • 203 dpi (8 dots/mm) print resolution (M4308, 300 dpi)
  • Lightweight die-cast aluminum frame
  • Supplies loading diagram embossed into the frame
  • Collapsible ribbon hub for loading and unloading?of ribbons
  • Media window
  • Scaleable font engine
  • USB, serial and parallel communications
  • Reverse fields/mirror image (fonts/graphics can be printed as a normal or reverse image)
  • Real-time clock (M-4210)
  • Support CD-ROM (contains DMX EM conf. tool, Windows print drivers an manuals)
  • Line mode
  • LCD Graphical Display

Specifications

Print Speed:
M-4206 Mark II: 2 in to 6 in per second
(51 mm to 152 mm)
M-4210 Mark II: 2 in to 10 in per second
(51 mm to 152 mm)
M4308: 2 in to 8 in per second
(51 mm to 203 mm)

Supply Roll Capacity:
8 in (203 mm) O D on 1.5 in to 3.0 in
(38 mm to 76.2 mm) cores
Fanfold stock accepted from rear and bottom of printer

Bar Code Modulus:
5 mil to 55 mil ?X? dimension in picket fence or ladder orientations

Media Width:
0.75 in to 4.65 in (17 mm to 118 mm)

Media Type:
Roll fed or fan-fold materials, die-cut or continuous labels; perforated or continuous tag/ticket stock

Print Length:
0.25 in to 99 in (6 mm to 2,475 mm)

Media Thickness:
0.0025 in to .01 in (.0635 mm to .254 mm)

Ribbons:
Industry standard ribbon widths; 1 in (25 mm) ribbon core, 1,476 ft (450 m) in length

Bar Codes:
Code 3 of 9, UPC-A, UPC-E, Interleaved
2 of 5, Code 128, EAN-8, EAN-13, HIBC,
Codabar, Plessey, UPC 2 and 5 digit
addendums, Code 93, Postnet, UCC/EAN
Code 128, Telepen, UPS MaxiCode, FIM,
PDF417, USD-8, Datamatrix, QR Code, Aztec,
TLC 39, Micro PDF417, RSS

Graphics Supported:
.PCX, .BMP and .IMG files

Memory:
M4206: 8 MB RAM (8 MB FLASH), 1 MB user available
M4210: 16 MB RAM (8 MB FLASH), 3 MB user available

Construction:
Metal

Interfaces:
USB, Centronics parallel port, RS-232 at 600 to 38,400 BPS

Power Source:
Auto-sensing 90 to 132 or 180 to 264 VAC at 47 to 63 Hz; specify appropriate power supply and cord when ordering

Operating Temperature:
40? F to 95? F (4? C to 35? C

Overall Dimensions:
(H x W x D): 10.21 x 10.10 x 18.19 in
(259?x 257 x 462 mm)

Approvals:
UL listed, CSA certified, CE marked, TUV-GS safety standards, FCC Class A
emissions, RoHS and WEE compliant

Processor:
M-4206 Mark II Dragonball, 100 MHz
M-4210 Mark II Dragonball, 150 MHz

Weight:
27 lb

Warranty:
One-year limited warranty.
One-year or 1 million linear inches on original print head.
90 days on replacement print head

Options

Part #76729 Product DescriptionPrinter OPT,Thermal Transfer, M Class Mark II
Part #76730 Product DescriptionPrinter OPT,Peel Mechanism and Present Sensor (Requires Internal Rewinder) M Class
Part #76731 Product DescriptionPrinter OPT,Internal Rewinder, M Class
Part #76732 Product DescriptionPrinter OPT,Present Sensor, M Class
Part #76733 Product DescriptionPrinter OPT,Cutter Kit 10 Mil Stock, M Class
Part #35664 Product DescriptionLabel,Pre-Saturated Cards 4×6 25/Box for 4in Wide Printers
Part #93181 Product DescriptionFilm,Printhead Cleaning 4IN Wide, 3/Box ?
Part #76734 Product DescriptionPrinter OPT,M-4206 Manual Programmers Manual ?
Part #77562 Product DescriptionLIT,Manual M-4206 Operator Manual
Part #103372 Product DescriptionCard,Internal Ethernet M-4206 and M-4210 Models produced after 11/12/07
Part #103373 Product DescriptionCard,Wireless Ethernet M-4206 and M-4210 Models produced after 11/12/07 Does Not Include USB Port

Models

Part #?103364 Product DescriptionPrinter,Label M-4206 MARK II Direct Thermal,Graphical Display, 203DPI, 6IPS, SERIAL, PARALLEL, OR USB
Part #?103365 Product DescriptionPrinter,Label M-4206 MARK II,Direct Thermal, Graphical Display, 203DPI, 6IPS, Ethernet
Part #?103366 Product DescriptionPrinter,Label M-4210 MARK II, Direct Thermal, Graphical Display, 203DPI, 10IPS, Ethernet
Part #?103367 Product DescriptionPrinter,Label M-4210 MARK II,Direct Thermal, Graphical Display, 203DPI, 10IPS, Serial, Parallel or USB
Part #?108891 Product DescriptionPrinter,M-4210 Mark II Direct Thermal, Graphical Display, 203DPI, 10IPS, Serial, USB or Parallel, Internal Rewind, Peel and Present OPT
Part #?158826 Product DescriptionPrinter,M-4308 Mark II Direct Thermal, Graphical Display, 300 DPI, 8 IPS, Serial, USB or Parallel, Internal Rewind, Peel and Present OPT, PL-Z Emulation included
Part #?Consult Product DescriptionLabel printer, M-4308 models by request
