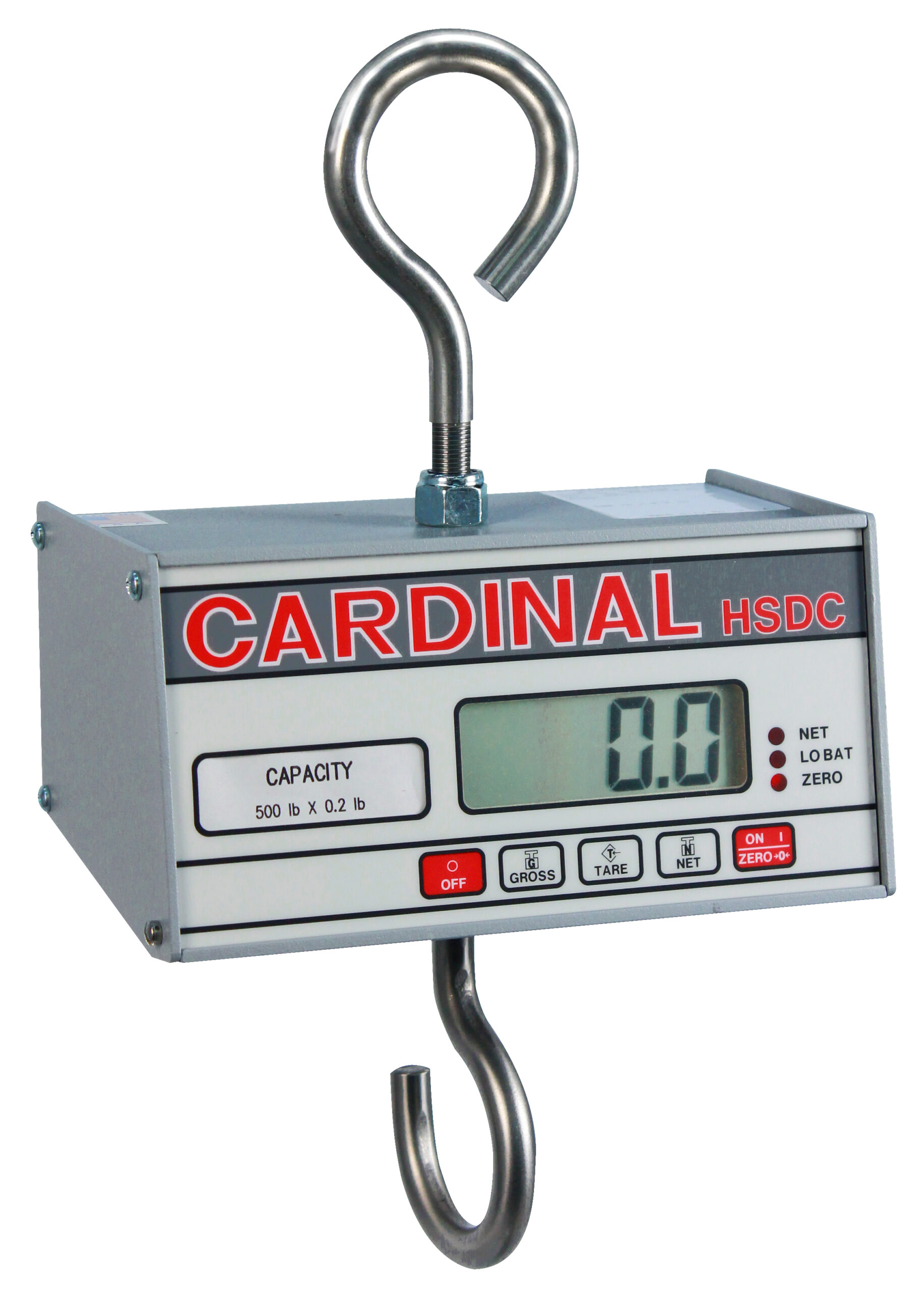

HSDC Series, Digital

$0.00

Cardinal Scale’s HSDC series digital hanging scales feature 9 different models to select from, lightning-fast and accurate digital readouts, stainless steel eyehook and hook included, 1-inch-high bold LCD readouts for high visibility up to 50 ft. away, aluminum alloy enclosure for lightweight strength, powered by 6 C batteries (not included) for convenient portable weighing, Auto Shutoff and Sleep modes to extend battery life, Class III NTEP legal for trade (all models except HSDC-500), factory calibration, and Gross, Tare, and Net keys. Available in capacities of 20 lb, 40 lb, 100 lb, 200 lb, 500 lb, plus 20 kg, 40 kg, and 100 kg. The HSDC series hanging scale is is ideal for fish weighing, curbside recycling collection, butchery/meat processing, industrial applications, and supermarkets. The model HSDC-20KGP includes a stainless steel bowl.

Download product PDF
Category:

Features

  • 1-in-high LCD
  • Powered by 6 C Batteries (Not Included)
  • Aluminum Alloy Enclosure for Lightweight Strength
  • Keypad Tare
  • NTEP Legal for Trade
  • Sleep Mode and Auto Shut-off
  • Stainless Steel Eyehook and Hook Included
  • Up to 500-lb and 100-kg Capacities Available

Specifications

Scale Dimensions: Width: 8.5 in / 21.6 cm Depth: 5.1 in / 13.0 cm Height: 4.3 in / 10.9 cm
Overall Dimensions (including hooks): Width: 8.5 in / 21.6 cm Depth: 5.1 in / 13.0 cm Height: 14.0 in / 35.6 cm (including eyehook and hook)

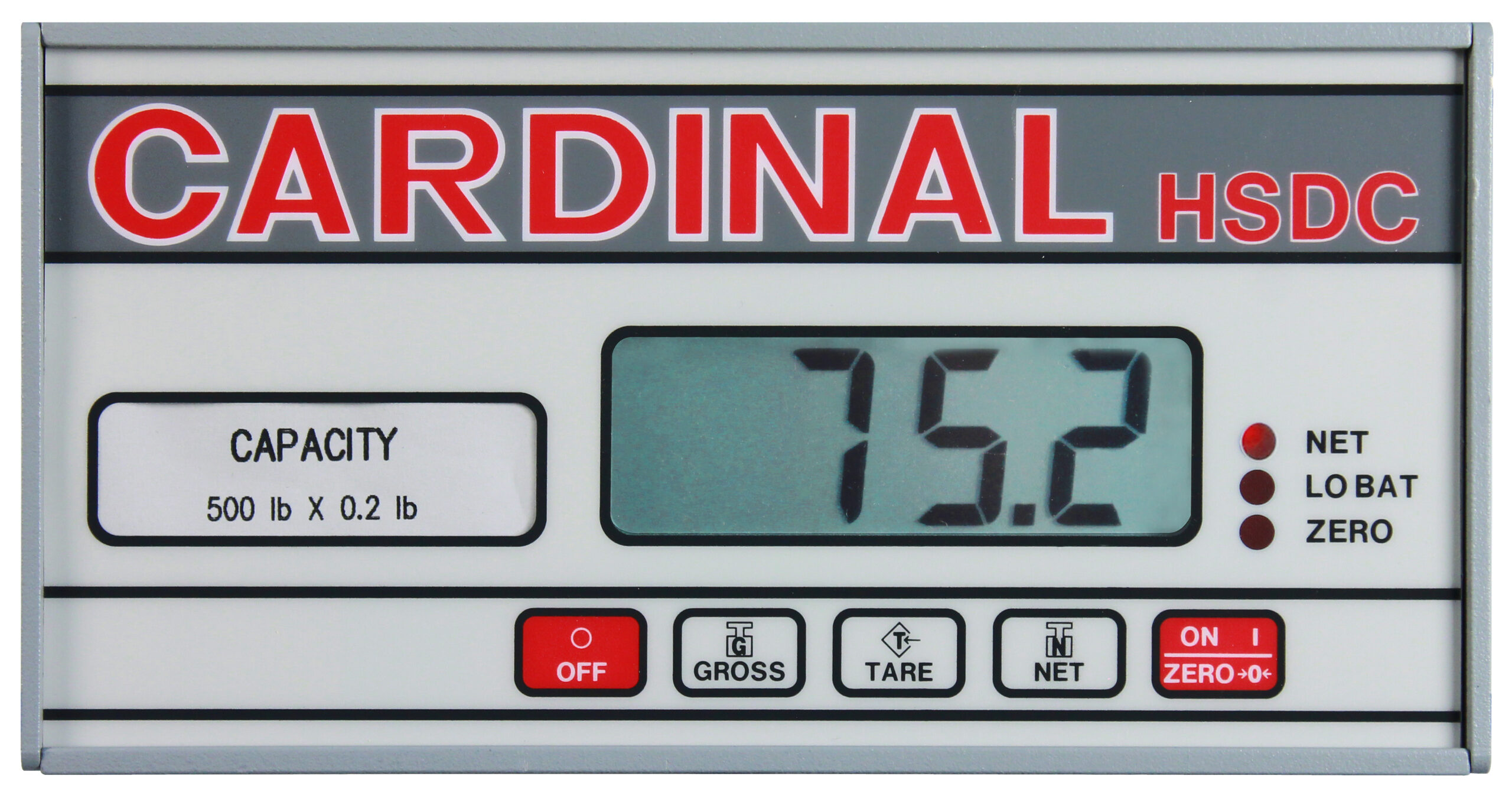

LCD Display Dimensions: Width: 3.3 in / 8.4 cm Height: 1.1 in / 2.8 cm
LCD Digit Size: Width: 0.5 in / 1.3 cm Height: 1.0 in / 2.5 cm
Product Weight: 5.8 lb / 2.6 kg (10 lb / 4.5 kg with model HSDC-20KGP’s stainless steel bowl and hanging assembly)
Shipping Weight: 7.2 lb /3.3 kg (including packaging)
Power: 6 C batteries (not included)
Operating Temperature: +14° to 104°F (-10° to +40°C)
Zero: Established during setup and maintained automatically to ± 1/4 graduation
Auto Zero Range: 5 and 0 through 9 graduations
Calibration Method: Digital, keypad entered; calibration stored in nonvolatile memory
Tare: Push button, 100% of full scale capacity
Annunciators: Center of zero, motion, net, low battery, over capacity
Buttons: ON/ZERO, NET, TARE, GROSS, OFF
Load Cell: Cardinal Scale model CMBC constant moment beam cell
Sample Rate: 1 – 12 samples per second, selectable
Auto Shut-off: Power saving mode selectable from 1 to 9 minutes
NTEP Approval: 03-030 Accuracy Class III (applies to all HSDC models except HSDC-500)

Models

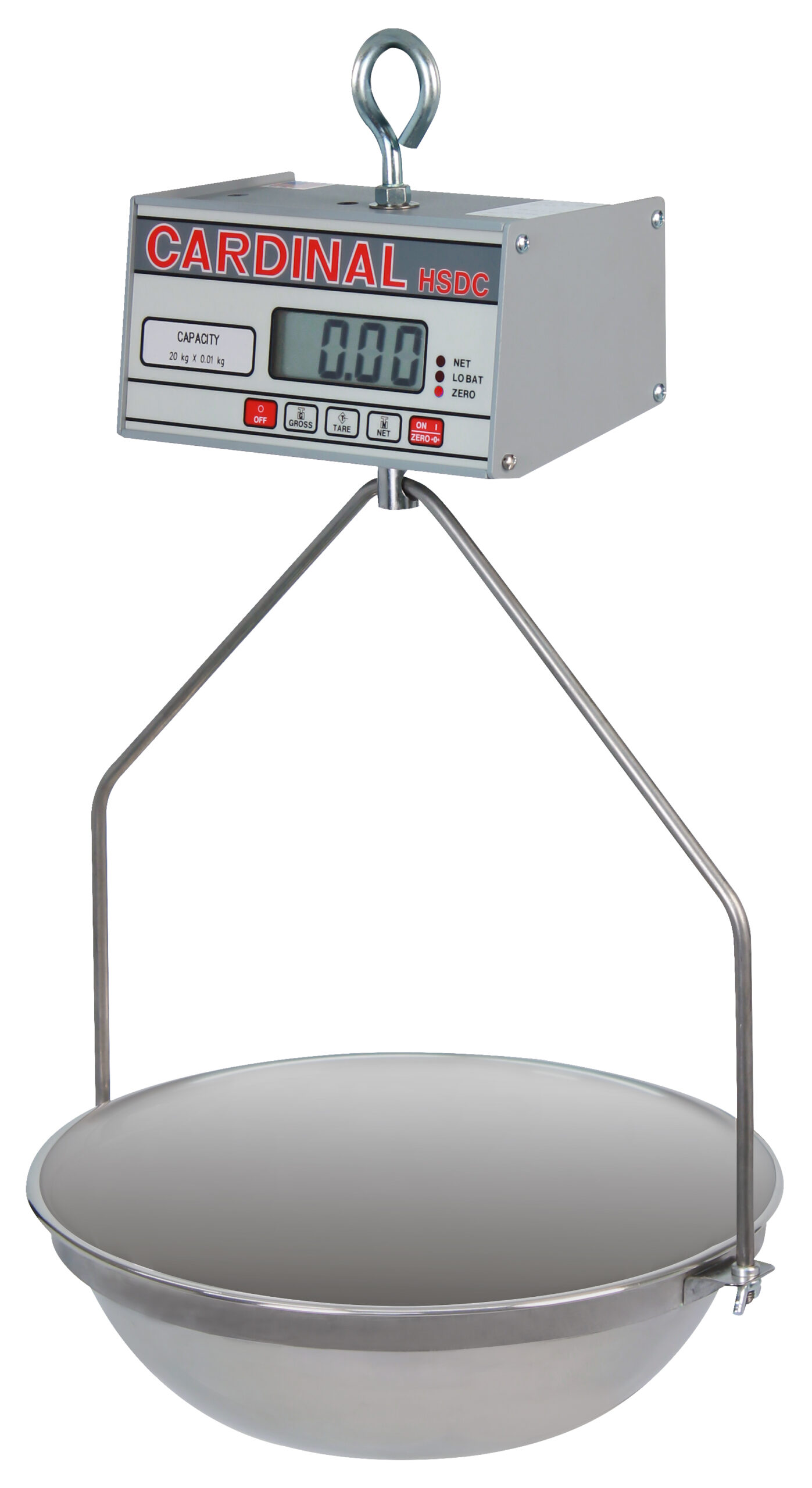

HSDC-20KGP Hanging Scale, Electronic, Includes Stainlesss Steel Pan and Bow, 20 kg x .01 kg Capacity Call For Pricing
HSDC-20 Hanging Scale, Electronic, 20 Lb Capacity Call For Pricing
HSDC-40 Hanging Scale, Electronic, 40 Lb Capacity Call For Pricing
HSDC-100 Hanging Scale, Electronic, 100 Lb Capacity Call For Pricing
HSDC-200 Hanging Scale, Electronic, 200 Lb Capacity Call For Pricing
HSDC-500 Hanging Scale, Electronic, 500 Lb Capacity Call For Pricing
HSDC-20KG Hanging Scale, Electronic, 20 Kg Capacity Call For Pricing
HSDC-40KG Hanging Scale, Electronic, 40 Kg Capacity Call For Pricing
HSDC-100KG Hanging Scale, Electronic, 100 Kg Capacity Call For Pricing
