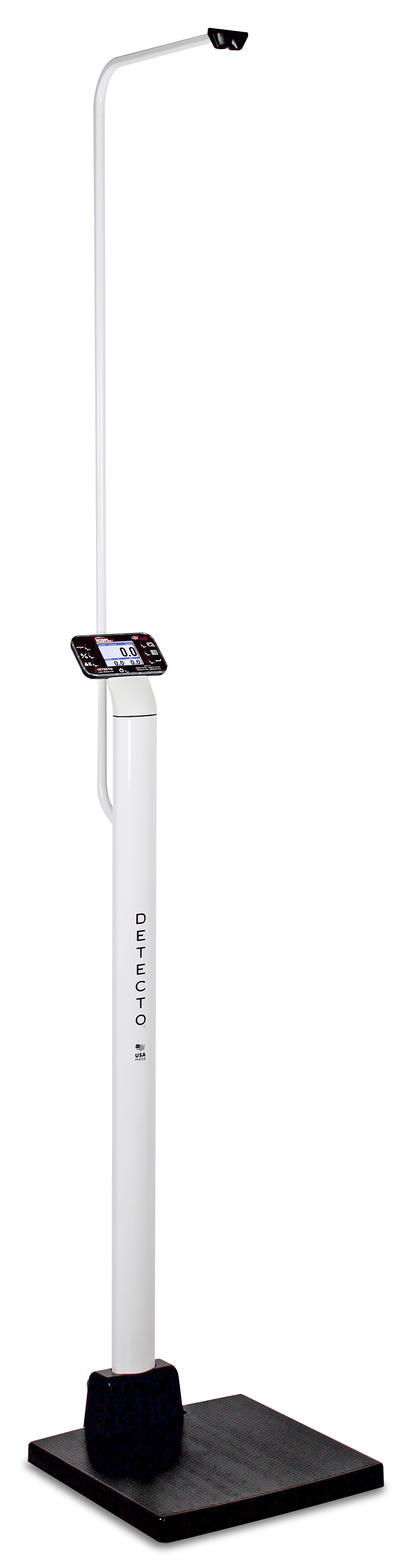

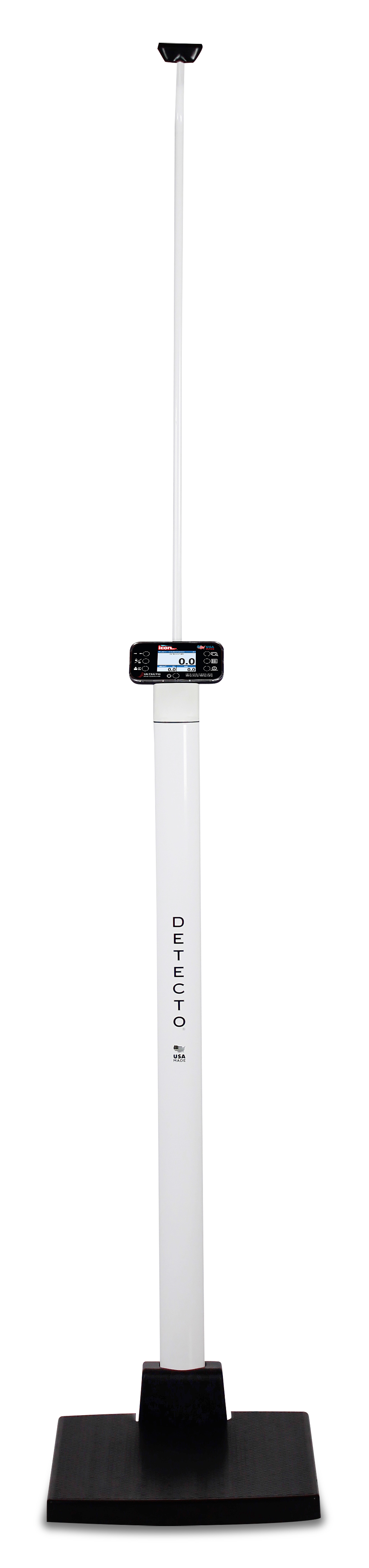

icon Digital Scales with Sonar Height Rods

$0.00

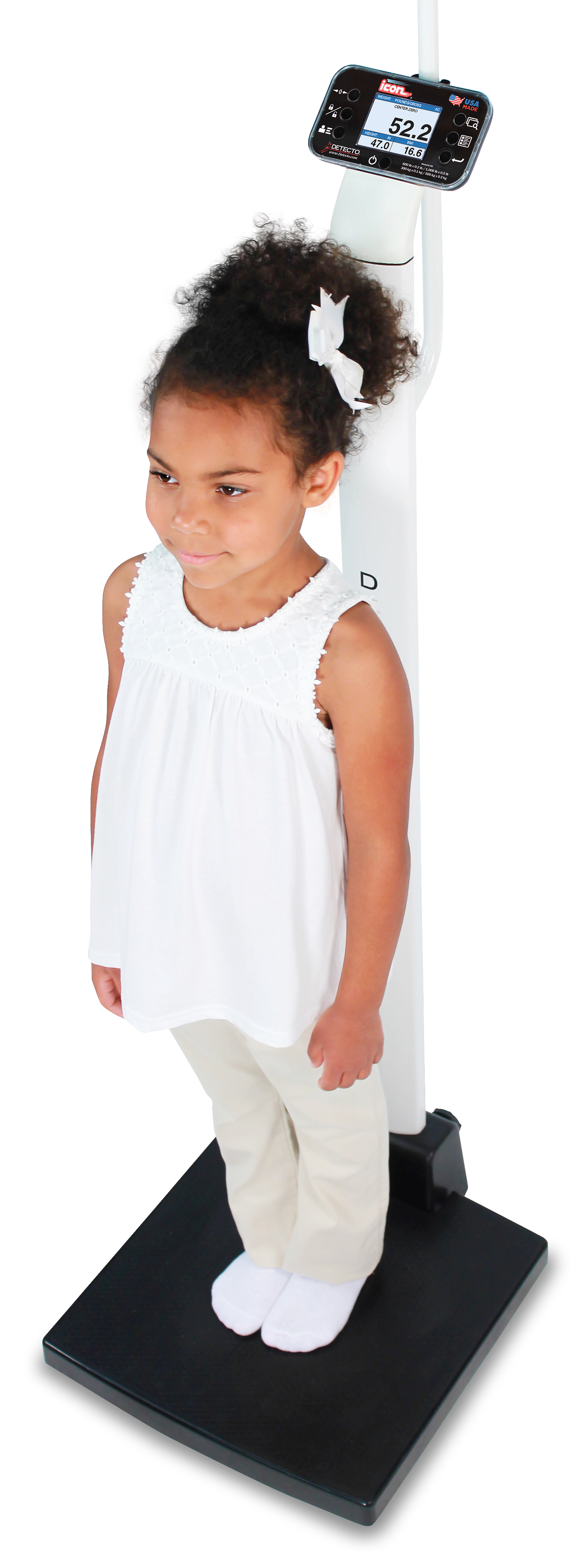

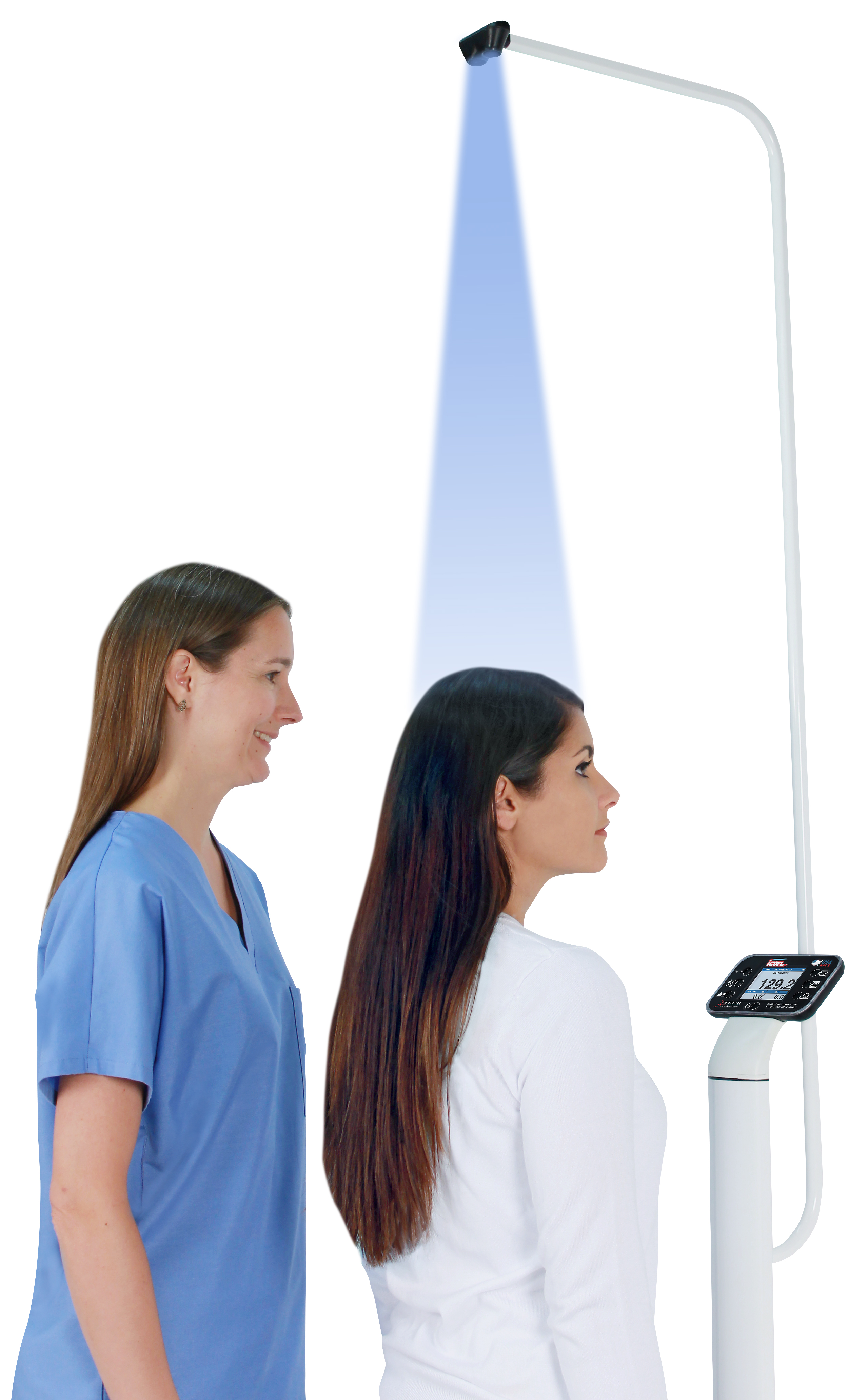

DETECTO?s icon eye-level digital physician scales feature state-of-the-art, sonar height rods and an ultra-thin platform only 1.5 inches high. The icon series scales feature an extra-high 1,000-lb capacity, multi-color touchscreen LCD display, 0.9-inch-high LCD weight digits, 1 USB-B port, HL7 IEEE 11073 compliance, Wi-Fi Ethernet model available for wireless EMR/EHR, 17 in W x 17 in D weighing platform, and weight, height, and BMI displayed onscreen simultaneously. The icon?s powerful sonar touchless height rod combined with an all-in-one color display means the patient simply steps onto the scale platform and within a second your full measurements are all displayed onscreen.

Download product PDF
Categories: ,

Features

  • 0.9-Inch-High LCD Weight Readouts
  • 1 USB-B port
  • 4 Different icon Models Available
  • AC Adapter (included) or 12 AA Batteries (not included)
  • Assembles in Seconds Without Any Tools
  • BMI Calculation
  • High 1000-lb Capacity
  • HL7 IEEE 11073 Compliant (standard)
  • Measures Weight Height and BMI Without Pushing a Single Button

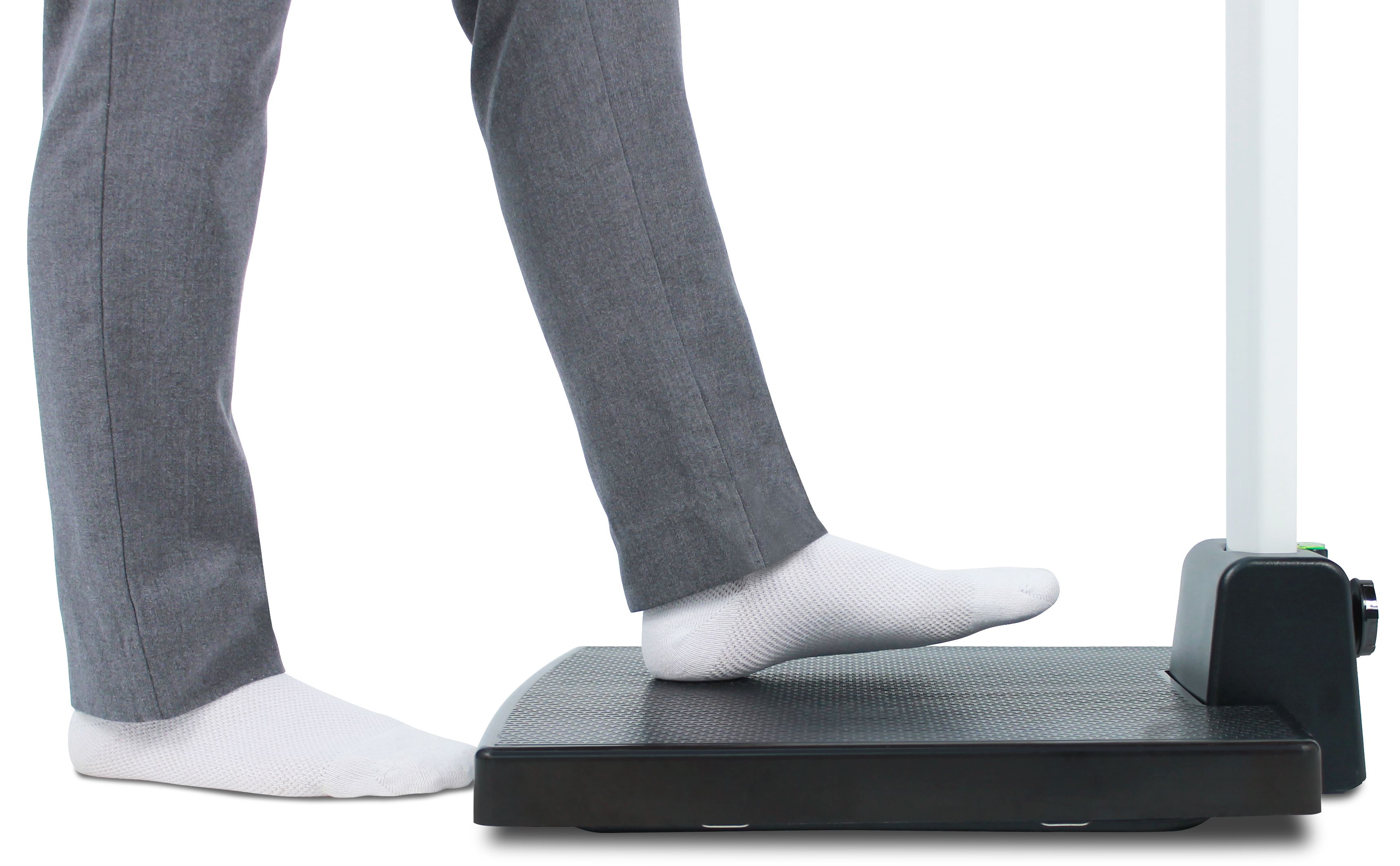

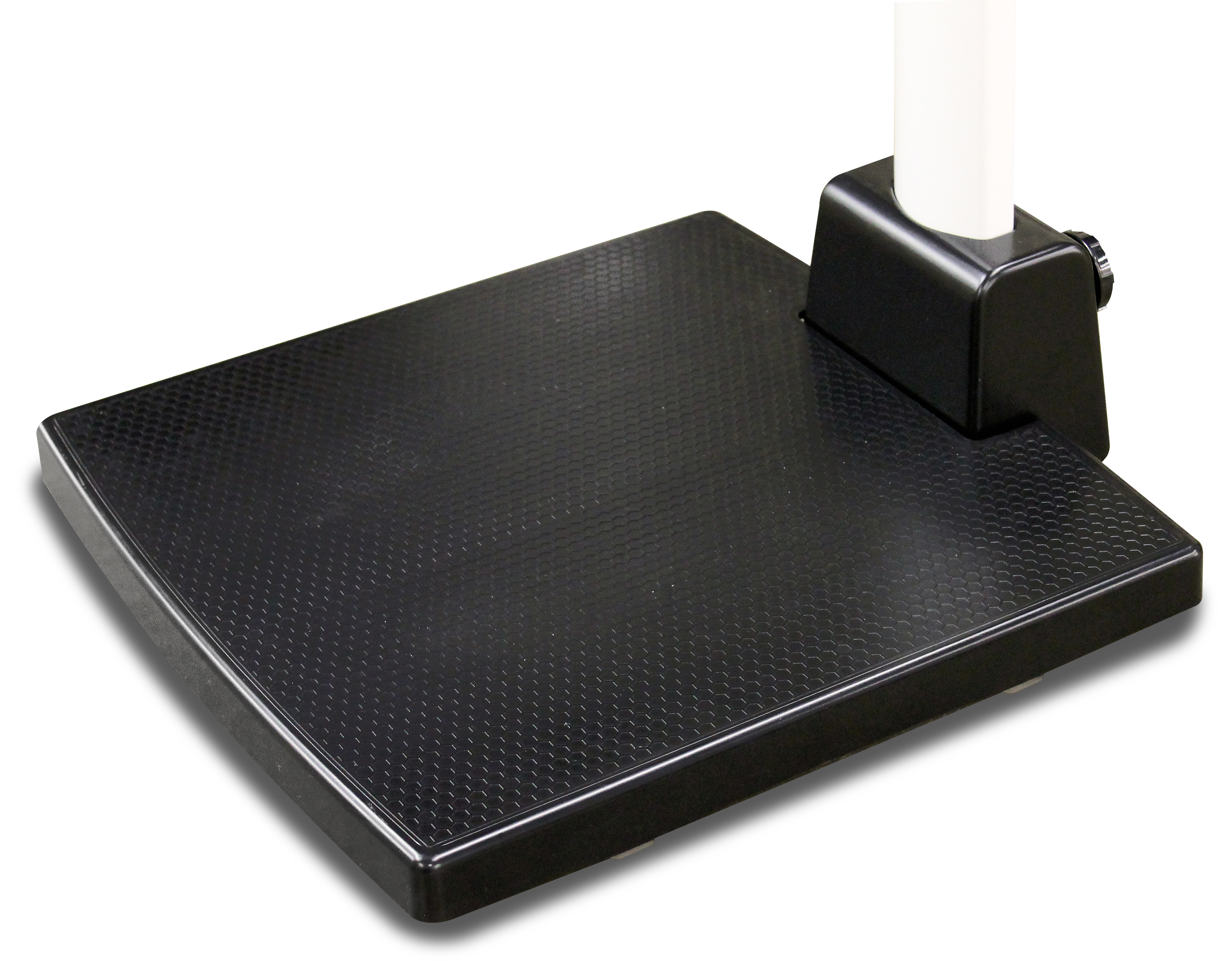

  • Platform Size: 17 in W x 17 in D x 1.5 in H
  • Touchless Sonar Height Rods
  • Wi-Fi and Welch Allyn Connectivity Available

Specifications

Capacity: Dual ranging: 600 lb x .2 lb / 1,000 lb x .5 lb 300 kg x .1 kg / 500 kg x .2 kg
Platform Size: 17 in W x 17 in D x 1.5 in H / 43.2 cm W x 43.2 cm D x 3.8 cm H
Weighing/Height Units: Pounds/Inch (lb, in) or Kilograms/Centimeters (kg, cm)

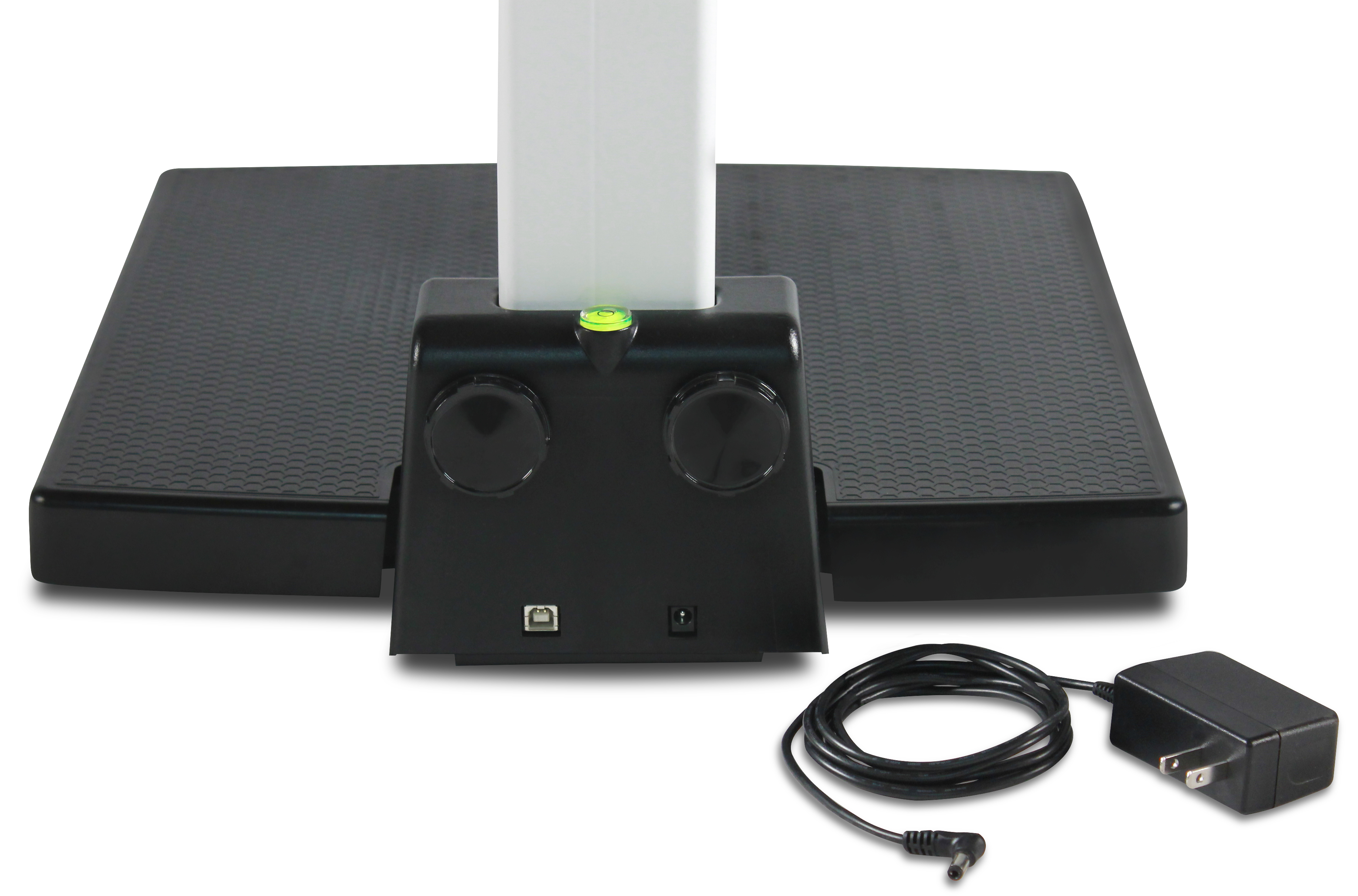

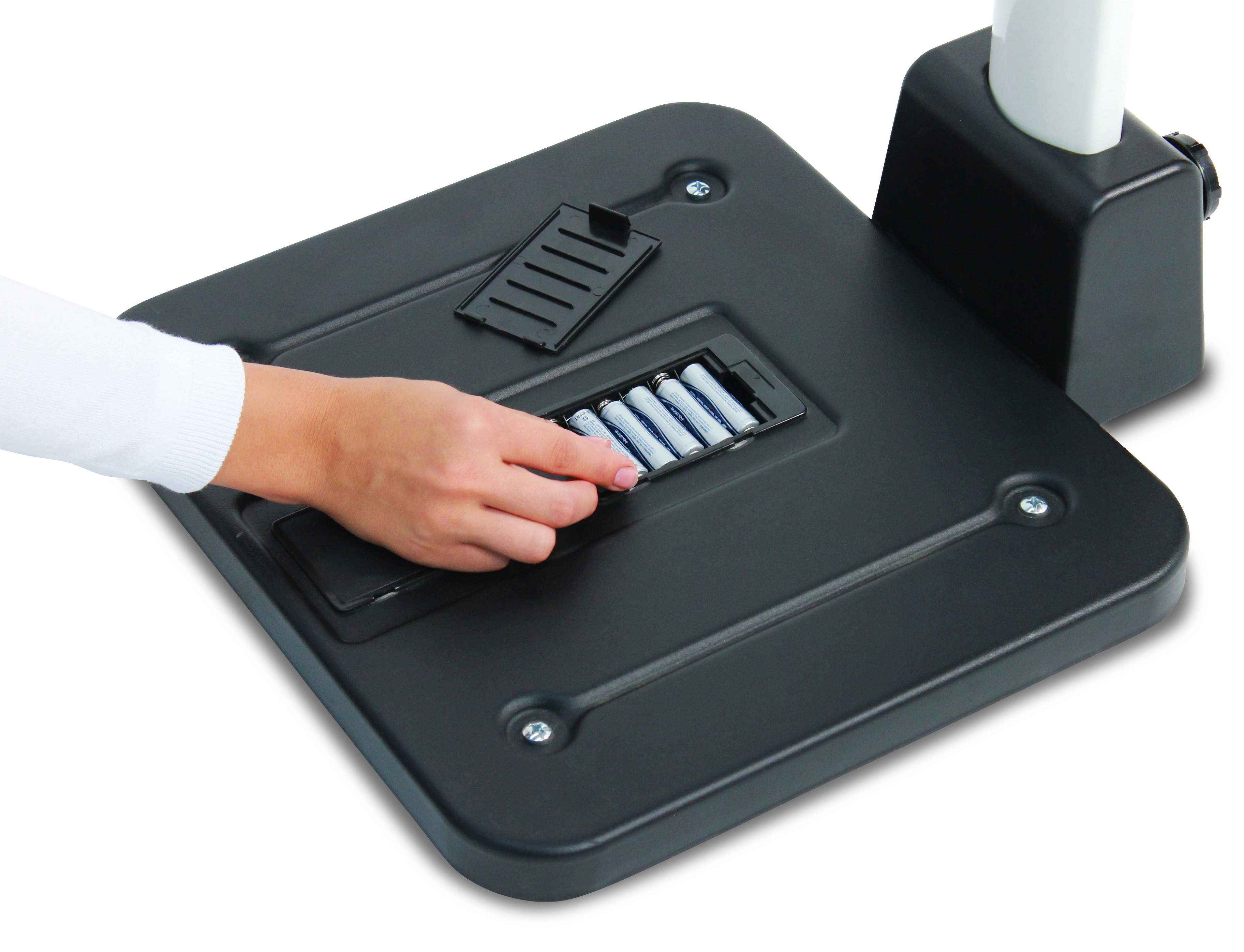

Power: AC adapter (included) or 12 AA batteries (not included)

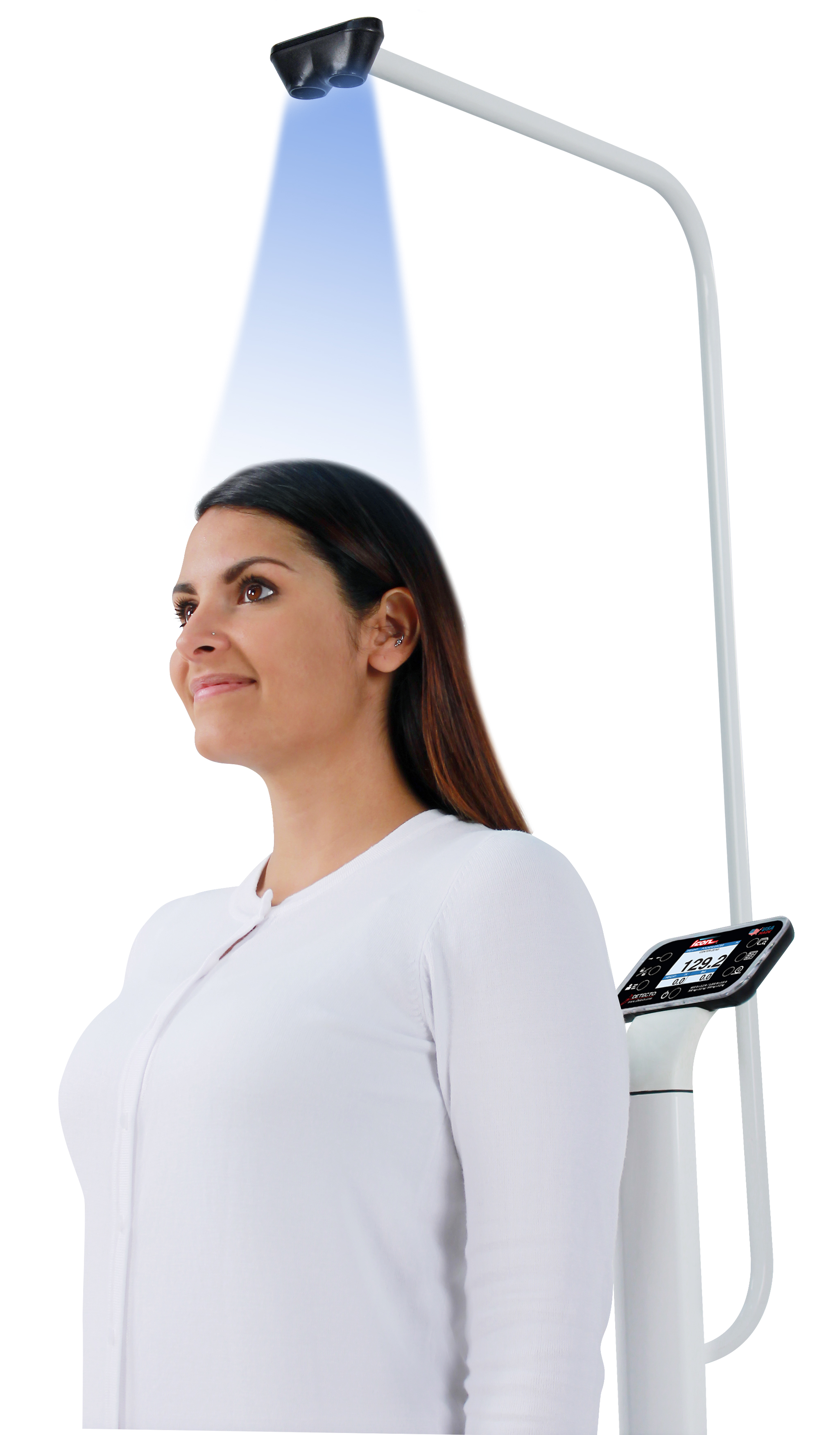

Height Rod Type: Sonar touchless height rod
Height Rod Measures: 24? (2?) – 86? (7?2?) x 0.2 in / 60 cm – 218 cm x 0.5 cm
Overall Dimensions: 17 in W x 18.5 in D x 89.5 in H / 43 cm W x 47 cm D x 227.3 cm H
Port: 1 USB-B port
Device Connectivity: HL7 IEEE 11073 compliant (standard); Welch Allyn device connectivity available on some models (CVSM, CSM, and LXI); Wi-Fi Ethernet models also available for wireless EMR/EHR
Net Weight: 22 lb / 10 kg
Shipping Weight: 31 lb / 14 kg
Shipping Dimensions: 58 in x 20 in x 6 in / 147 cm x 51 cm x 15 cm

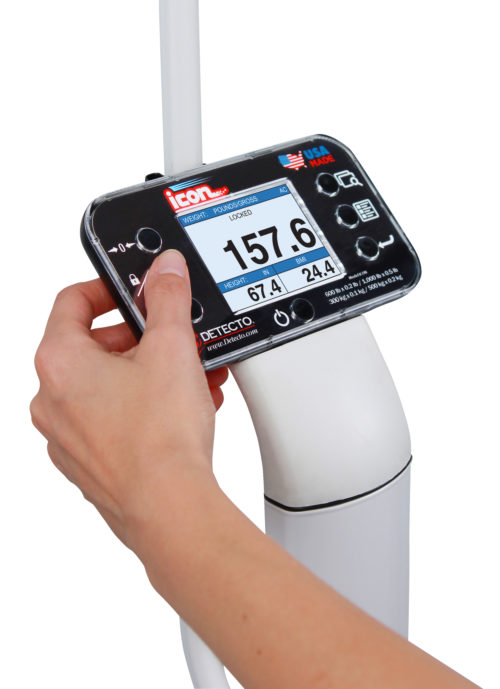

Keypad: Mechanical switch type with 7 buttons: Power, Zero, Lock/Release, ID, Cycle Display Mode, Menu, Print

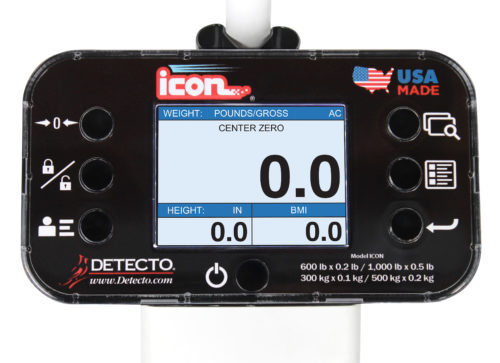

Display Type: 3.2 in (diagonal) full color TFT display 320×240 resolution
Number of Characters: Weight: 5 digit, 0.8 in (20 mm) high; Height: 4 digit, 0.35 in (9 mm) high; BMI: 3 digit, 0.35 in (9 mm) high
Country of Origin: USA
Operating Environment: Operated Temperature Range: 14 to 104 ?F (-10 to +40 ?C) / Humidity: 0 to 90% non-condensing
Digital Filtering: StableSENSE Adjustable Filtering
Features: Dual range weight, auto weight lock, 8-digit numeric patient ID, sonar height rod, 1 USB-B port

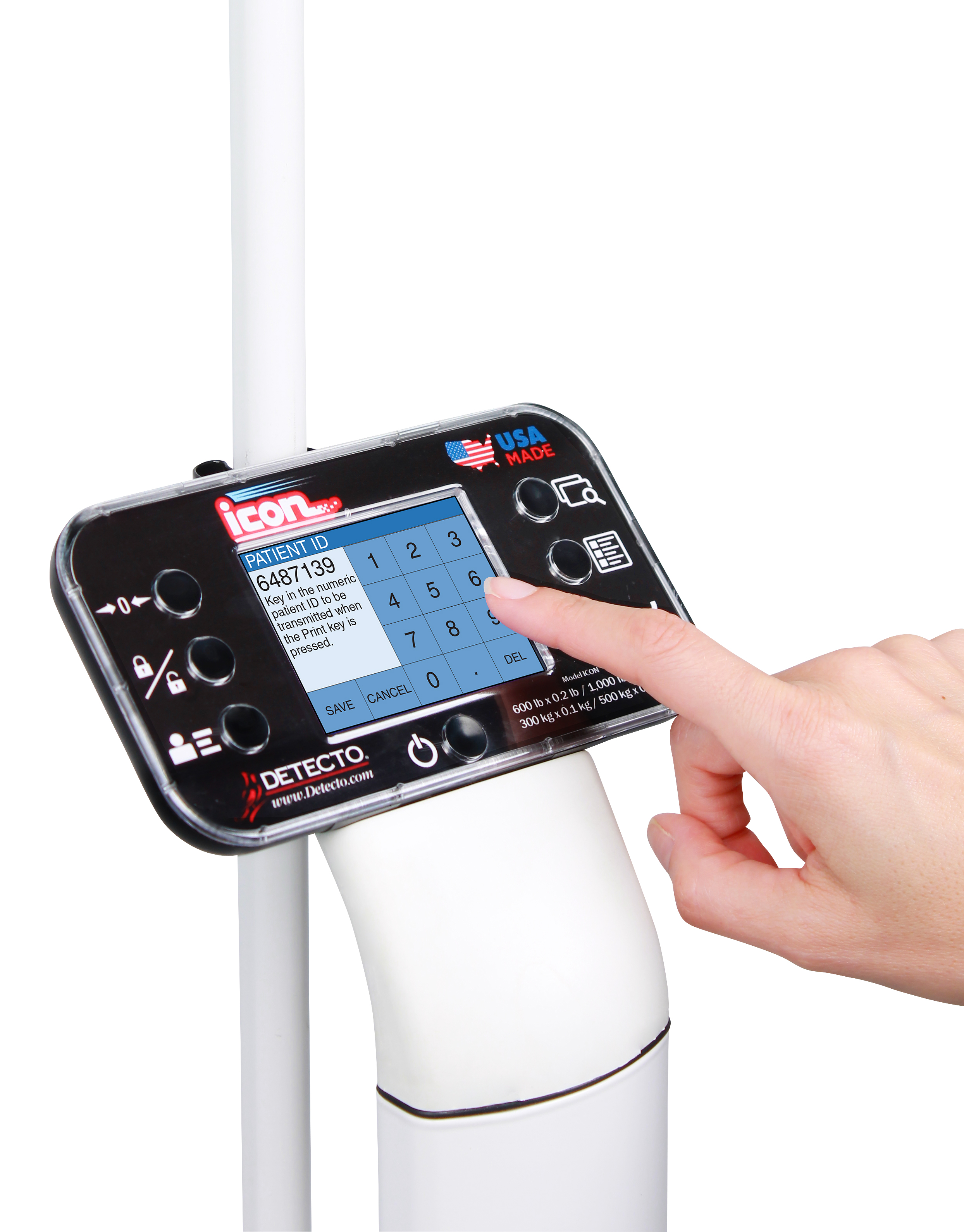

Touch Screen: Resistive touch panel covering the display

Models

ICON icon Digital Clinical Scale, Sonar Height Rod, 1000 lb / 500 kg Capacity
ICON-WI icon Digital Clinical Scale, Wi-Fi, Sonar Height Rod, Includes Non-Medical-Grade AC Adapter
ICON-UWA icon Digital Clinical Scale with Sonar Height Rod & Welch Allyn CVSM/CSM
ICON-LXI icon Digital Clinical Scale, Welch Allyn LXI Connectivity, AC Adapter, Sonar Height Rod
