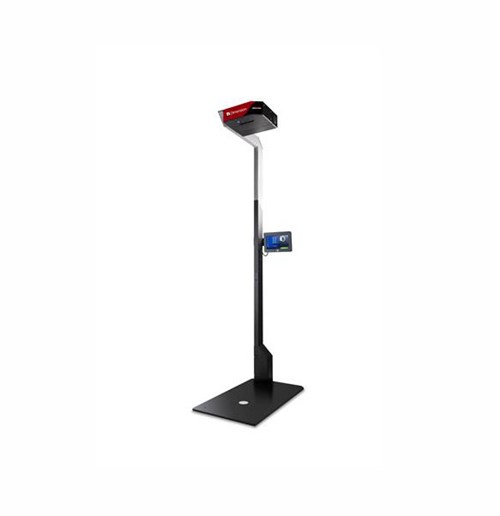

iDimension Plus/Plus XL Static Dimensioning System

$0.00

When it comes to calculating dimensions of boxes, flats, polybags and more, Rice Lake’s iDimension Plus is the fastest static tabletop solution on the market. The iDimension Plus helps prevent revenue loss by providing accurate dimensional weight calculations required by parcel and postal carriers. Put the iDimension Plus to use right away—simply open and assemble to instantly display dimensions.

Download product PDF
Category:

Features

  • iDim Plus package includes: Base plate, pole assembly, USB display, calibration object, US power cord, operating manual and assembly toolkit
  • iDim Plus XL package includes: iDimension Plus XL scanner head, 10 ft Ethernet cable, USB display, calibration object, US power cord and operating manual
  • Easy to assemble in 30 minutes or less
  • Displays dimensions in 0.2 seconds
  • No special package placement requirements
  • Capable to dimension opaque packaging
  • Measurement capabilities beyond Legal for Trade limits
  • Standard resolution color camera
  • High resolution color image, 2880 × 2160 pixels, available from iDimension Plus 4K

Options

  • iDimension SS (Software Suite) or iDimension Desktop Wedge programs for data integration
  • Powered USB hub for use of more than one peripheral
  • Wired or wireless USB barcode scanner
  • Rice Lake BenchPro shipping/postal scales
  • Rice Lake 680, 880, 1280 indicators available for automation applications

Specifications

Power Requirements:
110 to 240 VAC US power cord (included)

Communication Ports:
(1) USB A
(1) 10/100/1000 Base-T Ethernet

Display:
7 in (178 mm) touchscreen monitor

Accuracy:
Certified Legal for Trade at 0.2 in (5 mm) cuboidal shapes
Certified Legal for Trade at 0.5 in (10 mm) irregular shapes

Software Integration:
Simple API network integration through HTTP requests, status checking and XML parsing

Temperature Range:
Certified: 32 °F to 104 °F (0 °C to 40 °C)

Humidity:
Non-condensing

Warranty:
Two-year limited

Approvals:
NTEP 19-040
OIML T11908
CE
EU Mid
FCC
NMI
