Interface 3200 Stainless Steel, Compression Canister Load Cell

$0.00

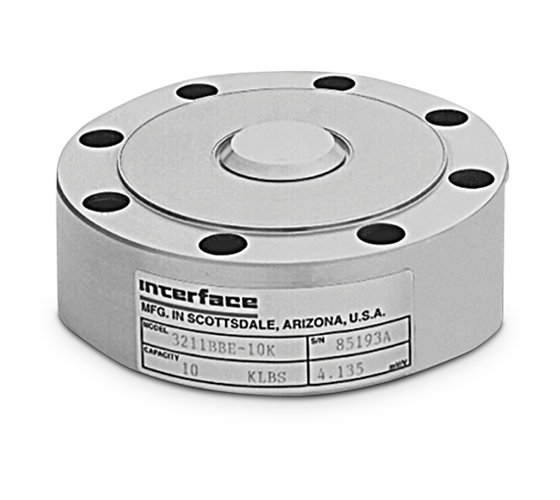

The 3200 Series stainless steel load cells are designed specifically for difficult applications in harsh environments. These units incorporate welded stainless steel diaphragms to resist corrosion and to seal against moisture intrusion. These load cells provide high accuracy, resistance to off-center loads with minimum error, excellent temperature specifications and low height envelope for ease of installation. Capacities range from 5,000 lb to 100,000 lb (2,268.0 kg to 45,359.2 kg). Complete with 20 ft (6.1 m) of load cell cable.

Download product PDF

Specifications

Full Scale Output:
4.0 mV/V

Bridge Resistance:
350 ohms, nominal

Material/Finish:
Stainless steel

Temperature:
Operating range
0°F to 150°F (-18°C to 65°C)

Seal Type:
Hermetically sealed, IP66/68

Safe Overload:
150% full scale

Rated Excitation:
5-10 VDC (20 V maximum)

Nonlinearity:
0.05% full scale

Hysteresis:
0.04% Full scale

Insulation Resistance:
5,000 megohms

Cable Length:
20ft (6.1m)

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal

Warranty:
Two-year limited warranty

Models

36140 Load Cell,CDK 3211-BBE-5k Low Profile SST HS 5000lb 20ft Interface 4mV/V 350 OHM IP66/68
36141 Load Cell,CDK 3211BBE-10k Low Profile SST HS 10,000lb 20ft Interface 4mV/V 350 OHM IP66/68
36142 Load Cell,CDK3221-BBE-25k Low Profile SST HS 25,000lb 20ft Interface 4mV/V 350 OHM IP66/68
36143 Load Cell,CDK3221-BBE-50k Low Profile SST HS 50,000lb 20ft Interface 4mV/V 350 OHM IP66/68
36144 Load Cell,CDK 3231-BBE- 100k Low Profile SST HS 100,000lb 20ft Interface 4mV/V 350 OHM IP66/68
