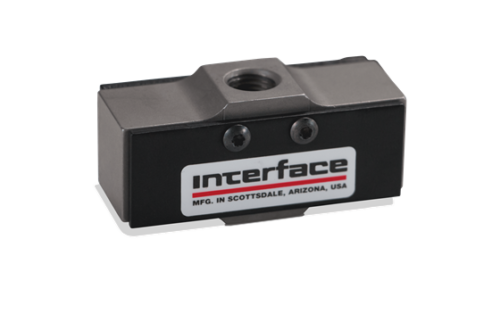

Interface SML Tension/Compression Low-Height Load Cell

$0.00

A low height load cell designed for tension and compression. Constructed of anodized aluminum 5 lb to 300 lb or stainless steel 500 lb to 2,000 lb with 5 ft of integral cable.

Download product PDF
Categories: ,

Models

185097 Sensor,Interface SML-5 5lb 5ft Stainless Steel 2mv/v 350 Ohm T/C
185098 Sensor,Interface SML-10 10lb 5ft Stainless Steel 2mv/v 350 Ohm T/C
185099 Sensor,Interface SML-25 25lb 5ft Stainless Steel 2mv/v 350 Ohm T/C
185100 Sensor,Interface SML-50 50lb 5ft Stainless Steel 2mv/v 350 Ohm T/C
185101 Sensor,Interface SML-100 100lb 5ft Stainless Steel 2mv/v 350 Ohm T/C
85102 Sensor,Interface SML-200 200lb 5ft Stainless Steel 2mv/v 350 Ohm T/C
185103 Sensor,Interface SML-300 300lb 5ft Stainless Steel 2mv/v 350 Ohm T/C
185104 Sensor,Interface SML-500 500lb 5ft Stainless Steel 2mv/v 350 Ohm T/C
185105 Sensor,Interface SML-1000 1000lb 5ft Stainless Steel 2mv/v 350 Ohm T/C
185106 Sensor,Interface SML-2000 2000lb 5ft Stainless Steel 2mv/v 350 Ohm T/C
