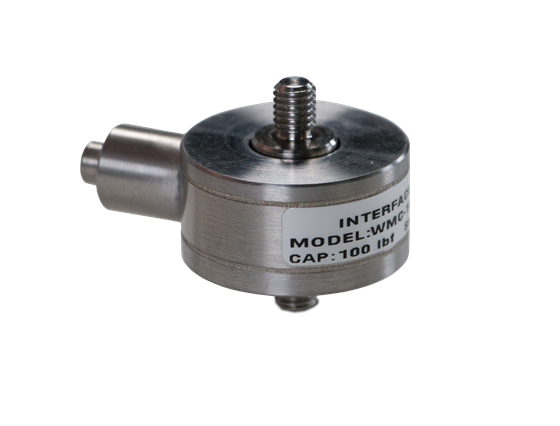

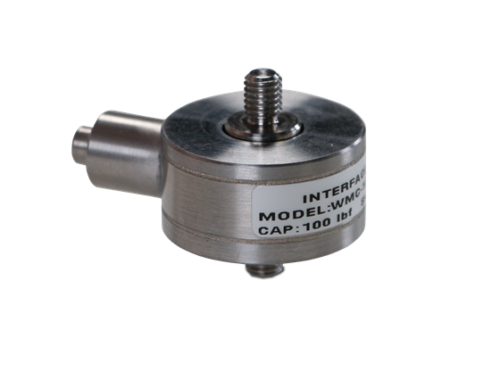

Interface WMC Miniature Sealed Tension/Compression Load Cell

$0.00

The WMC Miniature Sealed load cell completes the WMC line with this low capacity, low profile load cell with 5 ft of integral cable.

Download product PDF

Specifications

Full Scale Output:
2.0 mV/V

Bridge Resistance:
350 ohms, nominal

Material/Finish:
Stainless steel

Temperature:
Operating range
-65° F to 250° F

Safe Overload:
150% full scale

Rated Excitation:
12 VDC

Nonlinearity:
± 0.15% full scale (5-500lb)
± 0.20% full scale (1-10K)

Hysteresis:
± 0.15% full scale (5-500lb)
± 0.20% full scale (1-10K)

Insulation Resistance:
> 5,000 megohms

Cable Length:
5 ft (1.5 m)

Cable Color Code:
Red +Excitation
Black –Excitation
White +Signal
Green –Signal

Warranty:
One-year limited warranty

Models

185090 Sensor,Interface WMC-5 5lb 5ft Stainless Steel 2mv/v 350 Ohm T/C
185091 Sensor,Interface WMC-10 10lb 5ft Stainless Steel 2mv/v 350 Ohm T/C
185092 Sensor,Interface WMC-25 25lb 5ft Stainless Steel 2mv/v 350 Ohm T/C
185093 Sensor,Interface WMC-50 50lb 5ft Stainless Steel 2mv/v 350 Ohm T/C
185094 Sensor,Interface WMC-100 100lb 5ft Stainless Steel 2mv/v 350 Ohm T/C
185095 Sensor,Interface WMC-250 250lb 5ft Stainless Steel 2mv/v 350 Ohm T/C
185096 Sensor,Interface WMC-500 500lb 5ft Stainless Steel 2mv/v 350 Ohm T/C
185084 Sensor,Interface WMC-1000 1000lb 5ft Stainless Steel 2mv/v 350 Ohm T/C
185085 Sensor,Interface WMC-2000 2000lb 5ft Stainless Steel 2mv/v 350 Ohm T/C
185086 Sensor,Interface WMC-3000 3000lb 5ft Stainless Steel 2mv/v 350 Ohm T/C
185087 Sensor,Interface WMC-5000 5000lb 5ft Stainless Steel 2mv/v 350 Ohm T/C
185088 Sensor,Interface WMC-7500 7500lb 5ft Stainless Steel 2mv/v 350 Ohm T/C
185089 Sensor,Interface WMC-10K 10,000lb 5ft Stainless Steel 2mv/v 350 Ohm T/C
